Mercedes A0025451128 - ГИЛЬЗА

3240 - 3243 950.306

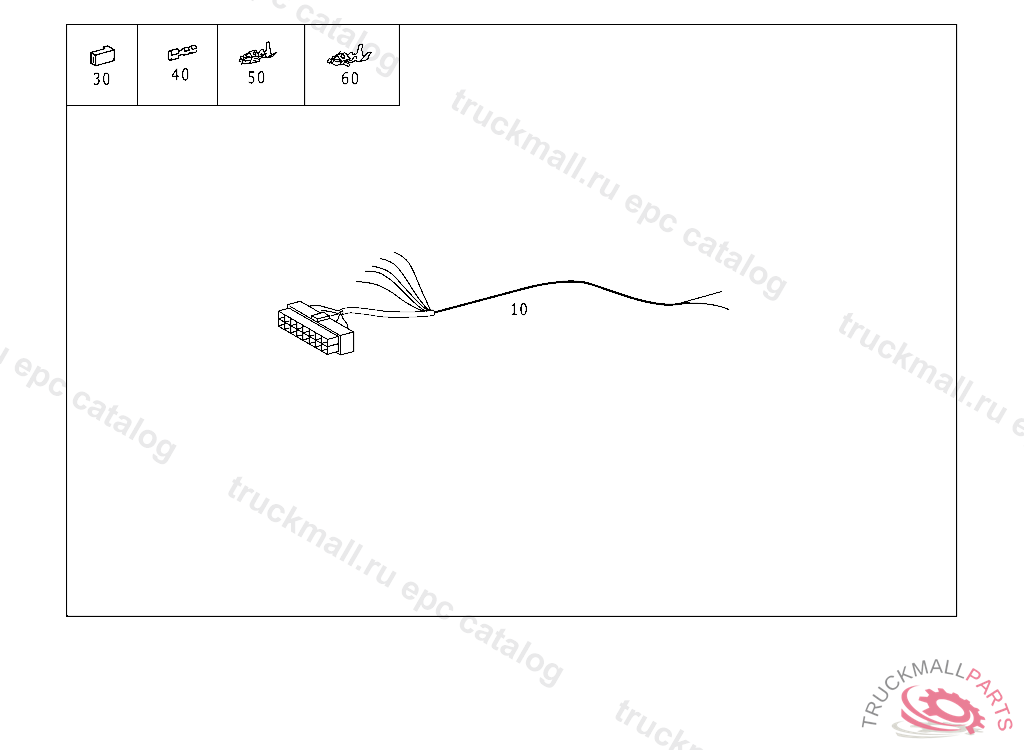

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 INSTRUMENT CLUSTER

Поз.
Артикул
Описание
10
A6625403727
ELECTRIC CABLE
30
A0025451128
PIN BUSHING HOUSING UNIPOLAR
40
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
50
A0045455226
CONTACT SPRING1-2.5 MM2
50
A0115458026
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
60
A0045455326
FLAT PIN BUSHING
999
A6625420192
CONNECTOR LINE CONNECTION
999
A6625405827
ELECTRIC CABLE
999
A6625400148
INSTRUMENT CLUSTER
999
A0265459428
PLUG HOUSING PLUG CONNECTION,WIRING HARNESS FOR DRIVER + CO-DRIV. DOOR/INSTR. SUPPORT X22,X23, 18PIN
999
A0175456026
SOCKET HOUSING. PIN BUSHING HOUSING 9-POLE
