2640 LK - 2657 LK
952.241
31 FRAME
001 DETACHABLE BODY COMP. & INSTALLATION PARTS, LEADING AND TRAILING AXLES IL.18

Mercedes N000000001571 - БОЛТ М10

2640 LK - 2657 LK 952.241

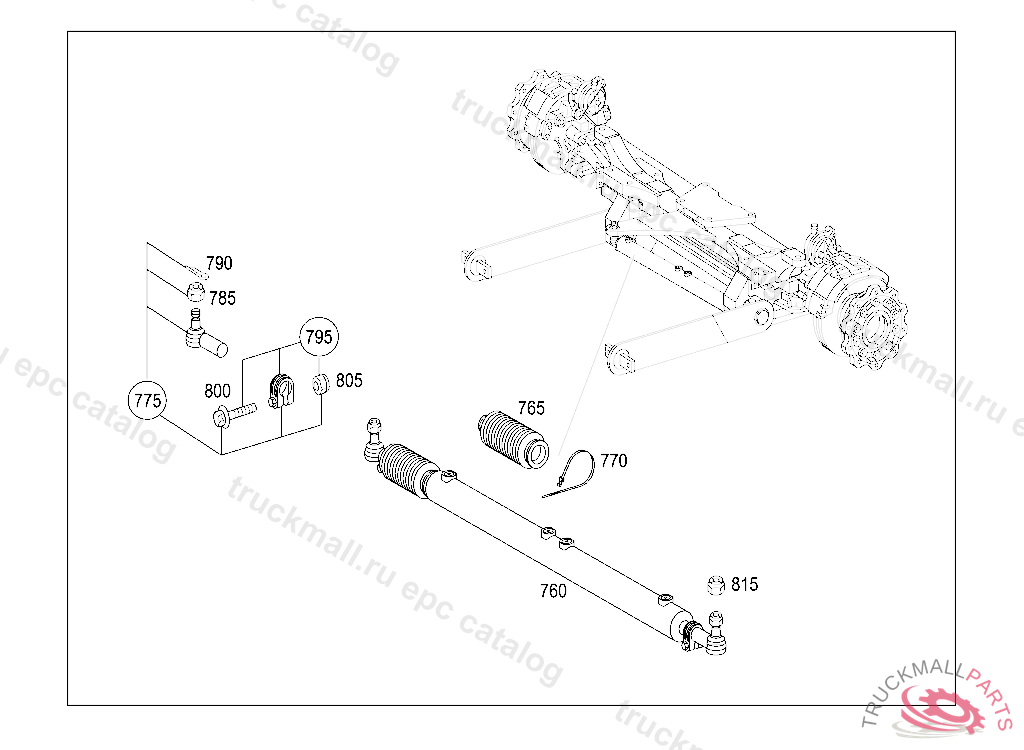

31 FRAME - 001 DETACHABLE BODY COMP. & INSTALLATION PARTS, LEADING AND TRAILING AXLES IL.18

Поз.
Артикул
Описание
760
A6294660192
CYLINDER (POWER CYLINDER) TRAILING AXLE
765
A0004632396
BOOT POWER CYLINDER
770
A0059971090
LOOM TIE BOOT 295X3.6MM
775
A0014607048
DRAG LINK END SHORT 80 MM
775
A0014606948
DRAG LINK END LONG 90MM
785
N000935024000
NUT CYLINDER TO BEARING BRACKET AND PITMAN ARM M24X1.5
790
N000094005045
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
795
A0004660677
CLAMP DRAG LINK END
800
N000000001571
HEXALOBULAR BOLT CLAMP MOUNTING M10X55
805
N304032010003
NUT BATTERY CABLE
815
A0019905451
NUT DRAG LINK END M 24X1.5
999
QP1500000004
DRAG LINK END WITH INTERNAL THREAD M26, TO BE ORDERED ONLY FROM MESSRS FA.PAUL-NUTZFAHRZEUGE GMBH&CO.KGD-94036 PASSAU DANZIGERSTRASSE 49
999
A0004600635
BRACKET POWER STEERING CYLINDER
