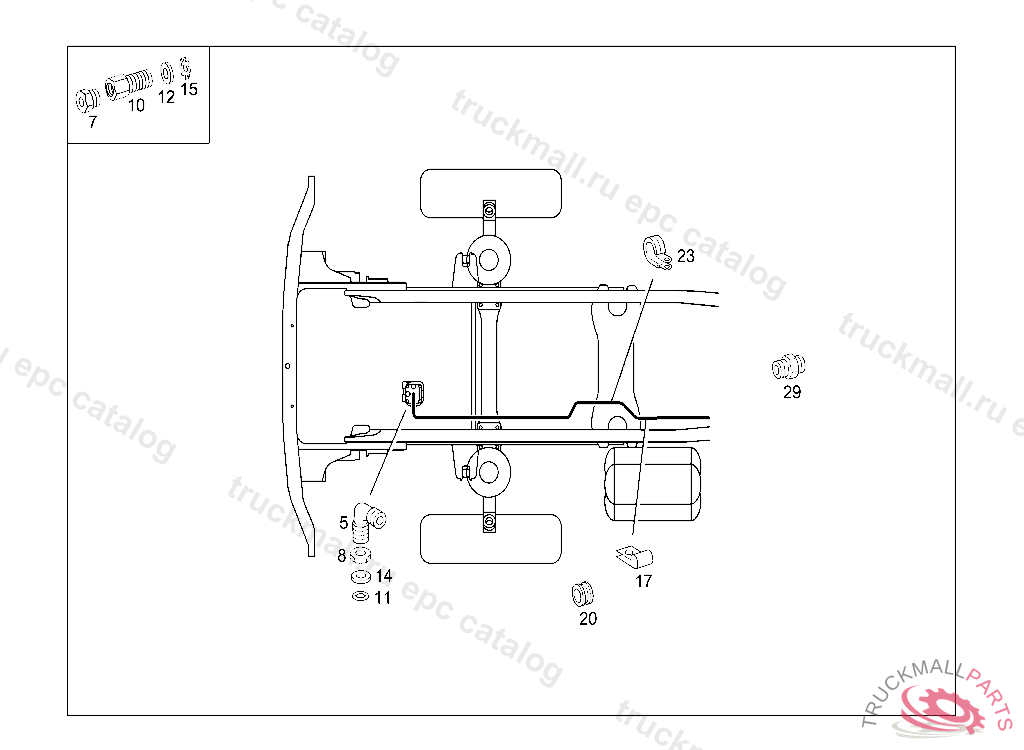

Поз.
Артикул
Описание
5
ELBOW FITTING , Replaced By: A0039901671
5
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
7
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
8
NUT SUCTION LINE TO OIL PUMP
10
ADAPTER FITTING LINE CONNECTION TO ENGINE
11
SEAL RING LINE CONNECTION
12
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
14
THRUST RING SUCTION LINE TO OIL PUMP
15
TOOTHED WASHER SENDER UNIT TO BRACKET
17
CLAMP LINE MOUNTING
18
NUT BRACKET TO SIDE MEMBER
20
GROMMET LINE MOUNTING
23
CLAMP , Replaced By: A6739950001
23
CLAMP DELIVERY AND SUCTION LINES TO STEERING
29
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
29
FITTING RETURN LINE CONNECTION,225538
29
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
