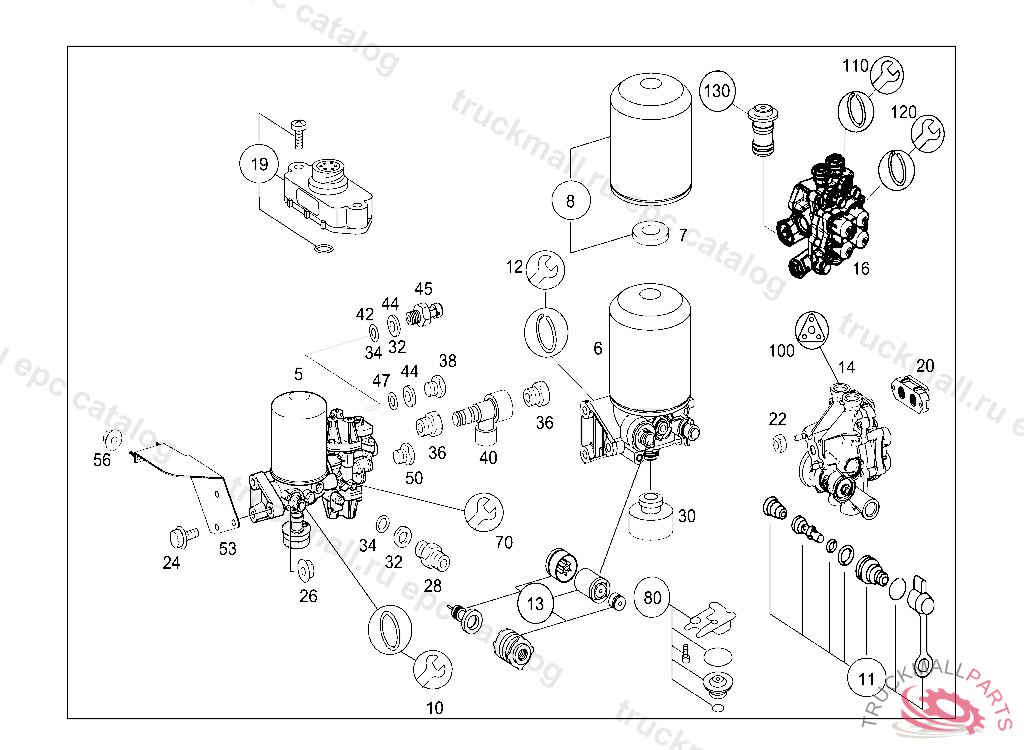

Поз.
Артикул
Описание
5
VALVE. ANTI-FREEZE DEVICE VALVE CLUSTERKNORR,D 625031
5
5
5
5
6
AIR DEHYDRATOR
6
7
SEAL RING PNEUMATIC VALVE
8
REPAIR KIT. AIR CLEANERTO 693 420 75 71
8
AIR CLEANER WITH OIL SEPARATOR KNORR
10
GASKET KIT REPAIR KIT TO A 664 431 01 15 KNORR
11
REPAIR KITTO A 664 431 01 15 KNORR
12
REPAIR KIT WITH PRESSURE SPRINGS TO A 664 431 01 15 KNORR
13
REPAIR KIT BETWEEN SPRING AND PLUNGER TO A 664 431 01 15 KNORR
14
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
16
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR,D 521240
19
PRESSURE SENDER UNIT. PRESSURE REGULATORKNORR, Replaced By: A0015429218
20
PRESSURE REGULATOR AT FOUR-CIRCUIT PROTECTIVE VALVE KNORR
22
NUT
24
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
24
HEXAGON HEAD BOLT SHOCK ABSORBER TO CONSOLE,BOTTOM M12X1.5X80
24
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
24
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
24
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
26
NUT BRACKET TO SIDE MEMBER M12X1.5
28
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
30
MUFFLER VALVE CENTRE TO 693 420 75 71
32
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
32
THRUST RING CHECK VALVE TO AIR RESERVOIR
34
O-RING CHECK VALVE TO AIR RESERVOIR
36
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
36
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
36
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
38
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
38
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
40
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
42
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
44
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
45
SENDER UNIT FOUR-CIRCUIT PROTECTIVE VALVE
47
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
50
SCREW PLUG AIR RESERVOIR
53
56
NUT BRACKET TO SIDE MEMBER M12X1.5
70
REPAIR KIT VALVE TO 695 420 75 71
80
ANTI-FREEZE DEVICETO A 664 431 01 15 KNORR
100
VALVE REPAIR KIT KNORR
110
RS PROTECTION VALVE
120
RS PROTECTION VALVE INTERMEDIATE CASE KNORR
130
RS PROTECTION VALVE PISTON KNORR
999
VALVE SEAT
