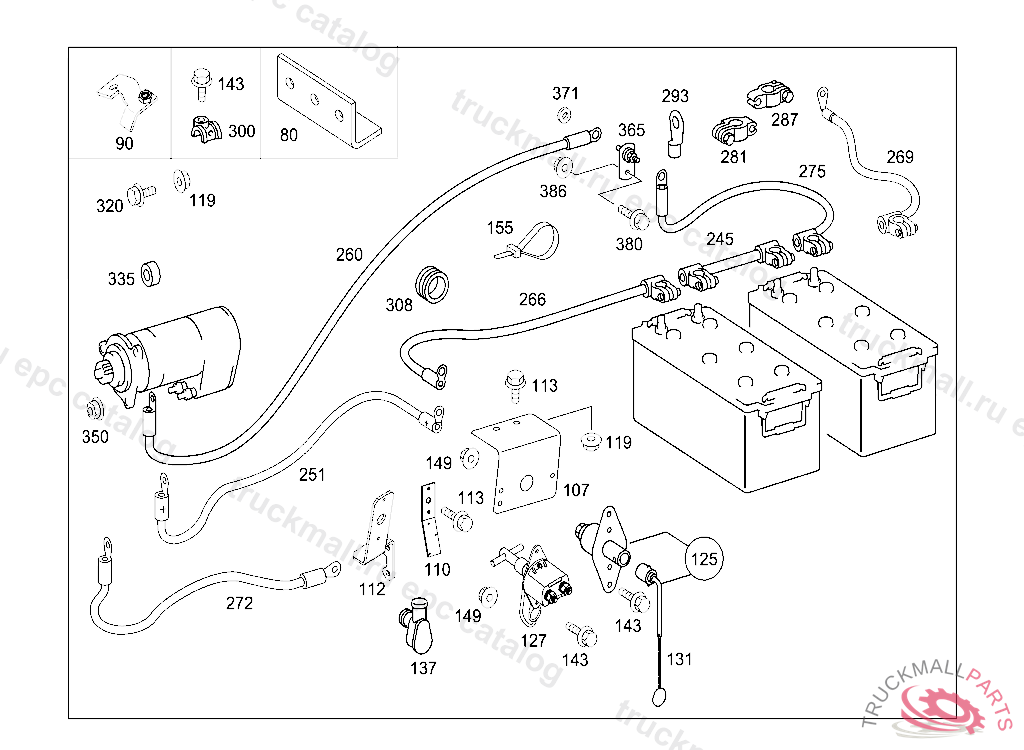

Поз.
Артикул
Описание
90
BRACKET BATTERY CABLE "-",V 207570
107
110
112
113
SCREW BRACKET TO CAB REAR PANEL M 8X20
113
SCREW , Replaced By: N910143008002
113
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
113
SCREW , Replaced By: N914146006102
119
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
119
NUT BATTERY,XB209706
119
NUT HORN TO BRACKET M8
125
SWITCH BATTERY CUT-OFF
125
SWITCH BATTERY CUT-OFF
127
131
KEY
137
COVERING BATTERY CUT-OFF,D 262514
143
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
143
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
143
SCREW BRACKET AND CLAMP M6X20
149
NUT BRACKET TO FIRE WALL
149
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
155
LOOM TIE LINE MOUNTING 280 MM
155
CABLE TIE310X5MM
155
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
245
245
POSITIVE CABLE FROM BATTERY I TO BATTERY II
245
251
260
266
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
266
269
269
NEG. CABLE FROM BATTERY TO FRAME
275
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
281
SOLDERING TERMINAL POS. POLE
287
SOLDERING TERMINAL POS. POLE
293
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
300
CLAMP CABLE HARNESS TO BRACKET
308
GROMMET FOR PASSAGE OF LINE 35X8 MM
320
SCREW BRACKET AND CLAMP M6X20
320
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
335
WASHER BRACKET TO CAB REAR PANEL
350
NUT BRACKET TO SIDE MEMBER
350
NUT BRACKET TO SIDE MEMBER M12X1.5
350
NUT , Replaced By: N913023010002
350
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
350
NUT , Replaced By: N913023006001
350
NUT RELAY TO BRACKET M5
350
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
350
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
365
CONNECTOR GROUND CABLE TO BATTERY FRAME
371
WASHER
371
WASHER RADIATOR TO RUBBER MOUNTING
380
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
386
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
386
NUT BRACKET TO FIRE WALL
