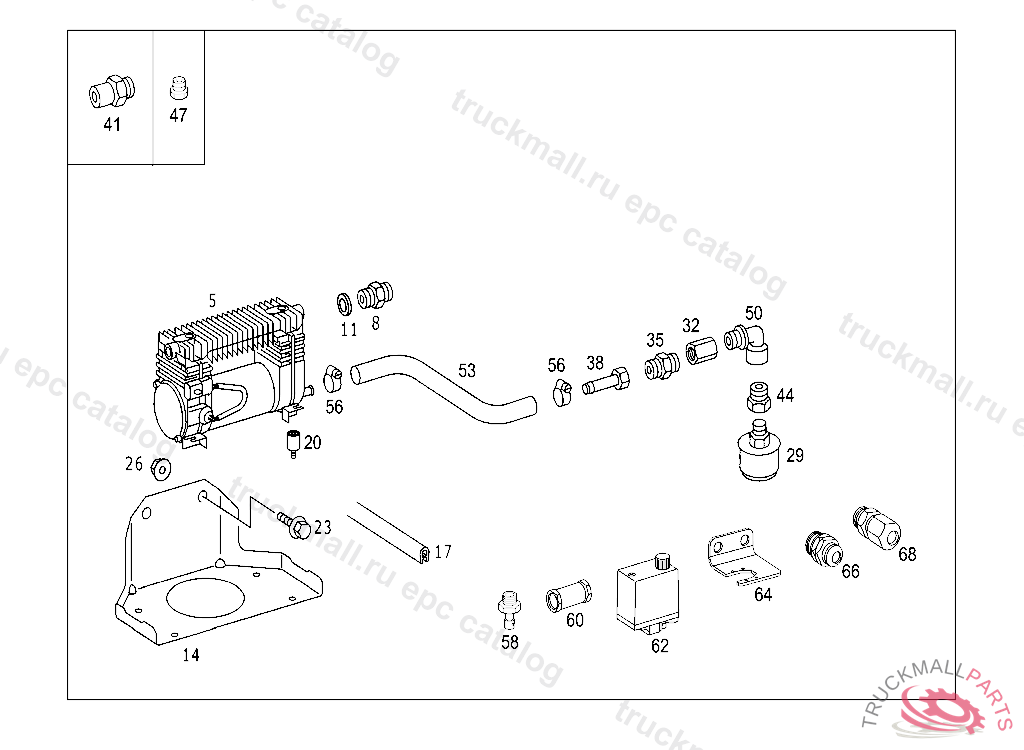

Поз.
Артикул
Описание
5
AIR COMPRESSOR ELECTRIC BOSCH24V
8
FITTING LINE CONNECTION
8
FITTING LINE CONNECTION, Replaced By: N000000006446
11
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
14
BRACKET AIR COMPRESSOR
17
EDGE GUARD SECTION AT TANK 1000 MM, ORDER BY THE METER5 3506525 495522
20
BUFFER AIR COMPRESSOR TO BRACKET
23
SCREW COVER PLATE TO COVER PLATE M 6 X 12
26
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
29
FILTER AIR COMPRESSOR
32
T-FITTING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
35
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
38
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
41
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
44
FITTING BRAKE LINE COUPLING TO BRACKET
44
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
44
BLIND PLUG , Replaced By: A0009904468
47
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
50
ELBOW FITTING LINE CONNECTION
50
FITTING LINE CONNECTION
53
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
56
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
58
VALVE. DRAIN VALVE DRAIN
60
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
60
NON-RETURN VALVE CHECK VALVE
62
VALVE PRESSURE SWITCH
64
BRACKET VALVE TO FRAME
66
CONNECTOR LINE CONNECTION
68
CABLE GUIDE MOUNTING PARTS
999
ELECTRIC CABLE PSM ELECTRONICS 2X2.5MM, ORDER BY THE METER
