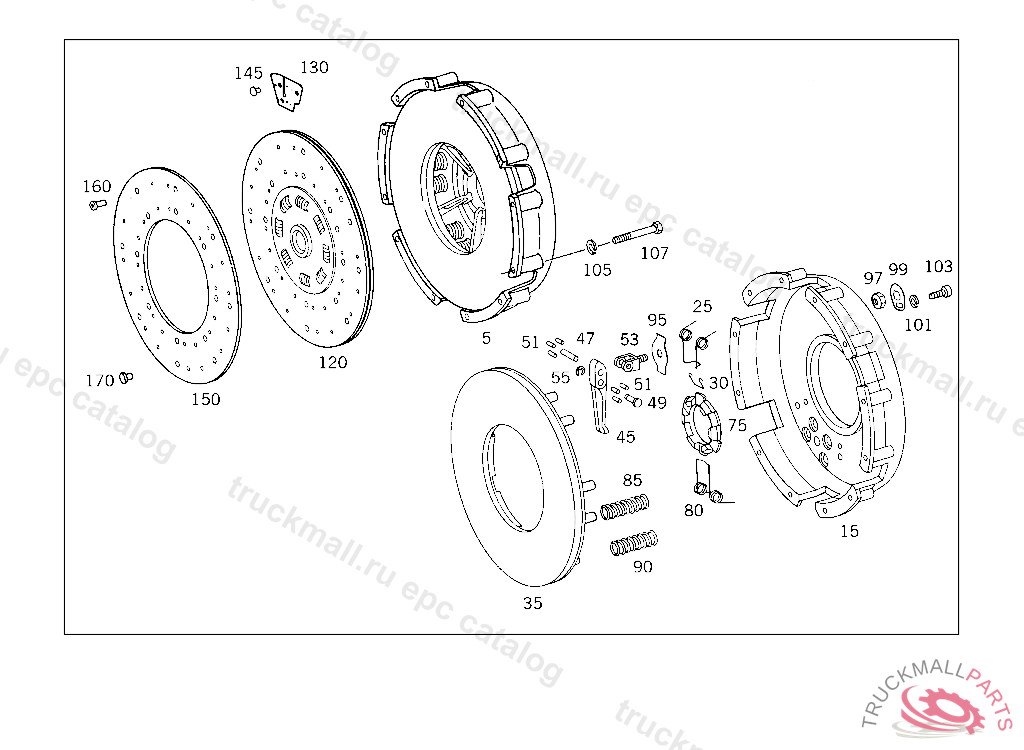

Поз.
Артикул
Описание
25
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
25
SPRING SUSPENDED BELOW LEAF SPRING
30
CLAMP , Replaced By: A0002523227
30
CLAMP RELEASE FLANGE TO RELEASE LEVER
45
RELEASE LEVER CLUTCH ACTUATION
47
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
47
SPINDLE RELEASE LEVER,CLUTCH PRESSURE PLATE
49
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
49
SPINDLE , Replaced By: A0002522816, +001A1249945241
49
SPINDLE FOR BRACKETS
51
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
53
BRACKET RELEASE LEVER
53
BRACKET FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
55
LOCK PLATE RELEASE LEVER TO SHAFT
55
LOCK PLATE LEVER TO BRACKET
75
FLANGE CLUTCH PRESSURE PLATE
75
FLANGE , Replaced By: A0002521245
80
SPRING , Replaced By: A0002523227
80
SPRING SUSPENDED BELOW LEAF SPRING
80
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
85
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
90
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
95
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
95
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
97
NUT , Replaced By: A0002523072
97
NUT FOR BRACKETS
99
LOCK FOR BRACKETS
101
LOCK WASHER BRACKET TO STEERING COLUMN END
103
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
103
SCREW RELEASE LEVER,BRACKET
105
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
145
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
145
RIVET , Replaced By: A0002522075
145
RIVET LEAF SPRING TO CLUTCH DISC
999
HOUSING
999
PIN CLUTCH SLAVE CYLINDER
999
BOOT , Replaced By: A0005863129
999
BALL PIVOT CLUTCH ACTUATION,4 601609
999
COVER RELEASE SHAFT,TOP
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
SECURING CLIP CLUTCH SLAVE CYLINDER TO LEVER,4 601609
