Поз.
Артикул
Описание

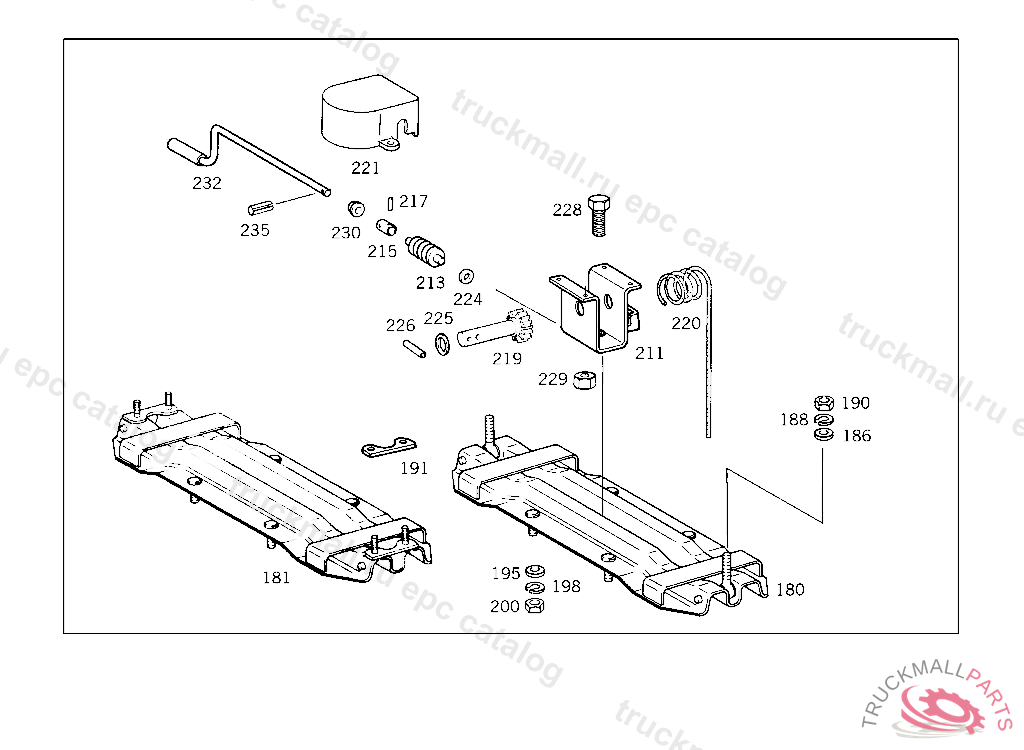

180
BRACKET SPARE WHEEL CARRIER,4 179002-4 369654
180
BRACKET , Replaced By: A3874001639
181
BRACKET SPARE WHEEL CARRIER,4 613857
181
BRACKET , FROM CHASSIS 4 369655-4 613856, Replaced By: A3874003939, +004N000934020001, +004N007349021000, +004N912004020100
186
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
188
LOCK WASHERROCKINGER TYP 59 G140,59 G150
188
LOCK WASHERROCKINGER TYP 59 G140,59 G150
190
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
190
NUT , Replaced By: N308673016001
191
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
195
WASHER SPARE WHEEL TO BRACKET
195
WASHER BRACKET TO SPARE WHEEL CARRIER
195
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
198
LOCK WASHER SPARE WHEEL TO BRACKET
198
LOCK WASHER BELL HOUSING TO TRANSMISSION
198
LOCK WASHERROCKINGER TYP 59 G140,59 G150
200
NUT REAR SPRING TO REAR AXLE
200
NUT , Replaced By: N308674020000
200
NUT , Replaced By: N308673020002
200
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
200
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
200
NUT , Replaced By: N308673016001
211
SPARE WHEEL HOIST
211
BRACKET , Replaced By: A3834000639
211
BRACKET , Replaced By: A3834000639
211
SPARE WHEEL HOIST , Replaced By: A3834000639
213
WORM
213
WORM ,5 127459, Replaced By: A6204030085, +001A6204030683
219
STOP GEAR ,5 127460
219
STOP GEAR ,5 127459, Replaced By: A6204030383, +001A6204030085
220
WIRE CABLE
220
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
221
COVERING PROTECTION PLATE TO BRACKET
224
WASHER WORM AND SHAFT TO BRACKET
225
WASHER WORM AND SHAFT TO BRACKET
226
CLAMPING PIN BRACKET TO SUPPORT
226
CLAMPING SLEEVE , Replaced By: N308752008000
228
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
229
NUT STRAP TO BRACKET
229
NUT , Replaced By: N910113010000
230
BUSHING CRANK
232
CRANK SPARE WHEEL HOIST
232
CRANK , Replaced By: A3814030045
235
CLAMPING SLEEVE CRANK TO BUSHING
999
NUT VALVE TO DISC WHEEL
999
VALVE , Replaced By: A0004017113
999
VALVE , Replaced By: A0014010613
999
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004013213
999
RIVET , Replaced By: N910005012020
999
PIN ,4 179002-4 369654
999
CABLE , Replaced By: N083331008500
999
VALVE EXTENSION
999
VALVE EXTENSION
999
SCREW , Replaced By: A6519900023
999
SUPPORT SPARE WHEEL HOIST,4 179002-4 369654
999
PIN AT BRACKET
999
SUPPORT SPARE WHEEL HOIST
999
VALVE , Replaced By: A3854010013
999
VALVE , Replaced By: A3854010013
999
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
999
COTTER PIN STRAP TO CONSOLE
999
WASHER
999
WASHER ,4 179002-4 369654
999
EYEBOLT , FROM CHASSIS 4 369655-4 613856
999
EYEBOLT ,4 179002-4 369654
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008027
999
NUT ,4 179002-4 369654
999
SCREW CONSOLE TO SIDE MEMBER
999
DISC SPRING WORM AND SHAFT TO BRACKET
999
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
999
VALVE CAP
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
RIVET REAR CROSS MEMBER 12X42 MM
999
NUT SUPPORT TO SIDE MEMBER
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
