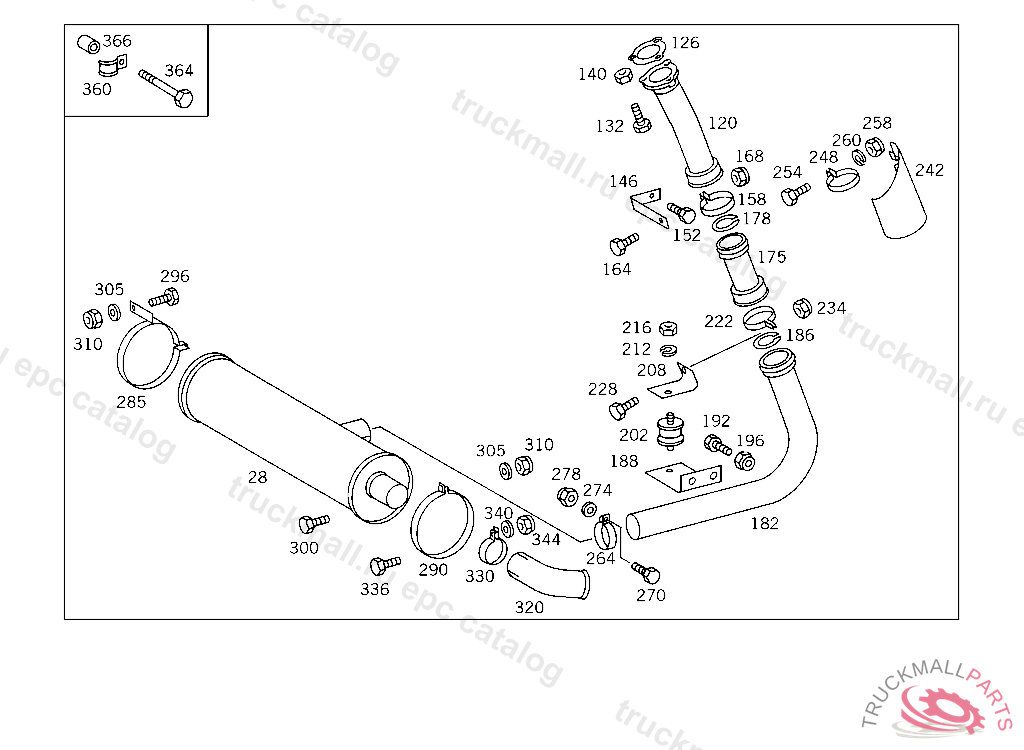

Поз.
Артикул
Описание
28
EXHAUST MUFFLER EXHAUST OUTLET,LEFT
28
EXHAUST MUFFLER EXHAUST OUTLET,RIGHT
120
EXHAUST PIPE AT ENGINE
126
FLANGE GASKET , Replaced By: A6004920080
126
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
132
SCREW CONNECTOR TO EXHAUST MANIFOLD
140
NUT CONNECTOR TO EXHAUST MANIFOLD
146
BRACKET EXHAUST PIPE, NOT USED
152
SCREW BRACKET TO CROSS CONNECTION STRUT
152
SCREW , Replaced By: N304017008034
158
CLAMP , Replaced By: N071555100501
158
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
164
SCREW REAR EXHAUST PIPE TO MUFFLER
168
NUT , Replaced By: N910113010000
168
NUT STRAP TO BRACKET
175
CONNECTOR EXHAUST PIPE TO EXHAUST PIPE
178
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
182
EXHAUST PIPE FRONT,FOR MUFFLER
186
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
188
BRACKET FRONT EXHAUST PIPE
192
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
196
NUT SUPPORT TO SIDE MEMBER
202
RUBBER MOUNTING
208
BRACKET FRONT EXHAUST PIPE
212
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
216
NUT BRACKET TO SUPPORT AND TO END PIECE
222
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
222
CLAMP , Replaced By: N071555100501
228
SCREW REAR EXHAUST PIPE TO MUFFLER
234
NUT , Replaced By: N910113010000
234
NUT STRAP TO BRACKET
242
PROTECTIVE PLATE , Replaced By: A3464920430
242
PROTECTIVE PLATE FRONT EXHAUST PIPE
248
CLAMP , Replaced By: N071555100501
248
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
254
SCREW BRACKET TO SIDE MEMBER
254
SCREW PROTECTIVE PLATE TO EXHAUST PIPE M 8X16,TO 346 495 04 30
254
SCREW , Replaced By: N304017010002
258
NUT STRAP TO BRACKET
258
NUT , Replaced By: N910113010000
260
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
264
CLAMP ATTACHMENT FOR CHARGE AIR PIPE,HOT
264
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
270
SCREW , Replaced By: N304017010002
270
SCREW BRACKET TO SIDE MEMBER
274
WASHER , Replaced By: N000125010532
274
WASHER RADIATOR TO RUBBER MOUNTING
278
NUT , Replaced By: N910113010000
278
NUT STRAP TO BRACKET
285
CLAMP EXHAUST MUFFLER SUSPENSION
290
BRACKET EXHAUST MUFFLER SUSPENSION
290
CLAMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3184910041
290
CLAMP , Replaced By: A3184900041
296
SCREW BRACKET TO SIDE MEMBER
296
SCREW , Replaced By: N304017010002
296
SCREW REAR EXHAUST PIPE TO MUFFLER
300
SCREW END PIECE TO EXHAUST PIPE M 10X25
305
WASHER , Replaced By: N000125010532
305
WASHER RADIATOR TO RUBBER MOUNTING
310
NUT STRAP TO BRACKET
310
NUT , Replaced By: N910113010000
320
FRONT EXHAUST PIPE
320
REAR EXHAUST PIPE EXHAUST OUTLET
320
REAR EXHAUST PIPE EXHAUST OUTLET
320
END PIECE EXHAUST OUTLET
330
CLAMP , Replaced By: N071555100501
330
CLAMP INTERMEDIATE PIECE
330
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
336
SCREW BRACKET TO SIDE MEMBER
336
SCREW , Replaced By: N304017010002
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER , Replaced By: N000125010532
344
NUT , Replaced By: N910113010000
344
NUT STRAP TO BRACKET
360
CLAMP , Replaced By: A3449957120
364
SCREW BRACKET TO FRAME SIDE MEMBER
364
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
366
SPACER TUBE COMPRESSED AIR LINE BRACKET
999
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
999
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
999
SPACER TUBE FRONT EXHAUST PIPE,B 884219
999
SUPPORT , UP TO CHASSIS 723231 EXCEPT FOR 500001-599999, Replaced By: A3464905034, +001A3464905041, +001A3475040012, +002N000127010203, +002N000934010014
999
EXHAUST PIPE FRONT,FRONT PART
999
EXHAUST PIPE FRONT,FRONT PART, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
999
CLAMP , Replaced By: A3874900041
999
BRACKET REAR EXHAUST PIPE
999
BRACKET
999
BRACKET
999
FRONT EXHAUST PIPE , Replaced By: A3664920201
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
EXHAUST MUFFLER
999
SUPPORT EXHAUST MUFFLER SUSPENSION, UP TO CHASSIS 792154,FROM CHASSIS 792155,SEE STANDARD VERSION
999
BRACKET EXHAUST MUFFLER
999
REAR EXHAUST PIPE
999
BRACKET EXHAUST PIPE TO CROSS MEMBER
999
REAR EXHAUST PIPE
999
BRACKET EXHAUST PIPE TO CROSS MEMBER
999
BRACKET REAR EXHAUST PIPE
999
CLAMP REAR EXHAUST PIPE TO BRACKET
