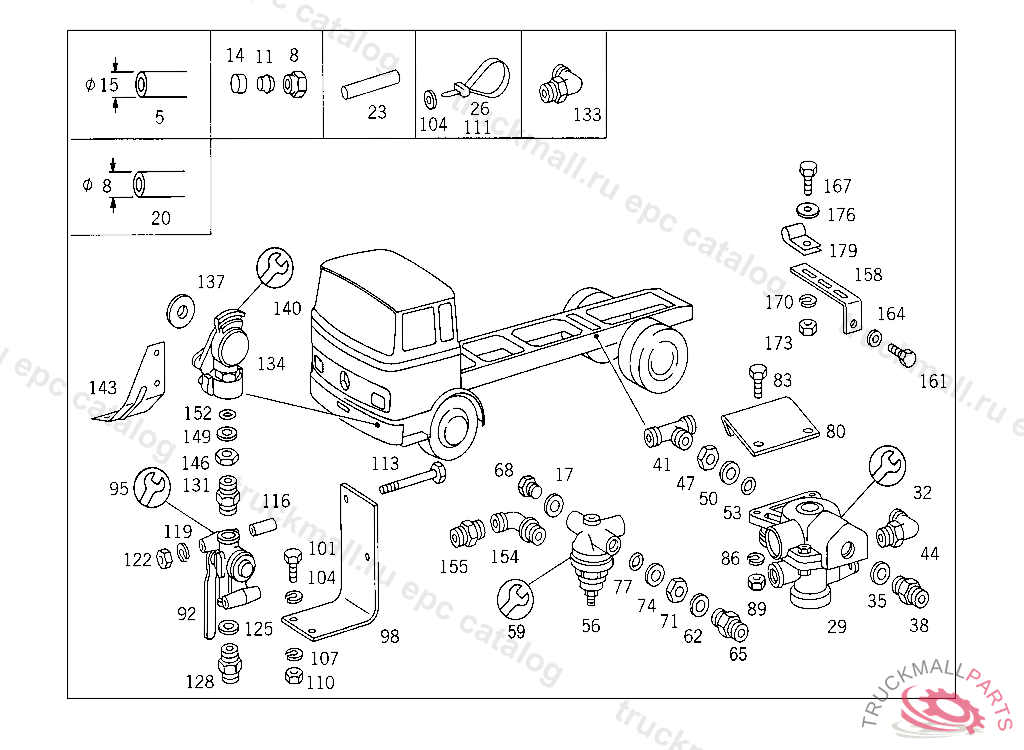

Поз.
Артикул
Описание
5
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
5
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
8
UNION NUT BUTT SCREW CONNECTION
11
GLAND LINE CONNECTION
11
GLAND LINE CONNECTION
14
SLEEVE LINE CONNECTION
14
SLEEVE , Replaced By: N915062006000
14
SEAL RING LINE CONNECTION
14
THRUST RING BUTT SCREW CONNECTION
17
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
17
SEAL RING , Replaced By: N007603012121
20
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
20
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
23
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
26
LOOM TIE LINE MOUNTING 280 MM
29
VALVE ,4 390315
29
VALVE ,4 390315
29
BRAKE VALVE CONTROL VALVE,549429
32
REPAIR KITWABCO
32
REPAIR KITWABCO
32
REPAIR KITWABCO
35
SEAL RING LINE CONNECTION
38
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
41
T-FITTING COMPRESSED AIR VALVE CONNECTION
44
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
47
NUT CHECK VALVE TO AIR RESERVOIR
50
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
50
THRUST RING CHECK VALVE TO AIR RESERVOIR
53
O-RING CHECK VALVE TO AIR RESERVOIR
56
VALVE (OVERFLOW VALVE)
56
VALVE
59
REPAIR KITTO 003 429 53 44,KNORR
62
SEAL RING LINE CONNECTION
65
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
68
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
68
SCREW PLUG , Replaced By: N000908022011
71
NUT CHECK VALVE TO AIR RESERVOIR
74
THRUST RING CHECK VALVE TO AIR RESERVOIR
74
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
77
O-RING CHECK VALVE TO AIR RESERVOIR
80
BRACKET
80
BRACKET
83
SCREW ANGLE TO CROSS MEMBER M 10X30
83
SCREW
83
SCREW END PIECE TO EXHAUST PIPE M 10X25
83
SCREW BRACKET TO LEFT SIDE MEMBER
86
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
86
LOCK WASHER FITTING TO BRACKET
89
NUT , Replaced By: N304032010002
89
NUT
89
NUT STRAP TO SUPPORT
92
SHUT-OFF COCK
92
SHUT-OFF COCK
95
REPAIR KITTO 000 429 14 31,5 116581
98
BRACKET BATTERY CABLE TO FRAME
98
BRACKET LEFT
101
SCREW END PIECE TO EXHAUST PIPE M 10X25
104
WASHER
104
WASHER , Replaced By: N000125008443
104
WASHER EXHAUST MUFFLER TO STRAP
107
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
110
NUT
110
NUT , Replaced By: N304032010002
111
LOOM TIE LINE MOUNTING
113
SCREW VALVE TO BRACKET, Replaced By: N304014008002
113
SCREW , Replaced By: N304017008067
113
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
113
SCREW , Replaced By: N304014008001
113
SCREW VALVE TO BRACKET
113
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
116
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
119
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
122
NUT
122
NUT
125
SEAL RING LINE CONNECTION
128
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
131
FITTING SHUTTLE VALVE,CONNECTION: "20"
131
FITTING , Replaced By: A0019972372
133
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
134
BRAKE LINE COUPLING
134
BRAKE LINE COUPLING
134
BRAKE LINE COUPLING
137
SEAL RING"WABCO"
140
REPAIR KIT
143
BRACKET AT FRAME
146
NUT CHECK VALVE TO AIR RESERVOIR
149
THRUST RING CHECK VALVE TO AIR RESERVOIR
149
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
152
O-RING CHECK VALVE TO AIR RESERVOIR
154
T-FITTING LUBRICATING LINE TO DISTRIBUTOR
154
FITTING , Replaced By: A0029905971
154
FITTING (PARTS KIT),LINE RUPTURE
155
DOUBLE FITTING
155
FITTING (PARTS KIT),LINE RUPTURE
155
FITTING , Replaced By: A0039978972
155
CONNECTION FITTING ,880809
155
FITTING , Replaced By: A0029905971
155
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
158
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
158
BRACKET JOINT TO FRAME,4 645187
158
BRACKET , Replaced By: A3464296040
158
BRACKET OIL LINE MOUNTING
158
BRACKET , Replaced By: A3604292940
161
SCREW , Replaced By: N304017008027
161
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
164
WASHER EXHAUST MUFFLER TO STRAP
164
WASHER , Replaced By: N000125008443
167
SCREW , Replaced By: N304017008034
167
SCREW BRACKET TO CROSS CONNECTION STRUT
167
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
167
SCREW END PIECE TO EXHAUST PIPE M 10X25
170
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
170
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
170
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
173
NUT
173
NUT , Replaced By: N304032010002
173
NUT
173
NUT BALL PIVOT TO LEVER
176
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
176
WASHER COMPRESSED AIR LINE TO BRACKET
176
WASHER , Replaced By: N009021008213
176
WASHER BRACKET TO LEFT SIDE MEMBER
179
CLAMP , Replaced By: A3604300143
179
CLAMP DELIVERY AND SUCTION LINES TO STEERING
179
CLAMP , Replaced By: A6739950001
179
CLAMP ,K 147121, Replaced By: N000000000319
179
CLAMP , Replaced By: N916016008200
179
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
179
CLAMP LINE MOUNTING
999
FITTING , Replaced By: A0009907070
999
FITTING , Replaced By: A0009970171
999
PLUG TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRACKET , Replaced By: A3874292140
999
BRACKET
999
BRACKET , Replaced By: A3464296040
999
BRACKET FUEL LINE
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES,974675
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
SEAL RINGTO 000 429 16 31,4 940458
999
REPAIR KITTO 001 431 56 05
999
HANDLETO 000 429 16 31,4 940458
999
FITTING , Replaced By: A0009970171
999
T-FITTING
999
SEAL RINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SHUT-OFF COCK , Replaced By: A0004291431
999
THRUST RING , Replaced By: A0004292184
999
LINE , Replaced By: A0005516256
