Поз.
Артикул
Описание

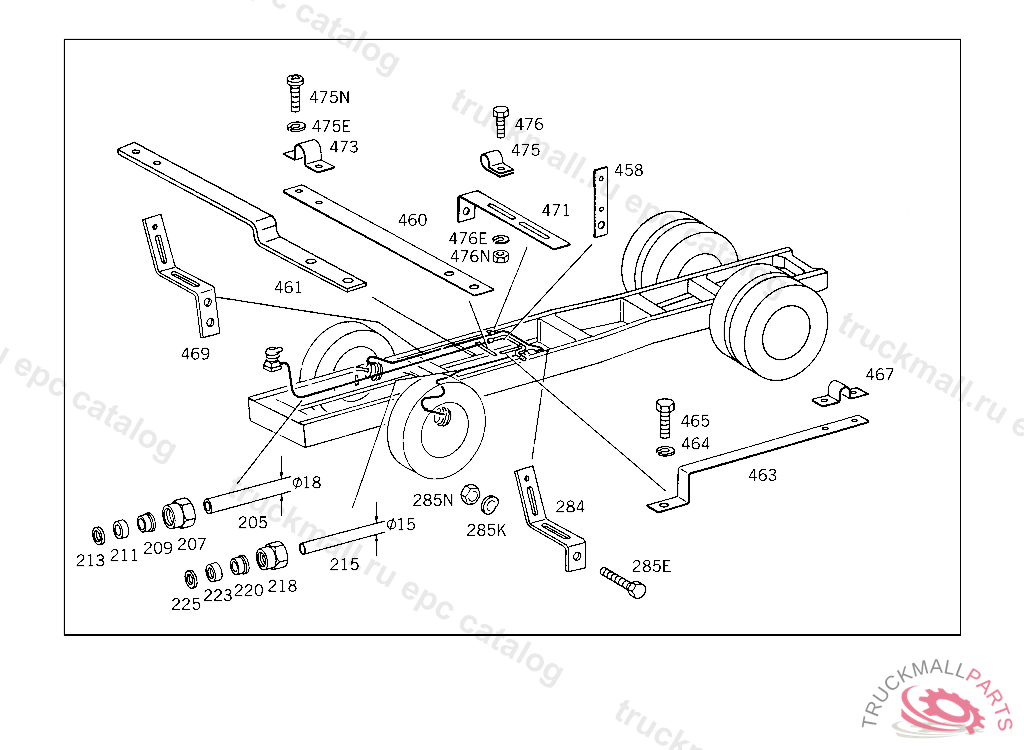

205
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
207
UNION NUT , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
209
GLAND , Replaced By: A0019901167
209
SEAL CONE LINE MOUNTING
211
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
211
THRUST RING , Replaced By: N915065018101
213
SEAL RING LINE CONNECTION
215
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
218
UNION NUT BUTT SCREW CONNECTION
220
GLAND LINE CONNECTION
223
THRUST RING BUTT SCREW CONNECTION
225
SEAL RING , Replaced By: N007603012121
225
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
284
BRACKET LINE MOUNTING
460
BRACKET CABLE TO TRANSMISSION
461
BRACKET
463
BRACKET
464
LOCK WASHER FITTING TO BRACKET
465
SCREW BRACKET TO TRANSMISSION
465
SCREW , Replaced By: N308676012038
467
CLAMP LINE TO BRACKET, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
469
BRACKET JOINT TO FRAME,4 645187
471
BRACKET OIL LINE MOUNTING
471
BRACKET FUEL LINE
473
CLAMP
475
CLAMP DELIVERY AND SUCTION LINES TO STEERING
475
CLAMP , Replaced By: A6739950001
999
BOOTTO 006 420 28 18,15 18,WABCO
999
DIAPHRAGMTO 008 420 23 18,WABCO
999
SEAL RING , 019908
999
SEAL RING , 019908
999
PROTECTIVE CAP , 019909 880101
999
PROTECTIVE CAP , 019909 880101
999
LINE , Replaced By: A0005516256
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE , Replaced By: A0005516456
999
CONNECTOR , Replaced By: A0004312031, +001N074302022304
999
DIAPHRAGM
999
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
999
SEAL RING , Replaced By: N915045015100
999
BRAKE HOSE , Replaced By: A0004297335
999
BRAKE HOSE , Replaced By: A0004297335
999
VALVE (OVERFLOW VALVE) WESTINGHOUSE
999
VALVE (OVERFLOW VALVE)
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
REPAIR KIT DIAPHRAGM PART TO 006 420 28 18, WABCO
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
VALVE , Replaced By: A0004305681
999
VALVE HAND BRAKE VALVE,A 069205
999
REPAIR KIT SEAL RING BOSCH,209
999
RUBBER SPRING
999
DIAPHRAGMTO 000 429 63 44
999
VALVE SEAT ,4 390315
999
STRAINER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE SEATWABCO
999
DIAPHRAGMTO 001 431 90 06,GRAU,5 148812
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
GASKET34X2X6 MM,GRAU
999
TEST CONNECTION
999
VALVE SEAT REAR BRAKE BOOSTER
999
VALVE SEATWABCO,002 0,012 0
999
VALVE DISCTO 001 431 90 06,GRAU,5 148812
999
VALVE DISCTO 001 431 90 06,GRAU,5 148812
999
WASHER ,4 390315
999
WASHER ,4 390315
999
VALVE SEATGRAU
999
VALVE SEATTO 001 431 90 06,GRAU,5 148812
999
VALVE
999
VALVEWABCO,002 0,012 0
999
VALVETO 001 431 90 06,GRAU,5 148812
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
STRAINERTO 001 431 90 06,GRAU,5 148812
999
STRAINER PRESSURE REGULATOR
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CUP , Replaced By: A0004317886
999
CUP
999
SEAL RING PRESSURE REGULATOR,4 208907
999
PRESSURE REGULATOR , Replaced By: A0004317906
999
SPRING ,4 390315
999
PROTECTIVE CAPTO 001 431 90 06,GRAU,5 148812
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0004342401
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH, OPTIONAL WITH 000 434 08 01
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
REPAIR KIT , NOT USED
999
REPAIR KITTO 005 420 08 18,005 420 93 18
999
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
999
STRAINER , 765123
999
STRAINER , 765123
999
VALVE , NOT USED
999
VALVE , 765123
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SEALING CORD
999
EXPANSION PLUG CAB REAR PANEL
999
SEALING CORD , Replaced By: A0009870446
999
SEALING CORD
999
SEALING CORD *** 52X3 MM
999
SEALING CORD12.3X2.4 MM,TO 000 997 39 36,49 36
999
SEALING CORD PRESSURE REGULATOR,4 208907
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SPRINGWABCO,002 0,012 0
999
SPRINGWABCO,002 0,012 0
999
SNAP RING , 765123
999
CLAMP LINE CONNECTION
999
FITTING , Replaced By: A0019972572
999
FITTING RELAY VALVE,CONNECTION: "1,2"
999
PLUG
999
VALVE (RELAY VALVE) GRAU
999
VALVE , Replaced By: A0034295244
999
VALVE OVERFLOW VALVE
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
BRAKE VALVE , Replaced By: A0014312405
999
SPRING
999
SPRING
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
GASKET , Replaced By: A0004311980
999
PRESSURE REGULATOR"WABCO",486597
999
PRESSURE REGULATORWABCO
999
PRESSURE REGULATOR , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 4 208908-5 148812, Replaced By: A0024315906
999
PRESSURE REGULATOR , Replaced By: A0024316006
999
SPRINGTO 000 434 21 01
999
REPAIR KIT , Replaced By: A0004301107
999
SPRINGTO 000 429 63 44,000 429 59 44
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
LOOM TIE , Replaced By: N900288014002
999
PLUGTO 001 420 39 24,001 420 40 24,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
999
VALVE OVERFLOW VALVE WITH RETURN FLOW GRAU
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO,K 262627
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
PRESSURE REGULATORBOSCH
999
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
999
PRESSURE REGULATOR , Replaced By: A0024315906
999
REPAIR KIT , Replaced By: A0025865242
999
REPAIR KIT , Replaced By: A0004301168
999
REPAIR KITKNORR
999
REPAIR KITKNORR
999
REPAIR KIT , Replaced By: A0024301560
999
REPAIR KITGRAU,5 148812
999
REPAIR KITTO 001 431 79 05, FROM CHASSIS 4 375194-4 428563
999
REPAIR KITTO 000 434 11 01
999
SPRING , TO 000 429 81 44
999
SPRING , 765123
999
FITTING BRAKE HOSE,5 418584
999
LOOM TIE , Replaced By: N916017020000
999
WHEEL BRAKE CYLINDER , 019908, Replaced By: A0034204718, +002N007603022100, +002N074298022202
999
VALVE OVERFLOW VALVE
999
VALVE OVERFLOW VALVE WITH RETURN FLOW KNORR
999
VALVE RELAY VALVE KNORR
999
SEAL RING BRAKE SHOE ROLLER
999
SEAL RING BRAKE HOSE
999
WHEEL BRAKE CYLINDER , FROM CHASSIS 868037 EXCEPT FOR 500001-520913, Replaced By: A0074201218, +002N913004016004
999
WHEEL BRAKE CYLINDER ,4 304303, Replaced By: A0074201218, +002N913004016004
999
WHEEL BRAKE CYLINDER , Replaced By: A0074201218
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RINGTO 001 431 90 06,GRAU,5 148812
999
SEAL RING18.72X2.62 MM,WABCO,002 0,012 0
999
SEAL RING74.20X5.70 MM,WABCO
999
SEAL RINGTO 000 429 65 44, NOT USED
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RING
999
SEAL RING34.6X2.6 MM
999
SEAL RING
999
SEAL RING6.07X1.78 MM,WABCO,002 0,012 0
999
SEAL RING32.99X2.62 MM,WABCO,002 0,012 0
999
SEAL RING12.42X1.78 MM,WABCO,002 0,012 0
999
SEAL RING17.12X2.62 MM, 402,407 FROM CHASSIS 657000
999
SEAL RING , 019908
999
SEAL RING , 765123
999
SEAL RING , 765123
999
SEAL RING , 019908
999
HOSE , TO 004 420 11 18,005 420 94 18
999
SEAL RING BRAKE HOSE
999
GROMMET
999
ROLLER , Replaced By: A3014200039, +002A0039971548
999
THRUST PIECE BRAKE SHOE TO BRAKE ANCHOR
999
BUSHING , Replaced By: A3464210550
999
SPACER WASHER , Replaced By: A3174210352
999
SPACER WASHER
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
BRACKET RELAY VALVE,600893 350.033 UP TO IDENT NO. 680088
999
REPAIR KIT BRAKE SHOE ROLLER, UP TO CHASSIS 4 387020, FROM CHASSIS SEE SPARE PARTS LIST 739.0
999
BEARING BRACKET RIGHT
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210510, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210610, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210710, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230210, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230310, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230410, +016A3079900297
999
PIVOT PIN ,036408, Replaced By: A3354210218, +001A3354230144, +002N074361022203, +002N074361022351
