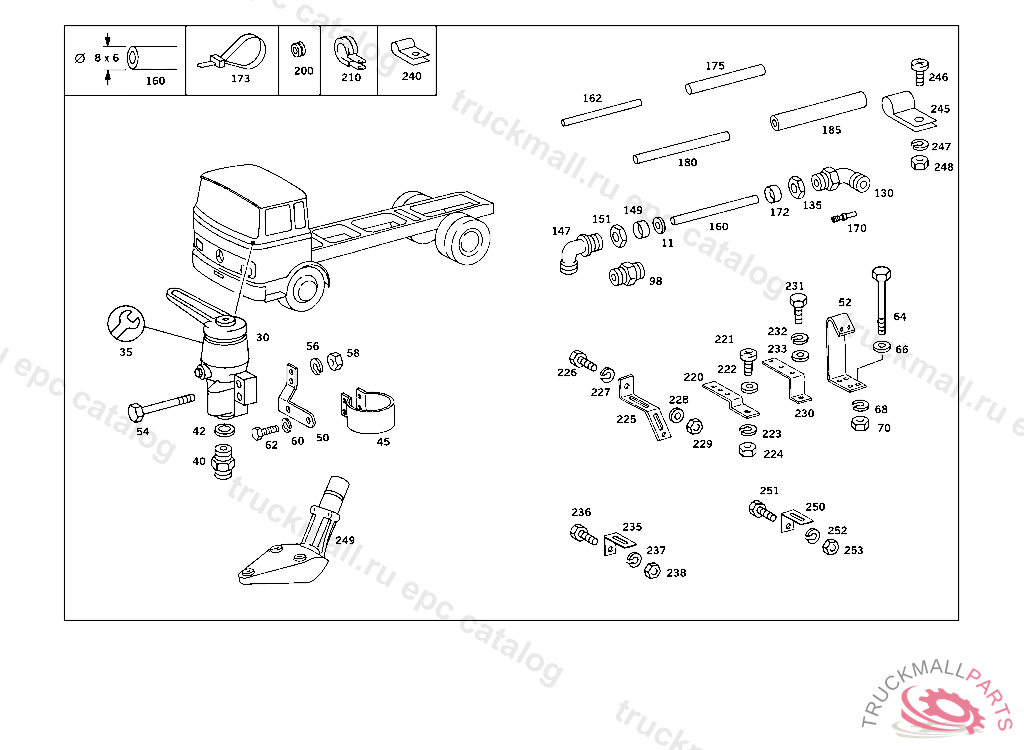

Поз.
Артикул
Описание
11
SEAL RING , Replaced By: N007603012121
11
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
30
VALVE (HAND BRAKE VALVE)
30
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3454307481
30
VALVE
35
REPAIR KIT
40
FITTING LINE CONNECTION
40
FITTING LINE CONNECTION, Replaced By: N000000006446
40
FITTING , Replaced By: A0019972572
40
SCREW-IN FITTING LINE CONNECTION
42
SEAL RING LINE CONNECTION
45
CLAMP
45
CLAMP
50
BRACKET HAND BRAKE VALVE
52
BRACKET
54
SCREWM 8X40
54
SCREWM 8X40
54
SCREWM 8X40
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
58
NUT
58
NUT
60
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
62
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
SCREW , Replaced By: N304017008016
64
SCREW BRACKET TO FRONT CROSS MEMBER
66
WASHER , Replaced By: N009021006208
66
WASHER COMPRESSED AIR LINE TO BRACKET
68
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
70
NUT BALL PIVOT TO LEVER
98
FITTING , Replaced By: A0019972372
98
FITTING SHUTTLE VALVE,CONNECTION: "20"
130
ELBOW FITTING , Replaced By: A0004294638
130
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
135
NUT CHECK VALVE TO AIR RESERVOIR
147
FITTING , Replaced By: A0009909271
147
ELBOW FITTING ,4 412125
149
SPACER TUBE CAB
151
NUT JOINT TO BRACKET
151
NUT , Replaced By: N308675014002
151
NUT RELEASE BEARING LUBRICATION
151
NUT SHOCK ABSORBER TO LOWER BEARING BRACKET
151
NUT , Replaced By: N308675014000
151
NUT , Replaced By: N308675014001
160
HOSE
160
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
162
INSULATING HOSE COLOR CODE BLUE,YB227219
162
INSULATING HOSE
162
INSULATING HOSE
170
FITTING
170
FITTING , Replaced By: N915062006000
170
FITTING14X1.5 MM
170
FITTING , Replaced By: N915059006000
172
SLEEVE , Replaced By: N915062006000
172
SLEEVE LINE CONNECTION
173
LOOM TIE LINE MOUNTING
175
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
175
INSULATING HOSE ELECTRONICS AT SUPPORT, ORDER BY THE METER
180
INSULATING HOSE , ORDER BY THE METER
180
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
180
INSULATING HOSE20 MM, ORDER BY THE METER
180
INSULATING HOSE20 MM, ORDER BY THE METER
185
INSULATING HOSE30 MM, ORDER BY THE METER
185
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
185
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
185
INSULATING HOSE30 MM, ORDER BY THE METER
200
GROMMET LINE MOUNTING 16/11 MM
200
GROMMET CAB ROOF
200
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
200
GROMMET , Replaced By: A0009972081
200
GROMMET FOR PASSAGE OF LINE
200
GROMMET
200
GROMMET SIDE MARKER LAMP CABLE
210
CLAMP , Replaced By: N916016025201
210
CLAMP HOSE TO FLANGE AND TO VALVE
210
CLAMP , Replaced By: N916016018201
210
CLAMP BRAKE HOSE BRACKET
220
BRACKET , Replaced By: A3464296040
220
BRACKET OIL LINE MOUNTING
221
SCREW BUFFER TO BRACKET M 8X30
222
WASHER EXHAUST MUFFLER TO STRAP
222
WASHER , Replaced By: N000125008443
223
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
224
NUT
225
BRACKET , Replaced By: A3464296440
225
BRACKET JOINT TO FRAME,4 645187
226
SCREW END PIECE TO EXHAUST PIPE M 10X25
226
SCREW END PIECE TO EXHAUST PIPE M 10X25
227
LOCK WASHER , Replaced By: N912004010102
227
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
228
WASHER RADIATOR TO RUBBER MOUNTING
228
WASHER , Replaced By: N000125010532
229
NUT BRACKET TO SUPPORT AND TO END PIECE
230
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3872950440
231
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
231
SCREW RIGHT BOTTOM ANTINOISE CAPSULE TO FRAME M10X1X20,5 505597
232
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
232
LOCK WASHER , Replaced By: N912004010102
233
WASHER , Replaced By: N000125010532
233
WASHER RADIATOR TO RUBBER MOUNTING
235
BRACKET , Replaced By: A3812950440
235
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
235
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
236
SCREW PIPE CLAMP
236
SCREW , Replaced By: N304017008021
237
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
238
NUT
240
CLAMP LINE MOUNTING
240
CLAMP DELIVERY AND SUCTION LINES TO STEERING
240
CLAMP , Replaced By: A6739950001
245
CLAMP , Replaced By: A3604300143
245
CLAMP ,K 147121, Replaced By: N000000000319
245
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
245
CLAMP , Replaced By: N916016008200
246
SCREW , Replaced By: N304017008021
246
SCREW PIPE CLAMP
246
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
246
SCREW , Replaced By: N308676012026
246
SCREW SHIFT CASE TO SLOTTED GATE
246
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
247
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
247
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
247
LOCK WASHER
248
NUT
248
NUT BALL PIVOT TO LEVER
249
BEARING
249
BEARING , Replaced By: A3354600537, +001A3524623901, +002A0119815110
249
BEARING PLEASE REFER TO ADDITIONAL PARTS,5 057903
249
BEARING ,5 0579045 210003, Replaced By: A3434600237, +001A3524623101, +002A0119815110
250
BRACKET OIL LINE MOUNTING
250
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
250
BRACKET , Replaced By: A3464296040
250
BRACKET , Replaced By: A3812950440
250
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
251
SCREW , Replaced By: N304017008021
251
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
251
SCREW PIPE CLAMP
251
SCREW , Replaced By: N308676012012
251
SCREW , Replaced By: N308676012026
251
SCREW
251
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
252
LOCK WASHER FITTING TO BRACKET
252
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
253
NUT
253
NUT STRAP TO SUPPORT
253
NUT STRAP TO SUPPORT
999
T-FITTING AT AIR RESERVOIR
999
BRACKET
999
CROSS FITTING SUPPLY LINE
