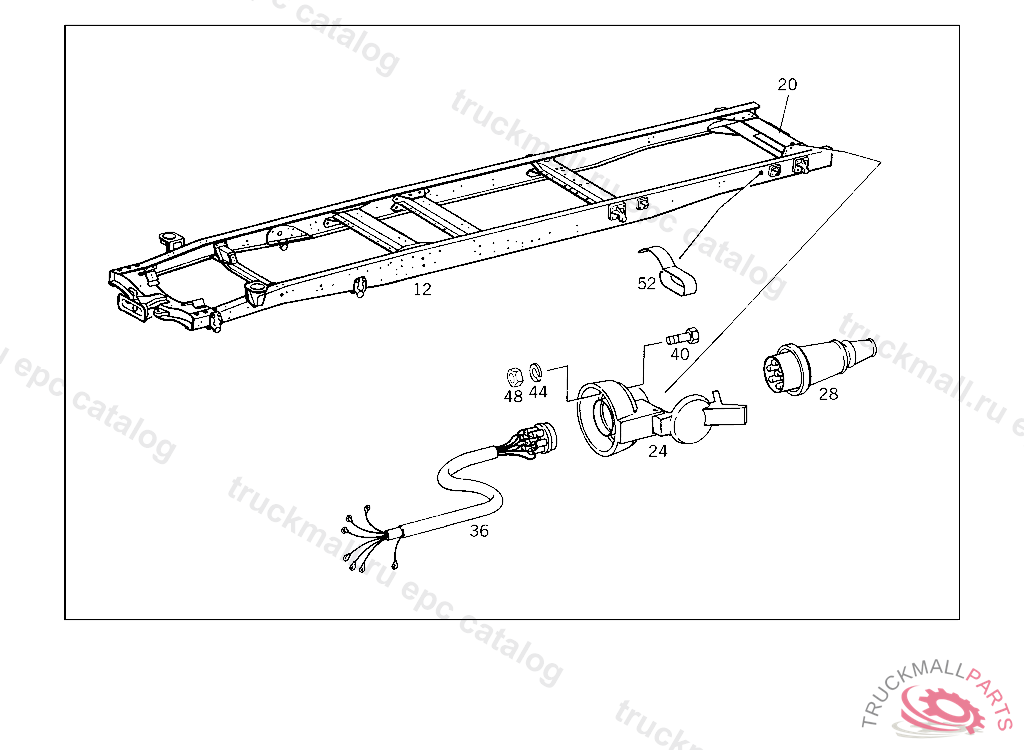

Поз.
Артикул
Описание
12
FRAME
12
FRAME
12
FRAME
20
CROSS MEMBER (REAR CROSS MEMBER)
20
CROSS MEMBER (REAR CROSS MEMBER)
24
PLUG SOCKET 7-POLE
24
PLUG SOCKET
24
PLUG SOCKET FOR OPERATION WITH TRAILER
24
PLUG SOCKET
28
PLUG FOR OPERATION WITH TRAILER
28
PLUG 7-POLE
28
PLUG TRAILER,7-POLE 12 V
36
CABLE HARNESS
36
CABLE HARNESS ,A 080354
36
CABLE HARNESS ,A 080354
40
SUPPORT PLUG SOCKET TO REAR CROSS MEMBER
40
SCREW , Replaced By: A3415457077
44
LOCK WASHER LINE MOUNTING
44
LOCK WASHER T-FITTING TO BRACKET
48
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
48
NUT
52
CLAMP , Replaced By: A0005460875
999
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
999
PIN BUSHING , Replaced By: A0005453726
999
GROMMET3.0 MM
999
GROMMET5.0 MM
999
PLUG SOCKET FOR OPERATION WITH TRAILER
999
CABLE HARNESS FROM CABLE CONNECTOR TO RIGHT TAIL LAMP
999
SCREW TRAILER PLUG SOCKET TO SUPPORT
999
WASHER , Replaced By: N000433005304
