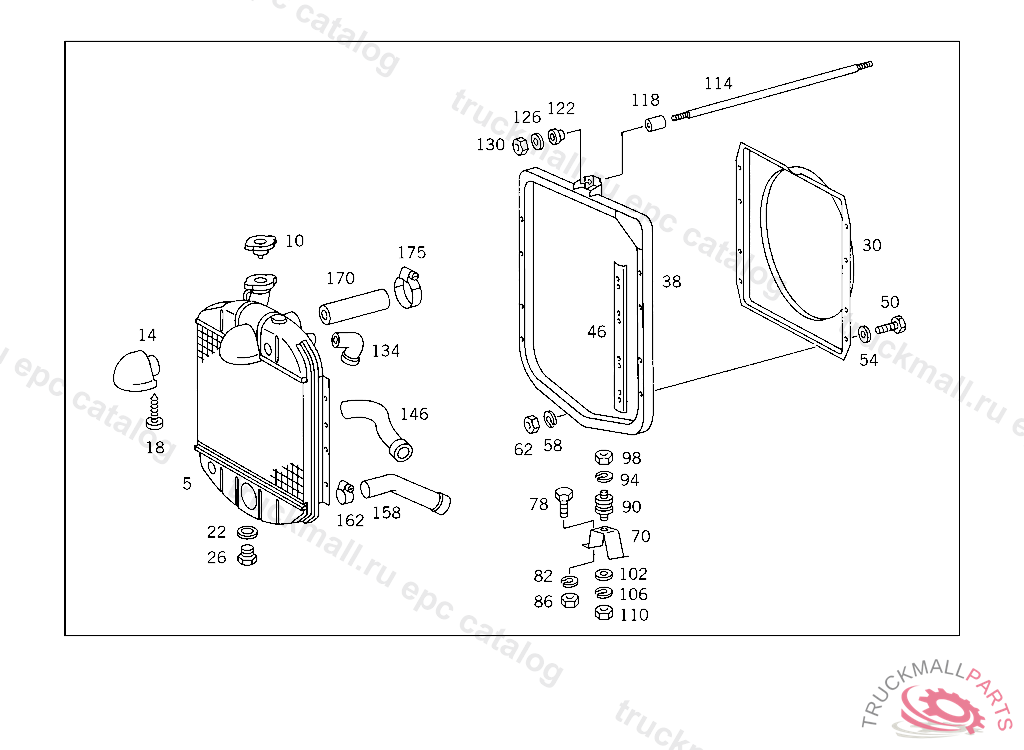

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR
5
RADIATOR
10
RADIATOR CAP
10
RADIATOR FILLER CAP. RADIATOR CAP
14
PIPE ELBOW
18
SHEET METAL SCREW SHIFT LEVER BEARING TO CAB FLOOR
22
SEAL RING
26
SCREW PLUG
30
FAN SHROUD
38
SUPPORT
46
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
50
SCREW COMPRESSED AIR ELBOW
54
WASHER , Replaced By: N000125008443
58
LOCK WASHER
62
NUT LEVER TO SHIFTING SHAFT
70
ANGLE
78
SCREW , Replaced By: N308676012012
78
SCREW BRACKET TO TRANSMISSION M012X1,5X20
82
LOCK WASHER BRACKET TO SUPPORTING ARM
86
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
90
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
94
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
98
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
102
WASHER , Replaced By: N000125010532
106
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
110
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
114
RADIATOR STRUT , 002,003,022,FROM CHASSIS A 004765
114
RADIATOR STRUT , UP TO CAB 1500000
118
SPACER TUBE , Replaced By: A3199910540
122
RUBBER RING SHOCK ABSORBER MOUNTING
126
WASHER RADIATOR STRUT TO SUPPORT AND TO CAB
130
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
134
HOSE FROM THERMOSTAT TO RADIATOR
170
HOSE HEATING WATER CONNECTION 24 X 33 MM
170
HOSE FROM UPPER LINE TO HEATING SHUT-OFF COCK 15X24X380, ORDER BY THE METER
170
HOSE , Replaced By: A3515007075
175
CLAMP HOSE TO FITTING AND TO OIL TANK
175
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
175
CLAMP
175
LOOM TIE
999
CLAMP ENGINE FRONT CROSS MEMBER
999
SUPPORT
999
FAN SHROUD RADIATOR
999
RADIATOR STRUT , Replaced By: A3455007345
999
RADIATOR STRUT RADIATOR, 352.00/1,353,358 UP TO CHASSIS 676464 EXCEPT FOR 500001-599999,TYP 360 UP TO CHASSIS 676464 352.00/1,353,358 UP TO CHASSIS 4 153178 EXCEPT FOR 515187-599999,TYP 360 UP TO CHASSIS 4 153178 FROM CHASSIS SEE SA 16880
