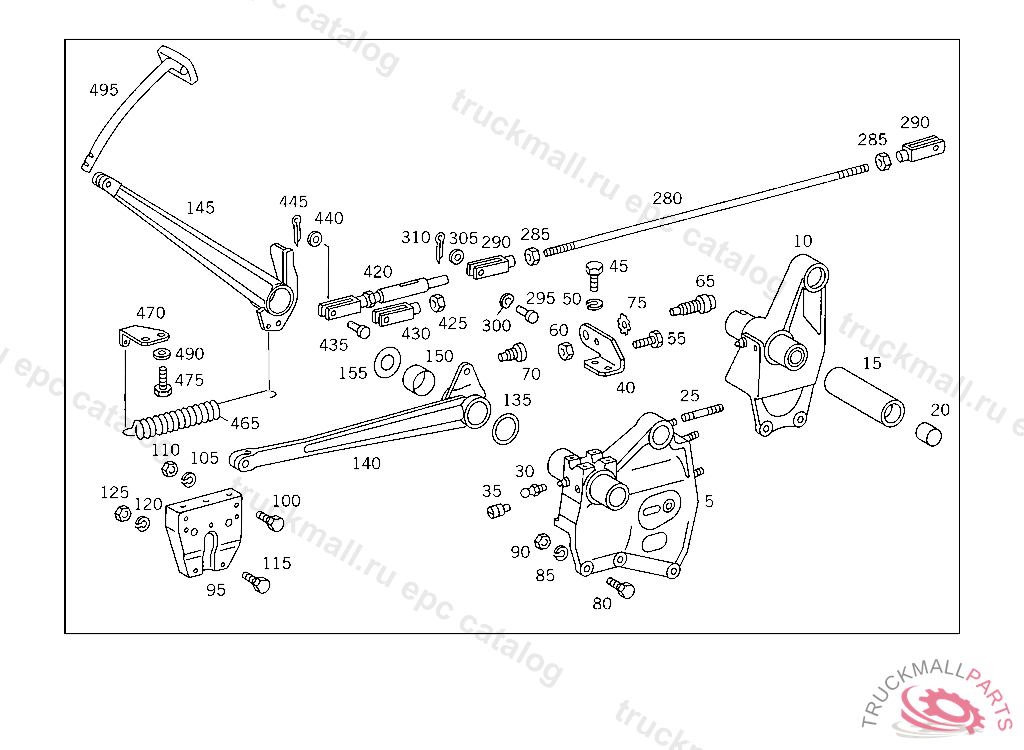

Поз.
Артикул
Описание
5
BEARING BRACKET , Replaced By: A3452907419
5
BEARING BRACKET , USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
15
BEARING TUBE
20
BUSHING
25
STUD
30
GREASE NIPPLE PROTECTIVE TUBE
35
SCREW
40
STOP BRAKE PEDAL
45
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
50
LOCK WASHER , Replaced By: N912004010102
55
SCREW BRACKET TO BUMPER,LEFT M 10X25
60
NUT STOP
65
SWITCH RANGE SELECTOR LOCK
70
BOOT SWITCH
75
TOOTHED WASHER AT BRAKE LINE COUPLING
80
SCREW , Replaced By: N304017010002
80
SCREW INTERMEDIATE PIECE,ADAPTER HOUSING
85
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
90
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
95
REINFORCEMENT
100
SCREW , Replaced By: N304017010002
105
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
110
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
115
SCREW ,A 006846
115
SCREW
120
LOCK WASHER BRACKET TO SUPPORTING ARM
125
NUT FUEL TANK TO CONSOLE
135
SPACER RING AS REQUIRED 3.50 MM
135
SPACER RING PEDAL TO BEARING BRACKET
135
SPACER RING AS REQUIRED 3.25 MM
145
PEDAL , USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
150
BUSHING
155
RING AS REQUIRED 3.0 MM
285
NUT BRACKET TO BRACKET
285
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
420
ROD PISTON ROD
425
NUT STRAP TO SUPPORT
430
YOKE PISTON ROD
435
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
440
WASHER , Replaced By: N000433010510
445
COTTER PIN PISTON ROD TO BRAKE PEDAL
465
SPRING TWO-CIRCUIT BRAKE VALVE
470
BRACKET RELEASE SPRING
475
SCREW SWITCH TO BRACKET 8X16
490
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
495
PEDAL PLATE CLUTCH PEDAL
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3762900034
999
ROD , Replaced By: A3762950033
999
YOKE , Replaced By: A3769960001
999
BEARING TUBE , Replaced By: A3442907036
999
PIN , Replaced By: A3412917074
999
LEVER , Replaced By: A3412917032
999
BEARING BRACKET , Replaced By: A3522932536
999
BEARING BRACKET
999
BUSHING , Replaced By: A3442940150
999
BUSHING
999
HEADLESS SETSCREW , Replaced By: A3529900080
