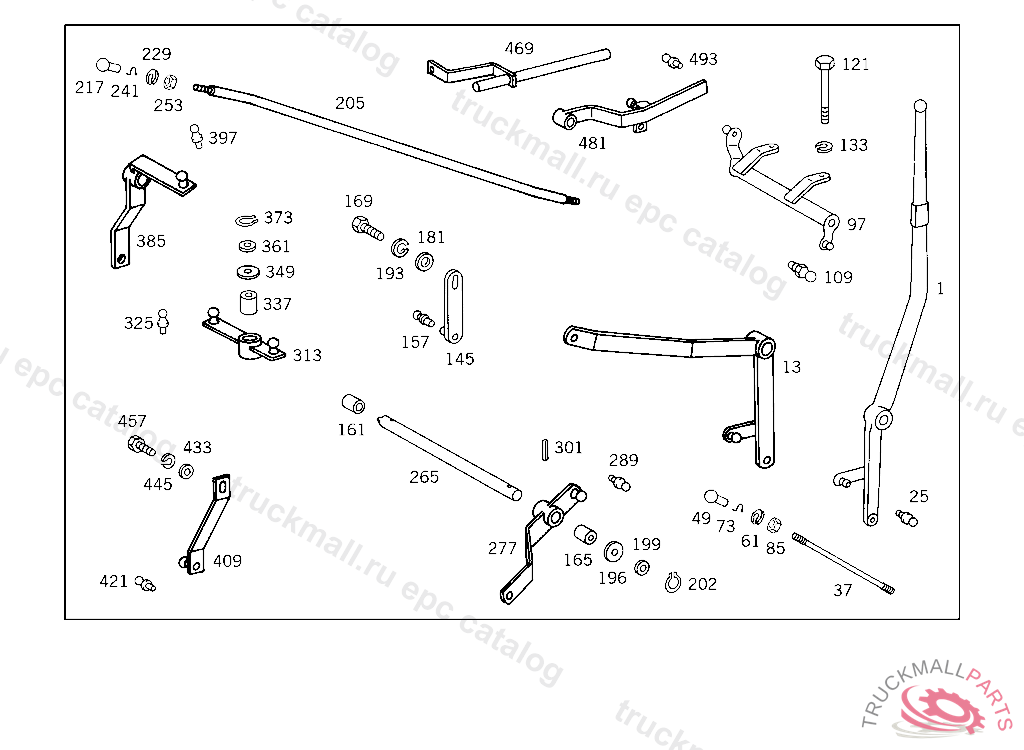

Поз.
Артикул
Описание
1
SHIFT LEVER
1
SHIFT LEVER
1
SHIFT LEVER
13
LEVER (SHIFT LEVER)
13
LEVER (SHIFT LEVER)
13
LEVER (SHIFT LEVER),4 282707
13
LEVER GEARSHIFT MECHANISM,611167
13
LEVER , Replaced By: A3182603137
25
BALL PIVOT
25
BALL PIVOT LEVER
25
BALL PIVOT LEVER
25
BALL PIVOT , Replaced By: A3129910120
37
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
49
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
61
SNAP RING SPRING-LOADED PUSH ROD
73
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
85
NUT BALL PIVOT TO LEVER
97
SHAFT CONTROL SHAFT
97
SHAFT CONTROL SHAFT
97
SHAFT CONTROL SHAFT
97
SHAFT , Replaced By: A3523000420
109
BALL PIVOT , Replaced By: A3129910120
109
BALL PIVOT LEVER
121
SCREW VALVE TO BRACKET M 8X55
121
SCREW , Replaced By: N304017008043
133
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
145
LEVER CONTROL SHAFT
145
LEVER CONTROL SHAFT
145
LEVER CONTROL
157
BALL PIVOT , Replaced By: A3129910120
157
BALL PIVOT LEVER
157
BALL PIVOT
161
HUB CONTROL SHAFT
165
BUSHING
169
SCREW COVER PLATE TO BRACKET
181
WASHER CONTROL LEVER TO CONTROL SHAFT
193
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
196
WASHER SHIFT LEVER TO PIVOT PIN
199
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
202
LOCK RING SHIFT LEVER TO PIVOT PIN
205
ROD (PULL ROD)
205
ROD (PULL ROD)
205
ROD , Replaced By: A3603000915
205
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
205
ROD (PULL ROD)
205
ROD (PULL ROD)
205
ROD (PULL ROD)
205
ROD (PULL ROD)
205
ROD (PULL ROD)
205
ROD (PULL ROD)
217
BALL SOCKET , Replaced By: A0009912422
217
BALL SOCKET PULL ROD TO LEVER
217
BALL SOCKET PULL ROD TO LEVER
217
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
217
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
229
SNAP RING SPRING-LOADED PUSH ROD
229
SNAP RING SPRING-LOADED PUSH ROD
241
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
241
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
253
NUT BALL PIVOT TO LEVER
253
NUT BALL PIVOT TO LEVER
265
SHAFT (SHIFTING SHAFT)
277
LEVER CONTROL SHAFT
277
LEVER CONTROL SHAFT
289
BALL PIVOT , Replaced By: A3129910120
289
BALL PIVOT LEVER
289
BALL PIVOT LEVER
289
BALL PIVOT
301
GROOVED PIN SHIFTING SHAFT TO LEVER
313
LEVER
325
BALL PIVOT , Replaced By: A3129910120
325
BALL PIVOT LEVER
325
BALL PIVOT LEVER
337
BUSHING
349
WASHER SHIFT LEVER TO PIVOT PIN
361
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
373
LOCK RING SHIFT LEVER TO PIVOT PIN
385
LEVER CONTROL
385
LEVER CONTROL
397
BALL PIVOT , Replaced By: A3129910120
397
BALL PIVOT LEVER
409
LEVER CONTROL
421
BALL PIVOT , Replaced By: A3129910120
421
BALL PIVOT LEVER
433
WASHER CONTROL LEVER TO CONTROL SHAFT
445
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
457
SCREW COVER PLATE TO BRACKET
469
SHAFT GEARSHIFT MECHANISM
481
LEVER GEARSHIFT MECHANISM
493
BALL PIVOT LEVER
493
BALL PIVOT , Replaced By: A3129910120
999
LEVER (SHIFT LEVER), NOT USED
999
ROD CONTROL
999
LEVER CONTROL SHAFT
999
ROD (PULL ROD)
999
BEARING BRACKET SHIFTING SHAFT BEARING
999
BEARING CONTROL SHAFT
999
LEVER
999
SHAFT CONTROL SHAFT
999
LEVER CONTROL SHAFT
999
BRACKET REVERSING SHAFT
999
LEVER REVERSING SHAFT
999
LEVER CONTROL SHAFT
999
LEVER CONTROL SHAFT
999
LEVER REVERSING SHAFT
999
ROD FROM CONTROL SHAFT TO INTERMEDIATE LEVER AT ENGINE
999
LEVER REVERSING SHAFT
999
ROD (PULL ROD)
999
ROD REVERSING SHAFT
999
PIN REVERSING SHAFT
999
PIN REVERSING SHAFT
999
SCREW , Replaced By: N308676016014
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
