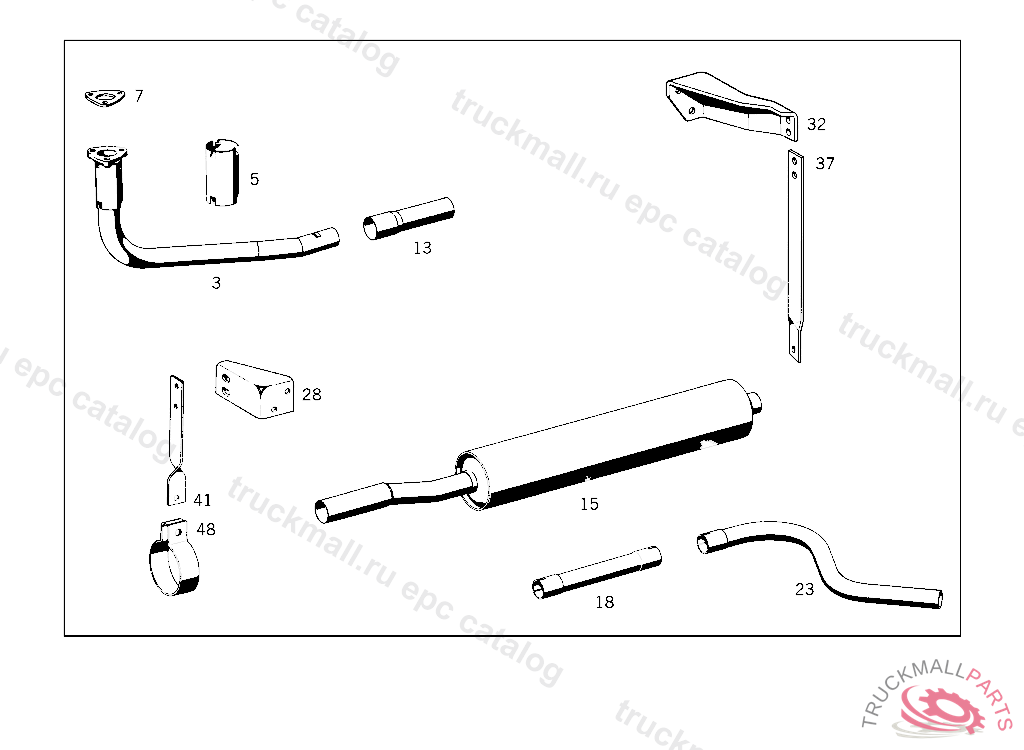

Поз.
Артикул
Описание
3
EXHAUST PIPE FRONT,4 666521
5
PROTECTIVE PLATE FRONT EXHAUST PIPE
5
PROTECTIVE PLATE
7
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
7
FLANGE GASKET , Replaced By: A4424920280
13
CONNECTOR FRONT,505802
15
EXHAUST MUFFLER WITH PIPE FRONT, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
15
EXHAUST MUFFLER WITH PIPE , Replaced By: A3834900001, +001A3814920001
15
EXHAUST MUFFLER
18
CONNECTOR REAR
18
CONNECTOR REAR
23
REAR EXHAUST PIPE REAR, FROM IDENT NO. 685038 ALSO INSTALLED ON 500001-599999
23
REAR EXHAUST PIPE , 800857
23
REAR EXHAUST PIPE REAR
28
SUPPORT EXHAUST PIPE,4 613839
28
SUPPORT REAR EXHAUST PIPE TO FRAME
32
SUPPORT TAIL PIPE TO SIDE MEMBER
32
SUPPORT REAR EXHAUST PIPE,5 193594
32
SUPPORT REAR EXHAUST PIPE
32
SUPPORT REAR EXHAUST PIPE
37
BRACKET EXHAUST, 746497
41
BRACKET EXHAUST PIPE, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
43
BRACKET EXHAUST PIPE
48
CLAMP REAR EXHAUST PIPE TO BRACKET
999
RUBBER BUFFER EXHAUST MUFFLER
999
RUBBER BUFFER BRACKET TO SUPPORT
999
WASHER PARTICLE FILTER
999
CONNECTOR , Replaced By: A3224920207
999
PROTECTIVE PLATE ,FB377267
999
EXHAUST PIPE , Replaced By: A3604900619
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A3604900515
999
CONNECTOR , Replaced By: A3224920207
999
BRACKET , Replaced By: A3814923841
999
REAR EXHAUST PIPE REAR, UP TO IDENT NO. 685037 EXCEPT FOR:500001-599999
999
REAR EXHAUST PIPE , Replaced By: A3604922305
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
999
CLAMP60.5 MM,4 613839
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW STRAP TO BRACKET
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
CLAMP , Replaced By: N000000001642
999
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT
999
NUT STRAP TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
