Поз.
Артикул
Описание
1

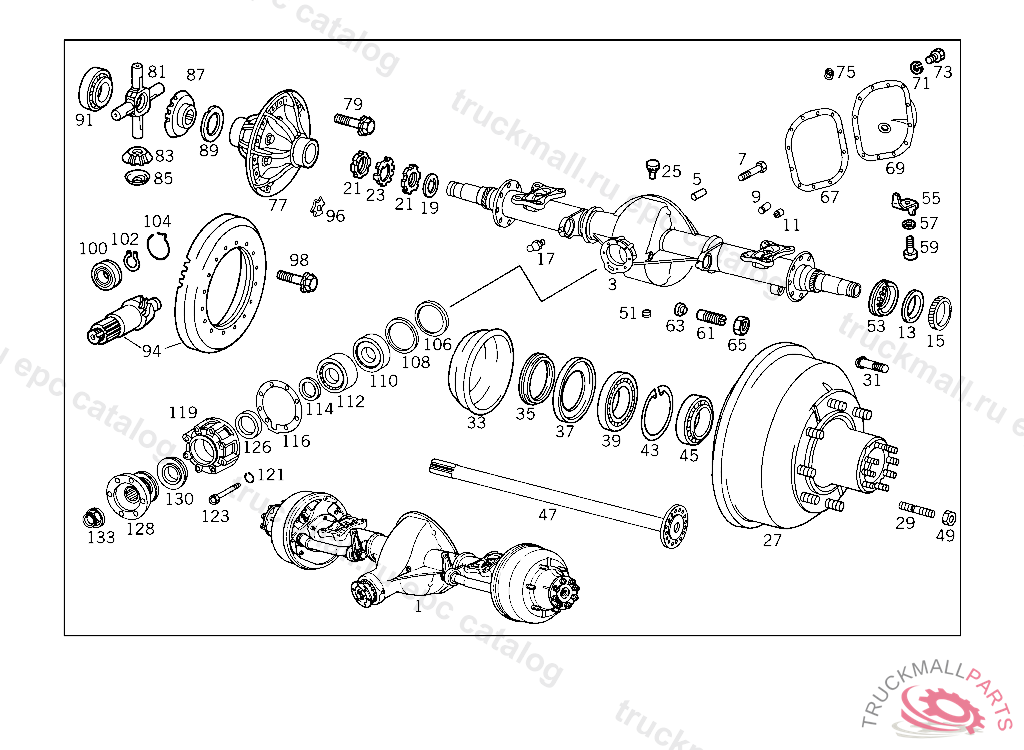

REAR AXLE WITH BRAKES,RATIO: 7:40, 10/20 UP TO CHASSIS 691430 EXCEPT FOR 691035,691046,691051,691063,691064,691091,691093,691103,691112,691358,691400,691408,691411. 50/60 UP TO CHASSIS 691481 EXCEPT FOR 691216-691219
3
AXLE HOUSING , 600252
5
CYLINDRICAL PIN , Replaced By: N000007008101
5
CYLINDRICAL PIN
7
SCREW , Replaced By: N914126016000
7
SCREW , Replaced By: A0009905704
7
SCREW
9
PIN
11
PLUG
13
OIL COLLECTOR
13
OIL COLLECTOR , Replaced By: A3853570082
15
THRUST RING LEFT, 600252
17
GREASE NIPPLE PROTECTIVE TUBE
19
SPACER WASHER OUTSIDE, 600252
21
GROOVED NUT OUTSIDE, 600252
23
LOCK OUTSIDE, 600252
25
FITTING BLEEDING
25
VALVE
27
DRUM HUB , 600252
29
STUD
31
WHEEL MOUNTING BOLT , Replaced By: A0004015271
31
WHEEL MOUNTING BOLT
33
OIL COLLECTOR
35
SEAL RING INSIDE, 600252
37
SPACER RING INSIDE, 600252
39
TAPERED ROLLER BEARING
39
TAPERED ROLLER BEARING
39
TAPERED ROLLER BEARING
43
LOCK RING DISC SUPPORT
45
TAPERED ROLLER BEARING
45
TAPERED ROLLER BEARING
45
TAPERED ROLLER BEARING
45
TAPERED ROLLER BEARING
47
REAR AXLE SHAFT , 600252
49
NUT , Replaced By: N308673012002
49
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
51
SCREW PLUG BELL HOUSING
53
ADJUSTING NUT , Replaced By: A6743530025
53
SCREW COLLAR
55
LOCK
57
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
59
SCREW , Replaced By: N304017008016
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
61
SET SCREW , Replaced By: A6703530276
61
SET SCREW , UP TO REAR AXLE 321.0/1-058524 OR UP TO CHASSIS 002010 AND FOOTNOTE 8
63
SLIDE
65
NUT STEERING WHEEL TO STEERING COLUMN,4 628576
67
GASKET , Replaced By: A3123511480
67
GASKET
69
COVER , MIND HIGHER OILLEVEL
71
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
73
SCREW , Replaced By: N304017010028
73
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
75
SCREW PLUG BELL HOUSING
77
DIFFERENTIAL GEAR
79
SCREW
81
DIFFERENTIAL SPIDER
83
DIFFERENTIAL PINION
85
SPHERICAL WASHER
87
SIDE GEAR
89
THRUST WASHER2.0 MM
91
TAPERED ROLLER BEARING
91
TAPERED ROLLER BEARING
91
TAPERED ROLLER BEARING
91
TAPERED ROLLER BEARING
94
RING GEAR AND PINION RATIO 7:40,740759 EXCEPT FOR IDENT NO. 501456-599999
94
RING GEAR AND PINION RATIO 7:40,740759 EXCEPT FOR IDENT NO. 501456-599999
96
LOCK
98
SCREW
100
CYLINDR. ROLLER BEARING DRIVE PINION BEARING, 600252
102
LOCK RING BEARING BRACKET,4 972621
104
LOCK
106
SPACER WASHER1.00 MM
106
SPACER WASHER , Replaced By: A3603350052
108
SPACER WASHER0.2 MM, 000200
108
SPACER WASHER0.50 MM
108
SPACER WASHER0.10 MM
110
CYLINDR. ROLLER BEARING , 600252
110
CYLINDR. ROLLER BEARING DRIVE GEAR
112
ANGULAR CONTACT BEARING
114
SPACER RING
116
SPACER WASHER0.25 MM
116
SPACER WASHER AS REQUIRED 0.50 MM
116
SPACER WASHER0.10 MM
119
FLANGE
121
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
123
SCREW PIPE ELBOW TO BRACKET M 10X50
123
SCREW , Replaced By: N304017010053
123
SCREW , Replaced By: N304017010030
126
SEAL RING
126
SEAL RING
126
SEAL RING , Replaced By: A0119977447
126
SEAL RING
128
FLANGE , 600252
130
PROTECTIVE PLATE
133
NUT
133
NUT , Replaced By: A3853510372
999
BEARING BRACKET TO BRAKE SHAFT
999
THRUST RING RIGHT
999
REAR AXLE WITH BRAKES,RATIO: 40:7, 600252
999
SPACER WASHER , Replaced By: A6703530552
999
SPACER WASHER , Replaced By: A6703530652
999
THRUST WASHER , Replaced By: A6703533752
999
THRUST WASHER , Replaced By: A6703530752
999
FLANGE , Replaced By: A3583500045
999
THRUST RING RIGHT
999
THRUST RING LEFT
999
SPACER WASHER AS REQUIRED, STEEL 10.26 MM
999
SPACER WASHER AS REQUIRED, STEEL 10.22 MM
999
SPACER WASHER AS REQUIRED, STEEL 10.18 MM
999
SPACER WASHER AS REQUIRED 10.14 MM
999
SPACER WASHER AS REQUIRED 10.50 MM
999
SPACER WASHER AS REQUIRED 10.46 MM
999
SPACER WASHER AS REQUIRED 10.42 MM
999
DIFFERENTIAL PINION , Replaced By: A3023530014
999
SPACER WASHER AS REQUIRED, STEEL 10.38 MM
999
SIDE GEAR , Replaced By: A3583530015
999
SPACER WASHER AS REQUIRED 10.34 MM
999
SPACER WASHER AS REQUIRED 10.30 MM
999
SPHERICAL WASHER , Replaced By: A3523530024
999
PIN , Replaced By: A3523510174
999
SCREW PLUG , Replaced By: A0009972632
999
SEAL RING , Replaced By: A0019973247
