Поз.
Артикул
Описание

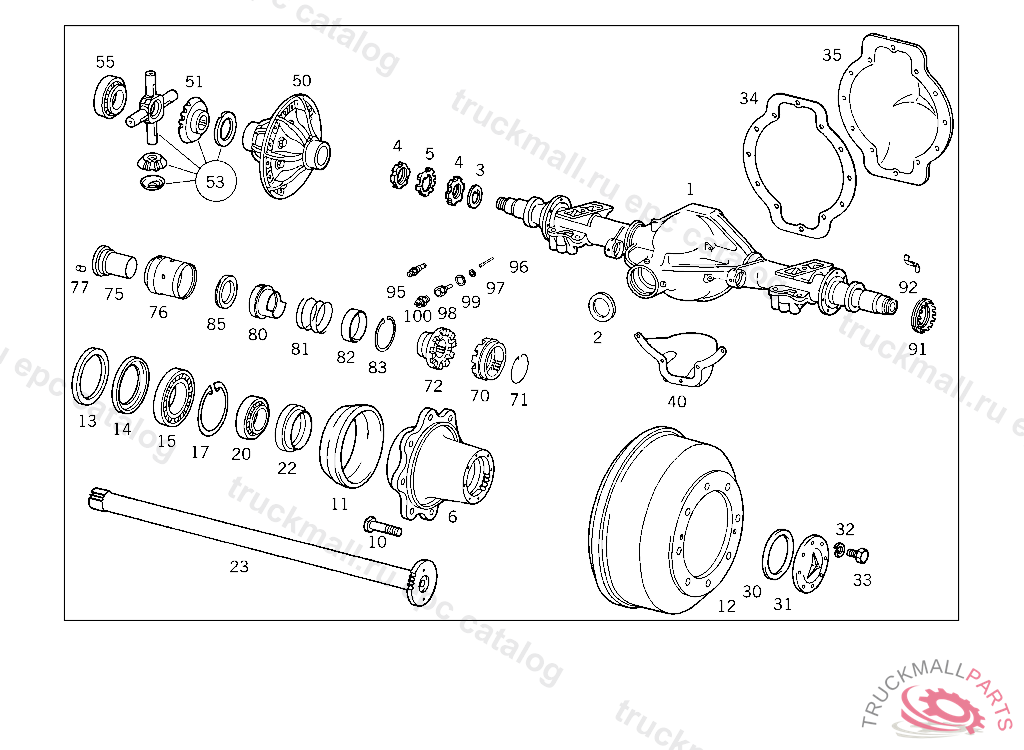

1
AXLE HOUSING
1
AXLE HOUSING
1
AXLE HOUSING , 744.303 2 068748 744.304 3 094986,2 068756 744.305 3 094794 744.408,409 2 069425
2
THRUST RING LEFT AND RIGHT
3
SPACER WASHER REAR AXLE SHAFT
4
GROOVED NUT REAR AXLE SHAFT
5
LOCK PLATE REAR AXLE SHAFT
6
WHEEL HUB LEFT AND RIGHT
6
WHEEL HUB , Replaced By: A3523500935
10
WHEEL MOUNTING BOLT
10
WHEEL MOUNTING BOLT , Replaced By: A3764020071
11
OIL COLLECTOR LEFT AND RIGHT
11
OIL COLLECTOR LEFT AND RIGHT
12
BRAKE DRUM REAR AXLE SHAFT
13
REPAIR KIT WHEEL HUB
13
SEAL RING , Replaced By: A3833500068
14
SPACER RING WHEEL HUB
15
TAPERED ROLLER BEARING WHEEL HUB
15
TAPERED ROLLER BEARING WHEEL HUB
17
LOCK RING WHEEL HUB
20
TAPERED ROLLER BEARING WHEEL HUB
20
TAPERED ROLLER BEARING WHEEL HUB
20
TAPERED ROLLER BEARING WHEEL HUB
22
SPACER TUBE WHEEL HUB
23
REAR AXLE SHAFT DIFFERENTIAL GEAR
23
REAR AXLE SHAFT
30
GASKET COVER TO WHEEL HUB
31
HUB CAP WHEEL HUB
31
HUB CAP
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
33
SCREW COVER TO WHEEL HUB
33
SCREW CLAMP TO BRACKET AND TO PIPE
34
GASKET
34
GASKET
35
COVER REAR AXLE HOUSING
35
COVER REAR AXLE HOUSING
35
COVER ,2 571534, Replaced By: A6163500021, +012N914112010016
35
COVER , UP TO REAR AXLE WITH CAST-IN NO.360 351 00 05
40
PROTECTIVE PLATE AXLE HOUSING,REAR
50
DIFFERENTIAL CASE , Replaced By: A3833502223
50
DIFFERENTIAL GEAR DIFFERENTIAL GEAR TO HOUSING
50
DIFFERENTIAL GEAR , Replaced By: A6763503223
51
SIDE GEAR , Replaced By: A3453537315
53
REPAIR KIT DIFFERENTIAL GEAR
55
TAPERED ROLLER BEARING DIFFERENTIAL GEAR
55
TAPERED ROLLER BEARING DIFFERENTIAL GEAR
70
COUPLING (DOG COUPLING)
71
WIRE RING CLUTCH TO DIFFERENTIAL GEAR
72
FOLLOWER DIFFERENTIAL LOCK, FROM AXLE 3 152507
72
FOLLOWER , FROM AXLE 4 143051 UP TO AXLE 3 152506, Replaced By: A3833530436, +001A3833530125, +001A3833530439
75
SPACER TUBE DIFFERENTIAL LOCK,2 437325
75
BUSHING DIFFERENTIAL LOCK,2 437324
76
CYLINDER DIFFERENTIAL LOCK
76
CYLINDER DIFFERENTIAL LOCK,2 437324
76
CYLINDER , Replaced By: A6173530055
77
PIN DIFFERENTIAL LOCK
80
PISTON , Replaced By: A3533530357, +001A3533530274, +001A6163530184
80
PISTON
81
SPRING DIFFERENTIAL LOCK
82
SPACER TUBE DIFFERENTIAL LOCK, FIRST EXHAUST STOCK OF OLD PARTS UP TO FRONT AXLE F 0028733
83
LOCK RING DIFFERENTIAL LOCK, FIRST EXHAUST STOCK OF OLD PARTS UP TO FRONT AXLE F 0028733
85
BOOT , Replaced By: A0129974947
85
SEAL RING DIFFERENTIAL LOCK
91
SCREW COLLAR , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO AXLE 3 152506, Replaced By: A3833530125
91
SCREW COLLAR DIFFERENTIAL GEAR ADJUSTMENT
92
LOCK DIFFERENTIAL GEAR ADJUSTMENT
95
FITTING
96
PIN AT FITTING TO 353 353 02 57
96
PIN AT FITTING TO 353 353 03 57
97
SEAL RING FITTING TO AXLE HOUSING
98
FITTING SHIFTING CYLINDER
98
FITTING SHIFTING CYLINDER,2 514776
99
SEAL RING VALVE TO VALVE,K 025179
100
SWITCH SOLENOID VALVE
999
SCREW COVER TO REAR AXLE HOUSING TO 615 350 04 21,615 351 07 08
999
LOCK WASHER FITTING TO BRACKET
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
NUT STRAP TO SUPPORT
999
REAR AXLE SHAFT WITH SERRATION
999
DIFFERENTIAL GEAR
999
DIFFERENTIAL GEAR , Replaced By: A6763501923
999
RING GEAR AND PINION RATIO 7:40, 797910
999
NUT , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
AXLE HOUSING WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS
999
AXLE HOUSING WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS, L/LP 353 FROM CHASSIS 983365,LA 353/358 FROM CHASSIS 985443,L/LP FROM CHASSIS 984783,ALL 50/60 FROM CHASSIS 986144
999
REAR AXLE SHAFT
999
THRUST RING RIGHT
999
THRUST RING , Replaced By: A3523560415
999
THRUST RING RIGHT
999
THRUST RING LEFT
999
RING GEAR AND PINION , Replaced By: A3643500439
999
OIL COLLECTOR
999
STUD
999
REPAIR KIT , Replaced By: A3024203138
999
SCREW , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501414,FROM CHASSIS 910370 AND 501415-599999 SEE SPARE PARTS LIST 744.3
999
BRAKE ANCHOR PLATE LEFT
999
BRAKE ANCHOR PLATE RIGHT
999
REPAIR KIT BRAKE READJUSTMENT
999
BRAKE ANCHOR PLATE , Replaced By: A3024204117
999
DIFFERENTIAL PINION , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE 587469
999
RING GEAR AND PINION RATIO: 7:48
999
RING GEAR AND PINION RATIO: 7:43
999
SEAL RING FITTING
999
TAPERED ROLLER BEARING
999
TAPERED ROLLER BEARING
999
TAPERED ROLLER BEARING
999
TAPERED ROLLER BEARING
