Поз.
Артикул
Описание

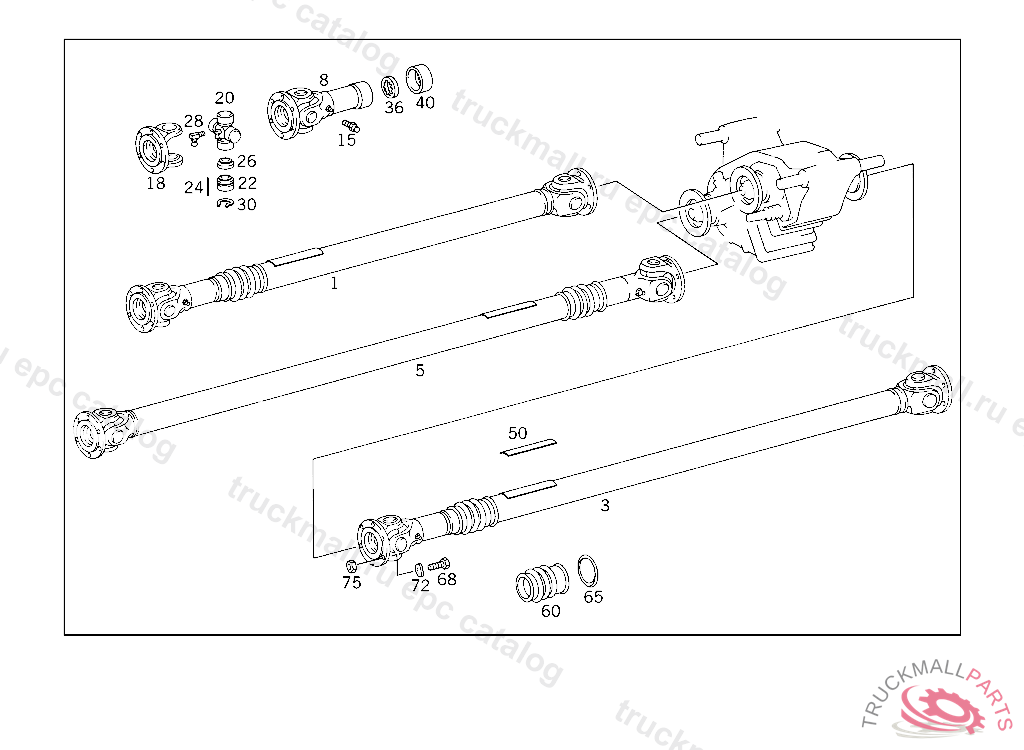

1
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE L678 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
3
PROPELLER SHAFT FROM TRANSFER CASE TO REAR AXLE 1418 MM,4 477511
3
PROPELLER SHAFT FROM TRANSFER CASE TO REAR AXLE 1375 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PROPELLER SHAFT L1085 MM, FROM TRANSFER CASE TO FRONT AXLE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
UNIVERSAL JOINT YOKE
15
GREASE NIPPLE
15
GREASE NIPPLE , Replaced By: N071412008102
18
DRIVE FLANGE
20
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
22
BEARING BUSHING
24
NEEDLE SET164 PIECES, BEARING BUSHING O..D.,38 MM
26
EXPANSION PLUG
28
GREASE NIPPLE
30
SNAP RING2.750 MM
30
SNAP RING2.700 MM
30
SNAP RING2.650 MM
30
SNAP RING2.600 MM
30
SNAP RING2.550 MM
30
SNAP RING2.500 MM
36
SEAL RING , PROPELLER SHAFT WITH BOOT
40
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
50
BALANCING PLATE AS REQUIRED 20 MM
60
BOOT
65
WIRE RING , WITH BOOT
68
HEX. HEAD SCREW. SCREW PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, LOCK WASHER MUST NOT BE INSTALLED
68
SCREW , Replaced By: A3539900001
72
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
75
NUT FROM PROPELLER SHAFT TO FRONT AXLE
999
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
999
CLAMP , WITH BOOT
