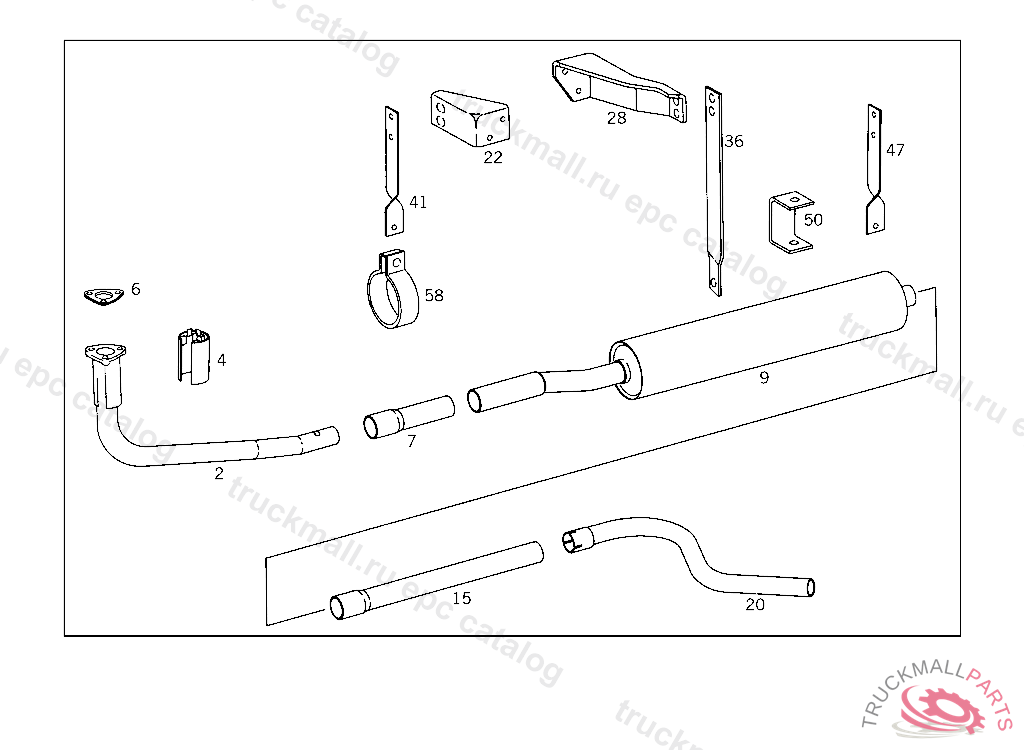

Поз.
Артикул
Описание
2
EXHAUST PIPE , Replaced By: A3604900619
2
EXHAUST PIPE FRONT,4 666521
4
PROTECTIVE PLATE ,FB377267
4
PROTECTIVE PLATE , Replaced By: A3834900130
4
PROTECTIVE PLATE INTERMEDIATE PIECE
4
PROTECTIVE PLATE FRONT EXHAUST PIPE
6
FLANGE GASKET , Replaced By: A4424920280
6
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
7
CONNECTOR , Replaced By: A3224920207
7
CONNECTOR , Replaced By: A3224920207
7
CONNECTOR FRONT,505802
9
EXHAUST MUFFLER WITH PIPE , Replaced By: A3604900515
9
EXHAUST MUFFLER WITH PIPE FRONT, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
15
CONNECTOR REAR
20
REAR EXHAUST PIPE REAR, FROM IDENT NO. 685038 ALSO INSTALLED ON 500001-599999
22
SUPPORT EXHAUST PIPE,4 613839
36
BRACKET EXHAUST PIPE SUSPENSION, 685037
41
BRACKET EXHAUST PIPE, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
58
CLAMP REAR EXHAUST PIPE TO BRACKET
58
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
58
CLAMP , Replaced By: N000000001642
58
CLAMP60.5 MM,4 613839
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW PIPE CLAMP
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW , Replaced By: N304017010002
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW STRAP TO BRACKET
999
EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
999
BRACKET EXHAUST PIPE
999
SUPPORT REAR EXHAUST PIPE,5 193594
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
SUPPORT REAR EXHAUST PIPE TO FRAME
999
REAR EXHAUST PIPE REAR, UP TO IDENT NO. 685037 EXCEPT FOR:500001-599999
999
REAR EXHAUST PIPE , Replaced By: A3604923904
999
BRACKET REAR EXHAUST PIPE, 872788
999
REAR EXHAUST PIPE REAR, UP TO IDENT NO. 685037 EXCEPT FOR:500001-599999
999
REAR EXHAUST PIPE , Replaced By: A3604922604
999
BRACKET , Replaced By: A3814923841
999
SUPPORT REAR EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A3834900001, +001A3814920001
999
BRACKET FRONT EXHAUST PIPE, 872788
999
SUPPORT REAR SPRING BRACKET
999
SUPPORT HELPER SPRING BRACKET, UP TO IDENT NO. 685037 EXCEPT FOR 500001-599999
999
RUBBER BUFFER BRACKET TO SUPPORT
999
RUBBER BUFFER EXHAUST MUFFLER
