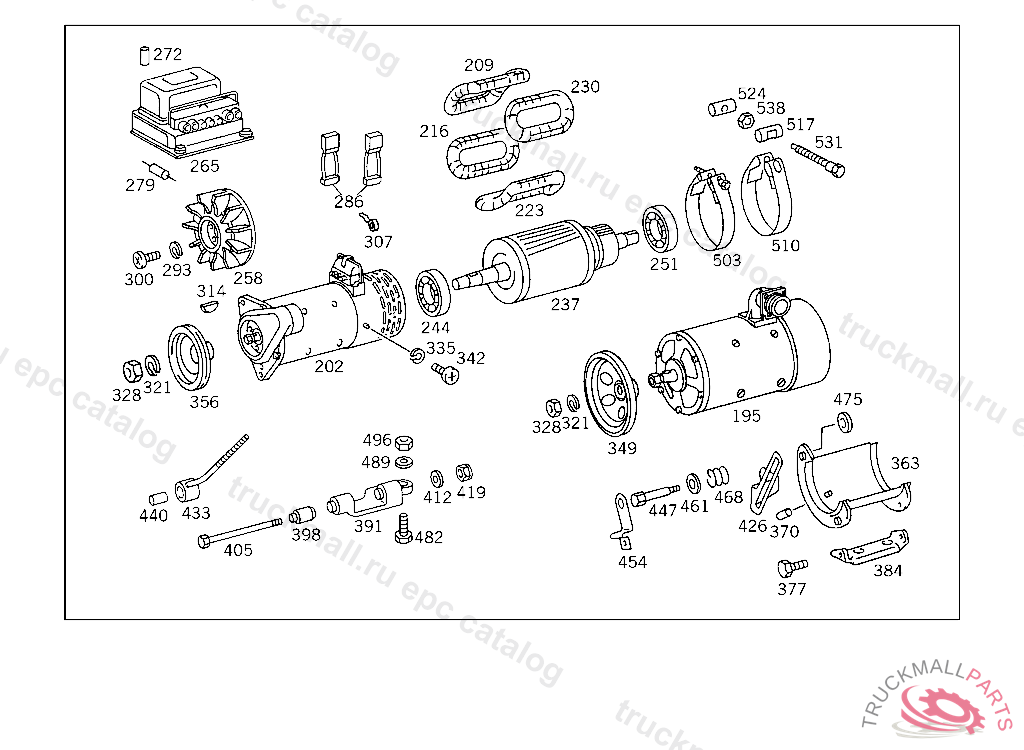

Поз.
Артикул
Описание
195
ALTERNATOR600 W/24 V
202
ALTERNATOR *** 24 V/38 A
209
COIL
216
COIL
223
COIL
230
COIL
237
ARMATURE
244
GROOVED BALL BEARING
251
GROOVED BALL BEARING
258
FAN
265
REGULATOR AND CUT-OUT
272
FUSE50 A
279
RESISTOR
286
CARBON BRUSH SET ,9500212
293
LOCK WASHER BRACKET TO STEERING COLUMN END
300
SCREW MAIN CABLE HARNESS
307
SPRING
314
WOODRUFF KEY POWER STEERING PUMP
321
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
328
NUT
335
LOCK WASHER BRACKET TO STEERING COLUMN END
342
SCREW MAIN CABLE HARNESS
349
PULLEY
356
PULLEY
363
BEARING BRACKET BOTTOM
370
CYLINDRICAL PIN
377
SCREW BEARING BRACKET TO SUPPORT
384
SUPPORT
391
BRACKET
398
BUSHING
405
SCREW
405
SCREW BRACKET TO APPARATUS SUPPORT
405
SCREW , Replaced By: N304017010051
412
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
419
NUT AIR CLEANER ELEMENT
426
CLAMP
433
CLAMPING BOLT (CLAMPING BOLT)
433
CLAMPING BOLT , Replaced By: A3551500372
433
CLAMPING BOLT , Replaced By: A3551500372
433
CLAMPING BOLT , Replaced By: A3521502372
440
BUSHING
447
PIN ,000032
454
LOCK
461
WASHER
468
SPRING
475
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
482
SCREW
489
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
496
NUT BRACKET TO SUPPORT AND TO END PIECE
503
STRAP
510
STRAP
517
PIN
524
PIN
531
SCREW , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3271550723
538
SPACER RING
999
WASHER HORN TO ENGINE CROSS MEMBER
999
WASHER CLAMPING BOLT TO CYLINDER CRANKCASE
999
BRACKET , 081272, Replaced By: A3521500873, +001A3279900640, +002N000931010337, +001N913002010001
999
STARTING MOTOR , Replaced By: A0031518801
999
STARTING MOTOR , Replaced By: A0031518601
999
STARTING MOTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 105724, Replaced By: A0031517401
999
ALTERNATOR , Replaced By: A0041547902
999
ALTERNATOR ,049383
999
V-BELT , Replaced By: A0059972092
999
SCREWTO 004 151 58 01
999
STARTING MOTOR
999
SCREWTO 003 151 87 01
999
SPRINGTO 004 154 75 02
999
REPAIR KITTO 003 151 04 01/74 01
999
SPRINGTO 004 151 58 01
999
BUSHINGTO 004 151 58 01/003 151 87 01
999
SPRINGTO 003 151 87 01
999
BEARINGTO 004 151 58 01
999
CARBON BRUSH SETTO 000 151 33 01, 001 151 38 01
999
ARMATURETO 001 151 41 01,001 151 38 01
999
CLAMPING BOLT ARMATURE TO 004 151 58 01/003 151 87 01
