Mercedes A0009907420 - БОЛТ М8

OM 366 LA 356.977

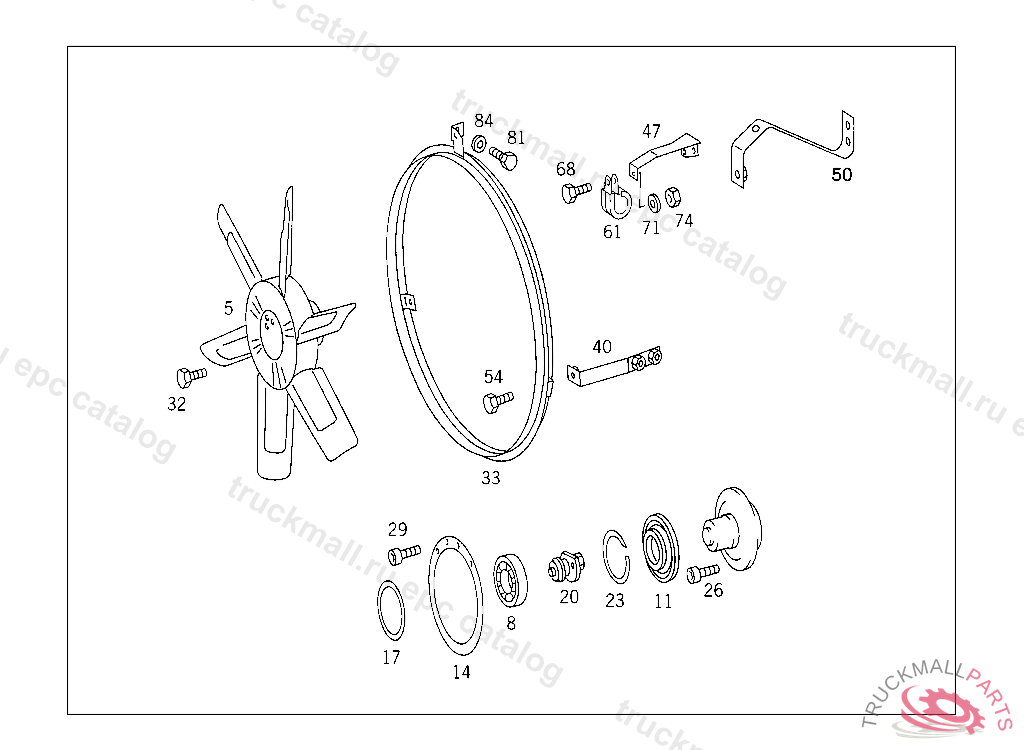

20 ENGINE COOLING SYSTEM - 030 FAN

Поз.
Артикул
Описание
5
A3662004023
FAN POWER SAVER, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
A0019816027
ANGULAR CONTACT BEARINGTO 001 205 95 06
11
A0039979340
SEAL RING
14
A0002060680
GASKET
17
A0002060380
GASKET
20
A0002000072
CLAMPING PIECE (SLIDE)
23
A0002050173
LOCK AS REQUIRED 2.1 MM
23
A0002050073
LOCK AS REQUIRED 2.0 MM
23
A0002050373
LOCK AS REQUIRED 2.3 MM
23
A0002050273
LOCK AS REQUIRED 2.2 MM
26
A0009907420
SCREW
29
A0019900012
SCREW COVER TO FAN TO 001 205 95 06
32
N910105008011
SCREW STOP TO BATTERY CASE
33
A3662000695
AIR BAFFLE
40
A3662001140
BRACKET
54
N910105010006
SCREWM 10X20
81
N910105008011
SCREW STOP TO BATTERY CASE
84
N007349008003
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
A0005832235
RECEPTACLE SILICONE GREASE
