Поз.
Артикул
Описание

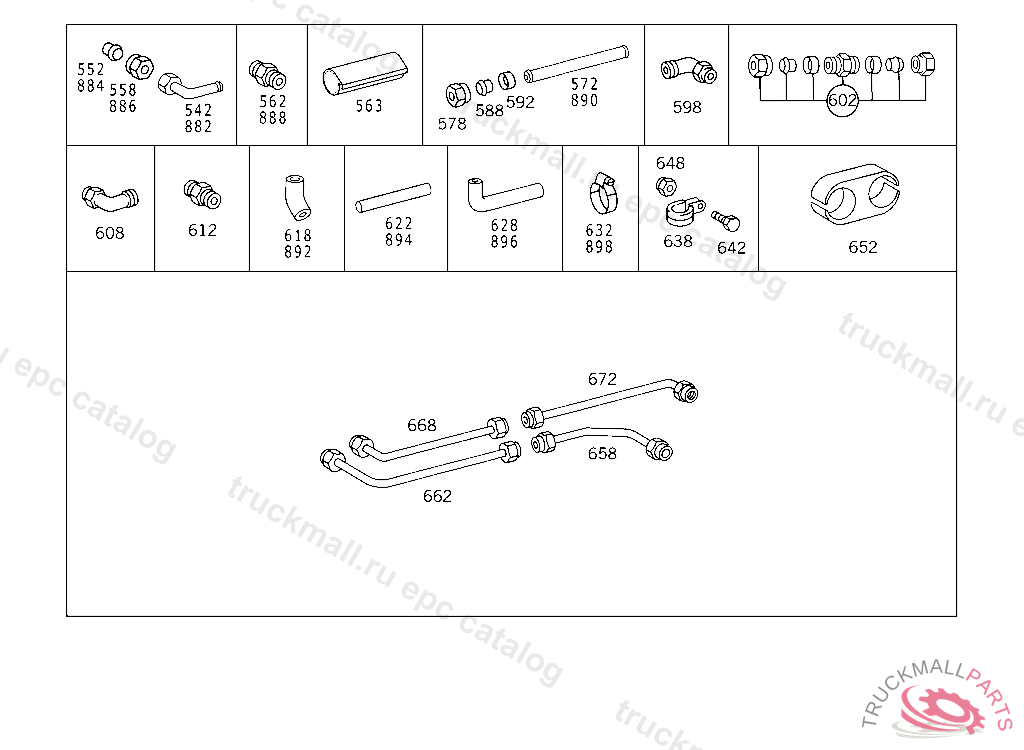

542
TUBE
542
TUBE
552
GLAND , Replaced By: A0019901267
558
NUT LINE CONNECTION
558
UNION NUT LINE CONNECTION, Replaced By: N000000006243
562
CONNECTOR COMPRESSED AIR LINE
562
CONNECTOR COMPRESSED AIR LINE
563
HOSE I.D., 30MM, ORDER BY THE METER
572
LINE COMPRESSED AIR LINE 1640 MM
572
LINE COMPRESSED AIR LINE 1795 MM
572
LINE COMPRESSED AIR LINE
572
LINE COMPRESSED AIR LINE
572
LINE COMPRESSED AIR LINE 1470 MM
572
LINE COMPRESSED AIR LINE
578
UNION NUT LINE MOUNTING
578
UNION NUT LINE CONNECTION
578
UNION NUT LINE CONNECTION, Replaced By: N000000006239
588
GLAND , Replaced By: A0019901967
588
SEAL CONE LINE CONNECTION
592
SEAL CONE LINE MOUNTING
592
GLAND , Replaced By: A0019901167
598
ELBOW FITTING DELIVERY LINE TO PUMP
602
FITTING (PARTS KIT),LINE RUPTURE
608
FITTING LINE CONNECTION
612
CONNECTION FITTING LINE CONNECTIONS
612
CONNECTION FITTING , Replaced By: N003902018002
618
MOLDED HOSE , Replaced By: A3015010782
622
HOSE
628
HOSE COMPRESSED AIR LINE
632
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
632
CLAMP HOSE TO FITTING AND TO OIL TANK
632
CLAMP , Replaced By: N000000000672
632
CLAMP HOSE FASTENING 50-70X13 MM
638
CLAMP STAY TO BRACKET
638
CLAMP LINE MOUNTING SA 088202/01
638
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
638
CLAMP LINE MOUNTING
638
CLAMP SAFETY VALVE AT BRACKET
642
SCREW PIPE CLAMP
642
SCREW COVER PLATE TO BRACKET
642
SCREW LICENSE PLATE TO BRACKET
642
SCREW , Replaced By: N304017005011
642
SCREW , Replaced By: N304017006020
642
SCREW , Replaced By: N304017008021
648
NUT , Replaced By: N913004006001
648
NUT , Replaced By: N913004008001
648
NUT TWO-WAY VALVE TO BRACKET
648
NUT PUMP TO BRACKET
652
GROMMET LINE MOUNTING
658
LINE FROM DELIVERY LINE TO CONNECTOR II
662
LINE FROM CONNECTOR II TO CONNECTOR III
668
LINE FROM CONNECTOR XVII TO CONNECTOR XVIII
672
LINE FROM CONNECTOR TO OIL TANK
882
TUBE
882
TUBE
884
GLAND , Replaced By: A0019901267
886
UNION NUT LINE CONNECTION, Replaced By: N000000006243
886
NUT LINE CONNECTION
888
CONNECTOR COMPRESSED AIR LINE
888
CONNECTOR COMPRESSED AIR LINE
890
LINE COMPRESSED AIR LINE
890
LINE COMPRESSED AIR LINE 1470 MM
890
LINE COMPRESSED AIR LINE
890
LINE COMPRESSED AIR LINE
892
MOLDED HOSE , Replaced By: A3015010782
894
HOSE
896
HOSE COMPRESSED AIR LINE
898
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
898
CLAMP HOSE TO FITTING AND TO OIL TANK
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
LINE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
VALVE PRESSURE RELIEF VALVE
999
PUMP (METERING PUMP)
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET
999
BRACKET
999
BRACKET AT BRACKET
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
FLEXIBLE METAL TUBE CONNECTOR
999
FLEXIBLE METAL TUBE FRONT LEFT
999
SEPARATOR (WATER SEPARATOR)
999
VALVE COOLING AIR
999
VALVE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
NOZZLE
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
CONNECTOR HEATER PLUG
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
ACTIVATING AGENT
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
RUBBER BUFFER COVERING TO FRAME
999
FITTING LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET REAR EXHAUST PIPE,079546
999
CONNECTOR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
