Поз.
Артикул
Описание

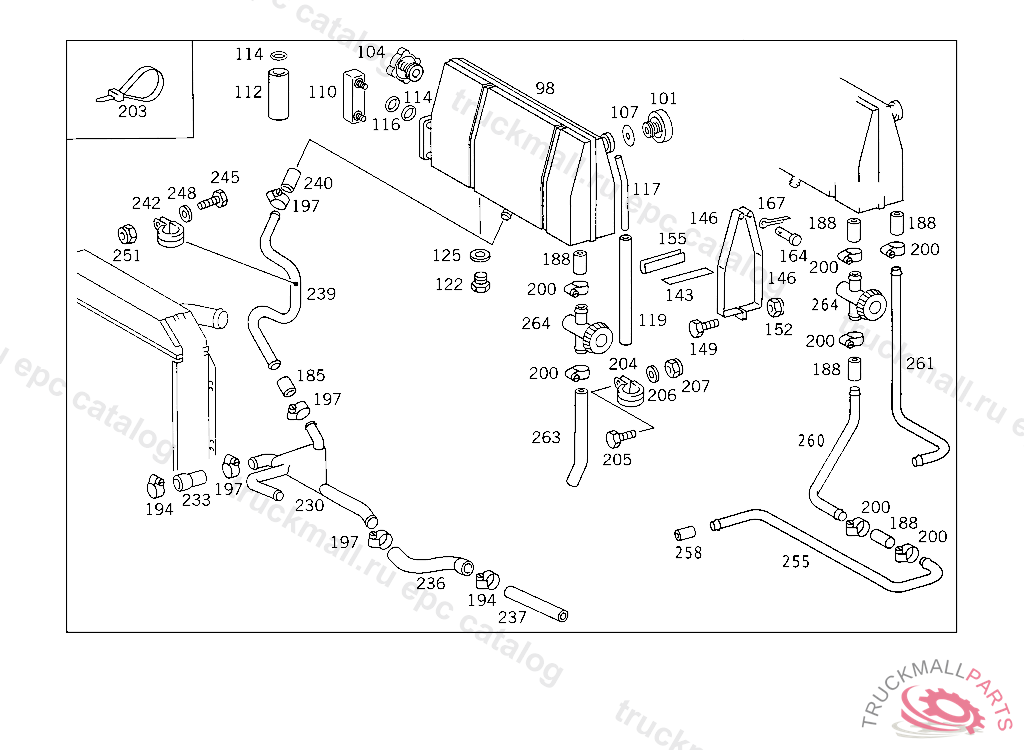

98
TANK EXPANSION TANK
98
TANK , Replaced By: A3575001049
98
TANK COOLING WATER EXPANSION
101
RADIATOR CAP FILLER NECK
101
RADIATOR CAP
104
RADIATOR CAP FILLER NECK
104
RADIATOR CAP FILLER NECK
107
GASKET O.D., 37 MM
107
GASKET O.D., 52 MM
110
SIGHT GLASSTO 357 500 10 49
112
SIGHT GLASSTO 357 500 10 49
114
SEAL RINGTO 357 500 10 49
116
SEAL RINGTO 357 500 10 49
117
DRAIN PIPE
119
HOSE OVERFLOW TO 357 500 10 49
119
HOSE
119
HOSE , Replaced By: A0219977682
122
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
125
SEAL RING WATER LEVEL SENSOR
143
SHIM EXPANSION TANK TO BRACKET
146
BRACKET STRAP TO EXPANSION TANK
146
BRACKET STRAP TO EXPANSION TANK
149
SCREW , Replaced By: N304017008021
149
SCREW PIPE CLAMP
152
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
NUT , Replaced By: N913004008001
155
EDGE GUARD SECTION FRONT PANEL,339827 ORDER BY THE METER
164
PIN STRAP TO SUPPORT
167
COTTER PIN ROD TO INTERMEDIATE LEVER
185
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
185
HOSE CONNECTION OF OIL FILLER PIPES, ORDER BY THE METER
188
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
188
HOSE , Replaced By: N900271015037
194
CLAMP , Replaced By: N000000000672
194
CLAMP , Replaced By: N000000000674
194
CLAMP HOSE FASTENING 50-70X13 MM
194
CLAMP HOSE 70-90X13 MM
197
CLAMP , Replaced By: N000000000671
197
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
200
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
200
CLAMP HOSE TO FITTING AND TO OIL TANK
203
LOOM TIE LINE MOUNTING 280 MM
204
CLAMP LINE MOUNTING
205
SCREW CAB FLOOR COVERING M 6X25
206
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
207
NUT PUMP TO BRACKET
230
SEPARATOR (BUBBLE SEPARATOR)
230
SEPARATOR , Replaced By: A3575000869
230
SEPARATOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3575001169
233
HOSE FEED & RETURN LINES TO HEAT EXCHANGER EXCHANGER, TO BE ADAPTED DURING ASSEMBLY
236
HOSE RETURN LINE TO THERMOSTAT, ORDER BY THE METER
237
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO ENGINE
239
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO EXPANSION TANK
240
HOSE FEED LINE TO TRANSMISSION
242
CLAMP SAFETY VALVE AT BRACKET
242
CLAMP , Replaced By: N916016038201
245
SCREW , Replaced By: N304017008021
245
SCREW CAB FLOOR COVERING M 6X25
245
SCREW PIPE CLAMP
248
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
251
NUT PUMP TO BRACKET
255
COOLING WATER PIPE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,086182
255
COOLING WATER PIPE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE 15X1.5X1290 MM,086181
258
HOSE , Replaced By: A3018320523
260
COOLING WATER PIPE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE 15X1.5X1170,076194 ALSO INSTALLED IN:075800, 075853, 075889
260
COOLING WATER PIPE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE,086182
260
COOLING WATER PIPE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE 15X1.5X1230 MM,076193 EXCEPT:075800, 075853, 075889
260
COOLING WATER PIPE (DE-AERATION LINE) FROM EXPANSION TANK TO ENGINE 15X1.5X1335,076194 ALSO INSTALLED IN:075800, 075853, 075889
261
COOLING WATER PIPE FROM COMPRESSOR TO EXPANSION TANK 15X1.5X1420,076193 EXCEPT:075800, 075853, 075889
263
HOSE HEATING PIPE
264
VALVE CONTROL VALVE, NOT USED
999
BEARING BRACKET. STAY RIGHT TOP
999
BRACKET , Replaced By: A3604922819
