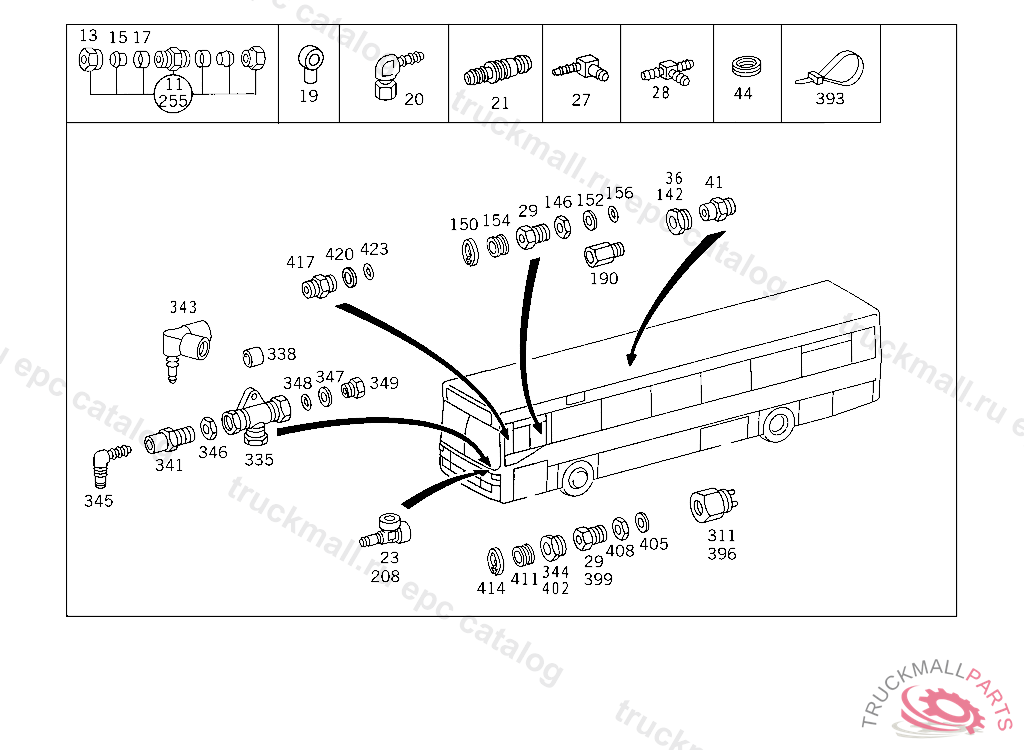

Поз.
Артикул
Описание
11
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
FITTING (PARTS KIT),LINE RUPTURE
11
TS DOUBLE FITTING SOLENOID VALVE
11
FITTING (PARTS KIT),LINE RUPTURE
13
UNION NUT
13
UNION NUT LINE CONNECTION
13
UNION NUT LINE CONNECTION
13
UNION NUT LINE CONNECTION, Replaced By: N000000006239
15
GLAND , Replaced By: A0019901667
15
SEAL CONE
15
GLAND , Replaced By: A0019901967
15
GLAND LINE CONNECTION
15
SEAL CONE LINE CONNECTION
17
SLEEVE FEED
17
SLEEVE LINE CONNECTION
17
SLEEVE LINE CONNECTION
17
SLEEVE LEAK LINE
19
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
19
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
20
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 14 / 6 MM
20
ELBOW FITTING 3/2-WAY VALVE BREATHING
21
CONNECTOR , Replaced By: A0029905478
21
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
21
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
21
CONNECTORTO M22 / 4MM / VOSS 230
21
CONNECTOR HOSE WIDTH, 6 MM, TO M22
21
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
21
CONNECTOR , Replaced By: A0029905378
23
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
27
ELBOW FITTING ELECTRICAL COMPARTMENT
27
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
27
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
27
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
27
ELBOW FITTING , Replaced By: A0049905371
27
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
28
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
29
ADAPTER FITTING TEST CONNECTION
36
SCREW. UNION SCREW LINE CONNECTION
36
SCREW. UNION SCREW , Replaced By: A0009973734
36
SCREW. UNION SCREW LINE CONNECTION
41
FITTING LINE CONNECTION
44
GROMMET CABLE THROUGH ELECTRICAL COMPARTMENT,002062 ON VEHICLES HAVING NO MERCEDES-BENZ BODY UP TO IDENT NO. 017956 EXCEPT FOR 017867,017919
142
SCREW. UNION SCREW LINE CONNECTION
142
SCREW. UNION SCREW , Replaced By: A0009973734
146
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
146
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
150
LOCK LINE CONNECTION
150
LOCK , Replaced By: A0009945448
152
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
152
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
154
LOCK RING LINE CONNECTION
154
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
154
SEAL RING , Replaced By: A0009940747
154
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
156
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
190
FITTING PRESSURE REGULATOR,CONNECTION: "4",5 161700
190
FITTING , Replaced By: A6209970072
208
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
255
FITTING (PARTS KIT),LINE RUPTURE
311
PRESSURE SWITCH MAKE PULSE 0.5BAR
335
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
338
VALVE BODYTO 002 429 95 44
341
FITTING LINE CONNECTION
343
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
344
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
345
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
346
NUT CHECK VALVE TO AIR RESERVOIR
347
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
348
O-RING CHECK VALVE TO AIR RESERVOIR
349
SCREW. UNION SCREW LINE CONNECTION
393
LOOM TIE LINE MOUNTING
396
PRESSURE SWITCH MAKE PULSE 0.5BAR
399
ADAPTER FITTING TEST CONNECTION
402
SCREW. UNION SCREW LINE CONNECTION
402
SCREW. UNION SCREW , Replaced By: A0009973734
405
WASHER
408
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
411
SEAL RING , Replaced By: A0009940747
411
LOCK RING LINE CONNECTION
414
LOCK , Replaced By: A0009945448
414
LOCK LINE CONNECTION
417
FITTING (PARTS KIT),LINE RUPTURE
420
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
423
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
FITTING AT BRACKET
999
VALVE BULKHEAD FITTING
