Mercedes A0049901601 - Болт

OM 366 LA 357.909

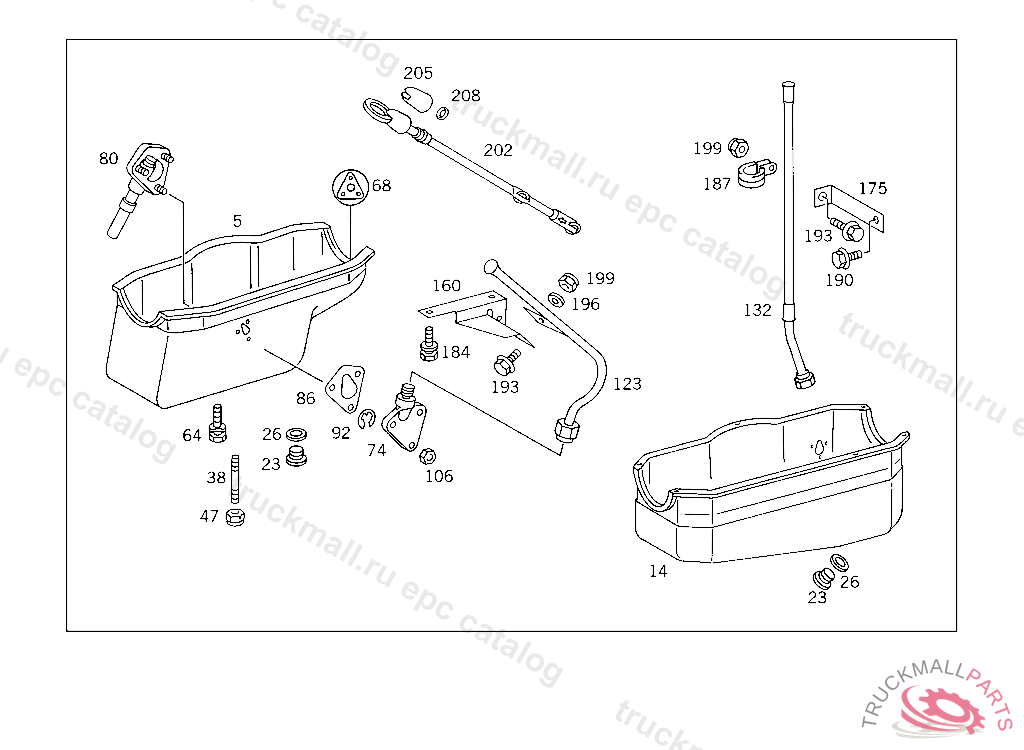

01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY IL. 1

Поз.
Артикул
Описание
23
A4039970032
SCREW PLUG
26
N007603026109
SEAL RING OIL DRAIN 26X34 MM
38
N000835008144
STUD HEATING WATER CONNECTION TO CYLINDER HEAD
38
N000939008143
STUD BOLTM 8X45, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
47
N914440008000
NUT HEAT PROTECTION PLATE ON EXHAUST PIPE
64
A0049901601
SCREW
68
A3660100780
GASKET KIT OIL PAN
193
N910105008011
SCREW STOP TO BATTERY CASE
199
N910113008001
NUT STRAP TO BRACKET
202
A3640103672
OIL DIPSTICK ,058896
202
A3660103872
OIL DIPSTICK , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 400824YEAR OF MANUFACTURE 1995, Replaced By: A3640103672
205
A3660180006
CAP
208
A0229970148
SEAL RING SHIFTING CYLINDER
