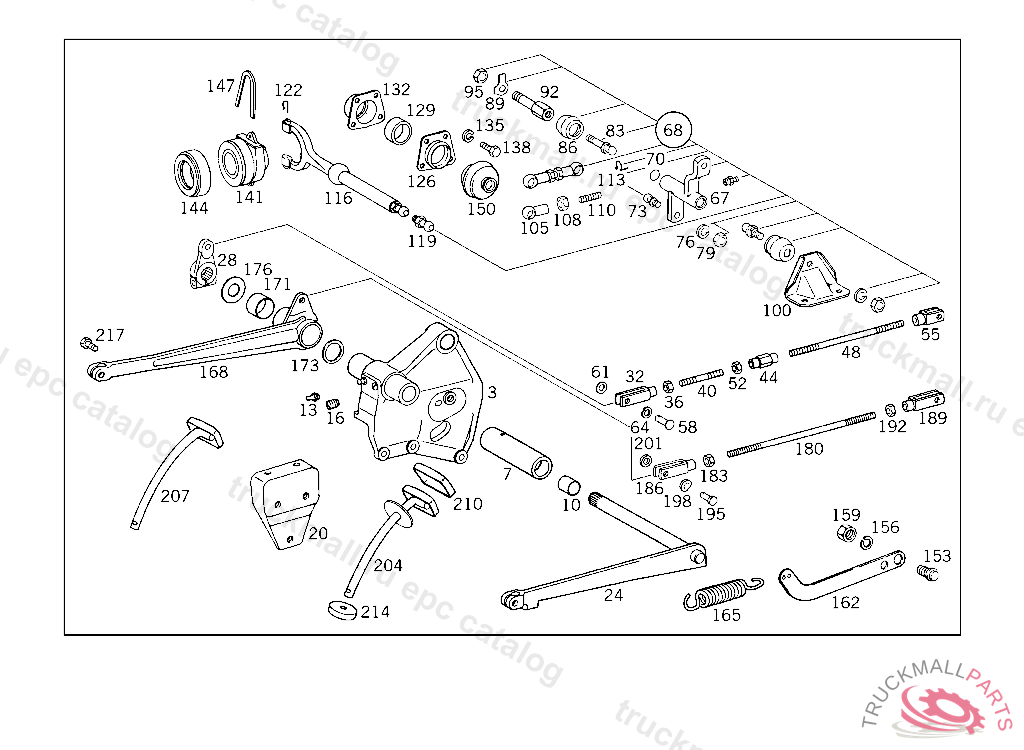

Поз.
Артикул
Описание
3
BEARING BRACKET ,A 042213, Replaced By: A3412907119
3
BEARING BRACKET ,775548, Replaced By: A3522901819, +001A3522910732, +001A3529931310
7
BEARING TUBE , Replaced By: A3442907036
10
BUSHING , Replaced By: A3442940150
10
BUSHING
13
GREASE NIPPLE PROTECTIVE TUBE
16
SCREW
20
REINFORCEMENT AT SIDE MEMBER, UP TO IDENT NO. 775548 EXCEPT FOR 500001-599999
24
PEDAL ,A 006846
24
28
LEVER , Replaced By: A3452931310
32
YOKE PULL ROD TO LEVER
36
NUT BATTERY CABLE
36
NUT BRACKET TO SUPPORT AND TO END PIECE
40
PULL ROD BELT TIGHTENER
44
TURNBUCKLE
48
PULL ROD , Replaced By: N900331010653
48
PULL ROD CLUTCH ACTUATION M10X200/40, TO BE ADAPTED DURING ASSEMBLY
52
NUT L.H. THREAD
55
YOKE PULL ROD TO LEVER
58
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
61
WASHER VIBRATION ABSORBER TO BRACKET
61
WASHER , Replaced By: N000433010510
64
SPRING WASHER , Replaced By: N000137010205
64
SPRING WASHER SHIFTING ROD TO BRACKET
67
LEVER , Replaced By: A3522901728
67
LEVER ,FB507925FB001828
67
LEVER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3525860029
68
REPAIR KIT , Replaced By: A3522905539
68
REPAIR KIT , Replaced By: A3522905639
68
REPAIR KIT CLUTCH ACTUATING PARTS
68
REPAIR KIT CLUTCH ACTUATING PARTS, DELIVER ADDITIONALLY:1X 352 991 09 15,1X 000463 017001,1X 000934 016011,2X 006797 012151,1X 352 991 04 15
70
SNAP RING DOUBLE LEVER TO BRACKET
73
BALL PIVOT RELEASE YOKE
73
BALL PIVOT RELEASE YOKE
76
LOCK WASHER FITTING TO BRACKET
79
NUT , Replaced By: N304035012002
79
NUT
83
BALL PIVOT RELEASE YOKE
83
BALL PIVOT RELEASE YOKE
86
SEAL RING DOUBLE LEVER TO BRACKET
89
LOCK PLATE SHIFT CASE
92
SPACER
92
BALL PIVOT ,FB001827
92
BALL PIVOT , Replaced By: A3529910915
95
NUT , Replaced By: N308673016001
95
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
100
BEARING BRACKET OUTSIDE
100
BEARING BRACKET , Replaced By: A3522932536
100
BEARING BRACKET
105
BALL SOCKET BELT TIGHTENER
108
NUT BRACKET TO EXHAUST PIPE BRACKET
110
PULL ROD CLUTCH ACTUATION M10X200/40, TO BE ADAPTED DURING ASSEMBLY
113
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
116
RELEASE LEVER IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 352 293 03 11,302 991 00 15
116
RELEASE YOKE , Replaced By: A3522930311, +001A3029910015
116
RELEASE YOKE RELEASE LEVER
119
BALL PIVOT ,FB001827
119
BALL PIVOT RELEASE YOKE
119
BALL PIVOT RELEASE YOKE
122
SPRING LOCK RELEASE LEVER TO RELEASE BEARING, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
126
BRACKET OUTSIDE,4 696330
129
BEARING ,763226, Replaced By: A3802540035, +001A3852540051, +001A3802540159
129
BEARING RELEASE YOKE
132
BRACKET INSIDE,4 696330
135
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
138
SCREW PIPE CLAMP
138
SCREW , Replaced By: N304017008021
141
RELEASE BEARING , Replaced By: A3402500215
141
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 473926, Replaced By: A3402500215
141
RELEASE BEARING CLUTCH, UP TO IDENT NO. 4 473926,FROM IDENT NO. SEE MICROFICHE STANDARD
144
RELEASE BEARING , UP TO IDENT NO. 4 473926,FROM IDENT NO. SEE MICROFICHE STANDARD
144
RELEASE BEARING
147
STRIP RELEASE BEARING TO 340 250 02 15, UP TO IDENT NO. 4 473926,FROM IDENT NO. SEE MICROFICHE STANDARD
147
STRIP ,KB846165
150
BOOT , UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION, Replaced By: A3142540197
150
BOOT RELEASE LEVER, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
153
PIN , Replaced By: A3412917074
162
LEVER , Replaced By: A3412917032
165
SPRING , Replaced By: A3769930110
168
PEDAL BRAKE
171
BUSHING
173
SPACER RING AS REQUIRED 3.50 MM
173
SPACER RING PEDAL TO BEARING BRACKET
173
SPACER RING AS REQUIRED 3.25 MM
176
RING AS REQUIRED 3.0 MM
180
PULL ROD BRAKE LINKAGE
183
NUT BRACKET TO SUPPORT AND TO END PIECE
183
NUT BATTERY CABLE
186
YOKE , Replaced By: A0009961501
186
YOKE PULL ROD TO LEVER
189
YOKE , Replaced By: A3419967001
192
NUT L.H. THREAD
195
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
198
SPRING WASHER SHIFTING ROD TO BRACKET
198
SPRING WASHER , Replaced By: N000137010205
201
WASHER , Replaced By: N000433010510
201
WASHER VIBRATION ABSORBER TO BRACKET
204
PEDAL PLATE CLUTCH
207
PEDAL PLATE , Replaced By: A3452907224
207
PEDAL PLATE CLUTCH PEDAL
210
PAD BRAKE AND CLUTCH LEVERS
214
SEAL RING CLUTCH PEDAL AND BRAKE PEDAL
214
SEAL WASHER
217
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
COVERTO 352 250 01 15, UP TO IDENT NO. 145736 ALSO INSTALLED ON: 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
999
SPACER RING PEDAL TO BEARING BRACKET
999
PEDAL PLATE CLUTCH AND BRAKE
999
SPRING (RELEASE SPRING)
999
BEARING OUTSIDE, INAPPLICABLE TO SUPERCHARGING SYSTEM609835
999
BEARING OUTSIDE, UP TO IDENT NO. 148036 EXCEPT FOR 140555,142078
999
PEDAL BRAKE
999
BEARING TUBE
999
BEARING BRACKET ,775548, Replaced By: A3522901919, +001A3522910732, +001A3529931310
999
999
999
BEARING BRACKET PEDAL ASSEMBLY, 775549 RANGE OF DELNERY INCLUDES 1 X 352 323 03 40, 1 X 351 990 32 01, 1 X 913002 02000, 1 X 352 990 35 01, 1 X 913004 016001, UP TO IDENT NO. 802164
999
PEDAL CLUTCH
999
ROD CLUTCH OPERATION
999
LEVER CLUTCH PEDAL RELEASE SPRING, 600777-601108
999
BRACKET INSIDE, INAPPLICABLE TO SUPERCHARGING SYSTEM609835
999
BRACKET RELEASE YOKE TO BELL HOUSING, UP TO IDENT NO. 148036 EXCEPT FOR 140555,142078
999
SEAL RING
999
LEVER BRAKE
999
WASHER REAR AXLE TO TO REAR SPRINGS
999
BALL PIVOT , Replaced By: A3529910515
999
BALL PIVOT DOUBLE LEVER TO TRANSMISSION CASE COVER
999
BALL PIVOT
999
BUSHING
999
SEAL RING RELEASE YOKE
999
BEARING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
LOCK PLATETO 000 261 04 01
999
SCREW MOUNTING AND RAIL TO LEAF SPRING
999
SCREW , Replaced By: N304017010030
999
SCREW , Replaced By: N304017008021
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT STRAP TO SUPPORT,5 149419
999
SCREW REINFORCEMENT TO ROCKER PANEL
999
TOOTHED WASHER ELECTRIC CABLE TO FUSE BOX
999
GREASE NIPPLE , Replaced By: N071412008102
999
GREASE NIPPLE
999
SCREW , Replaced By: N304017010053
999
SCREW PIPE ELBOW TO BRACKET M 10X50
999
NUT STRAP TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT , Replaced By: N910113010000
