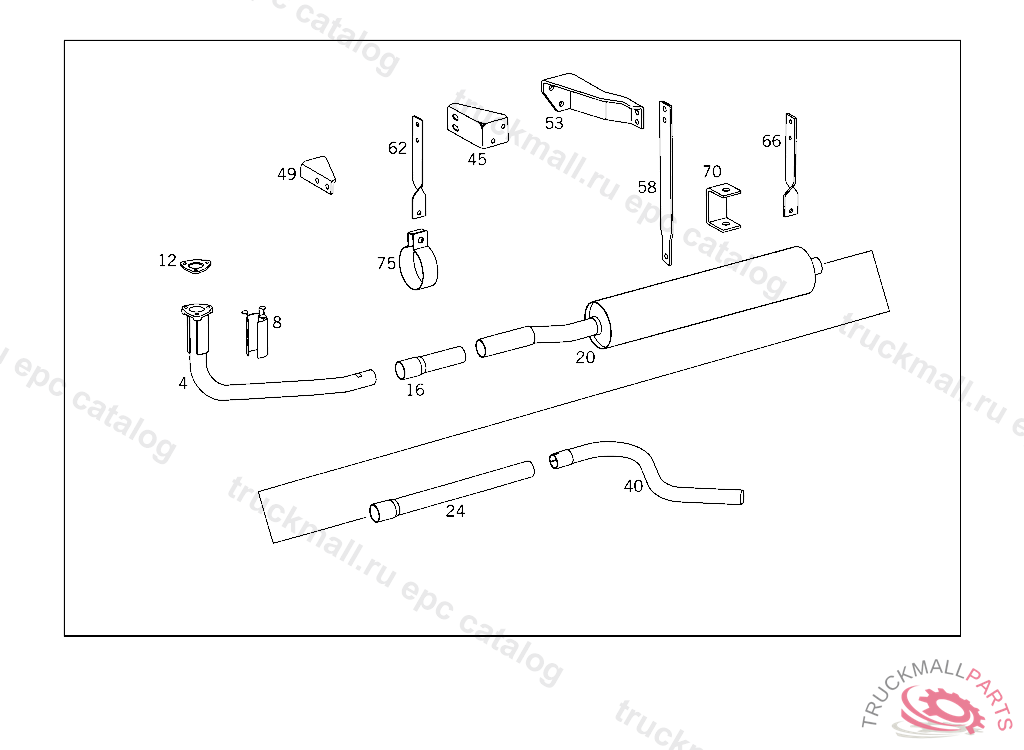

Поз.
Артикул
Описание
4
EXHAUST PIPE FRONT,4 666521
12
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
12
FLANGE GASKET , Replaced By: A4424920280
16
CONNECTOR FRONT,505802
20
EXHAUST MUFFLER WITH PIPE FRONT, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
40
REAR EXHAUST PIPE REAR, FROM IDENT NO. 685038 ALSO INSTALLED ON 500001-599999
45
SUPPORT EXHAUST PIPE,4 613839
49
SUPPORT HELPER SPRING BRACKET, UP TO IDENT NO. 685037 EXCEPT FOR 500001-599999
53
SUPPORT REAR EXHAUST PIPE
58
BRACKET EXHAUST PIPE SUSPENSION, 685037
62
BRACKET EXHAUST PIPE, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
75
CLAMP REAR EXHAUST PIPE TO BRACKET
999
RUBBER BUFFER EXHAUST MUFFLER
999
RUBBER BUFFER BRACKET TO SUPPORT
999
CONNECTOR , Replaced By: A3224920207
999
SUPPORT REAR SPRING BRACKET
999
BRACKET FRONT EXHAUST PIPE, 872788
999
EXHAUST PIPE , Replaced By: A3604900619
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A3604900515
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A3834900001, +001A3814920001
999
EXHAUST PIPE FRONT
999
SUPPORT REAR EXHAUST PIPE
999
CONNECTOR , Replaced By: A3224920207
999
BRACKET , Replaced By: A3814923841
999
REAR EXHAUST PIPE REAR
999
BRACKET REAR EXHAUST PIPE, 872788
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY
999
REAR EXHAUST PIPE , Replaced By: A3604922305
999
SUPPORT REAR EXHAUST PIPE TO FRAME
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
SUPPORT REAR EXHAUST PIPE,5 193594
999
BRACKET EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
999
EXHAUST MUFFLER
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
CLAMP60.5 MM,4 613839
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW STRAP TO BRACKET
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008016
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
CLAMP , Replaced By: N000000001642
999
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
999
CLAMP SUPPORT TO SIDE MEMBER 75.5 MM
999
CLAMP EXHAUST PIPE TO CONNECTION FITTING
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
NUT BATTERY CABLE
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT STRAP TO BRACKET
999
NUT REINFORCEMENT TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113010003
