Поз.
Артикул
Описание

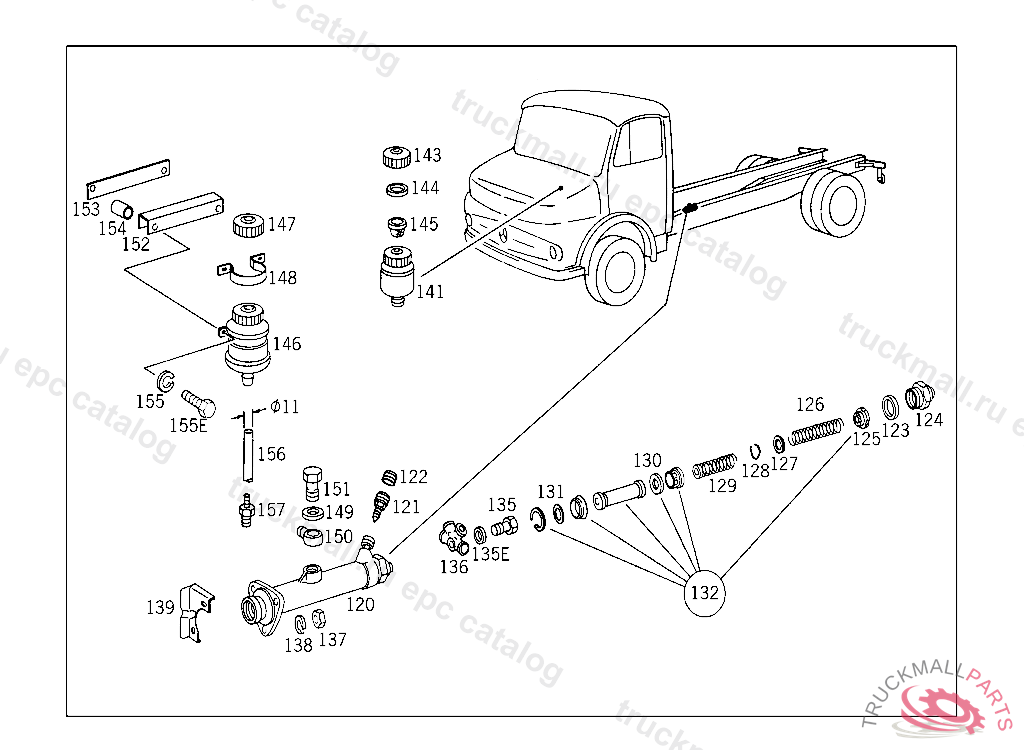

120
BRAKE MASTER CYLINDER
121
VALVE , Replaced By: A3075530107
121
VALVE CLUTCH SLAVE CYLINDER
122
PROTECTIVE CAP , Replaced By: A0004210887
122
PROTECTIVE CAP , Replaced By: A0004217187
122
PROTECTIVE CAP ,5 962906
122
PROTECTIVE CAP , Replaced By: A0004217187
123
SEAL RINGTO 002 430 41 01
124
THREADED UNIONTO 002 430 41 01
125
BOTTOM VALVE. VALVE , Replaced By: A0015861543
125
REPAIR KITTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
126
SPRING
127
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
128
SNAP RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
129
SPRINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
130
FILLER RINGTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
131
WASHERTO 002 430 41 01, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
132
REPAIR KITTO 002 430 41 01
135
HOHLSCHRAUBE FUR. HOLLOW SCREW MASTER CYLINDER,CONNECTION "2.1",4 338292
137
NUT BRACKET TO SUPPORT AND TO END PIECE
137
NUT BATTERY CABLE
138
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
139
BRACKET
141
RESERVOIR , Replaced By: A0014317702, +001A0004315433
141
RESERVOIR BOLTED ON BRAKE MASTER CYLINDER
141
RESERVOIR BOLTED ON BRAKE MASTER CYLINDER
143
FILLER CAP BUTTRESS THREAD
144
SEAL RING
144
SEAL RING42X21.5 MM
145
STRAINER , Replaced By: A0004314334
145
STRAINER
145
STRAINER
149
SEAL RING BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
999
CLAMP ,K 147121, Replaced By: N000000000319
999
SLEEVE LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER T-FITTING TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
NUT SUPPORT TO SIDE MEMBER
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT HEATING PIPE TO BRACKET
999
LOCK RING TRANSMISSION CASE,TOP
999
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
SCREW LEFT AND RIGHT CONSOLES TO CAB
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
999
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
999
NUT
999
SCREW , Replaced By: N304017010055
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW PIPE CLAMP
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
FITTING ,4 667210
999
FITTING CONNECTION "2"
999
NUT CHECK VALVE TO AIR RESERVOIR
999
T-FITTING
999
ELBOW FITTING LINE CONNECTION
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
SNAP RING
999
GREASE NIPPLE
999
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
999
SCREW LINE MOUNTING M 6X16
999
SHEET METAL SCREW LINE MOUNTING
999
SEAL RING FUEL LINE TO FEED PUMP
999
WASHER CONSOLE TO FRAME
999
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
999
WASHER , Replaced By: N007349013005
999
TOOTHED WASHER HANDLE TO RATCHET ROD
999
GLAND , Replaced By: A0019901967
999
TURNBUCKLE , Replaced By: A3859960034
999
PIN
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW , Replaced By: N308676012012
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW , Replaced By: N308676012015
999
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
999
NUT , Replaced By: N308673012002
999
NUT STRAP TO SUPPORT
999
NUT STRAP TO SUPPORT,5 149419
999
NUT PULL ROD
999
NUT FROM PROPELLER SHAFT TO FRONT AXLE
999
NUT BALL PIVOT TO LEVER
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW , Replaced By: N304017010028
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW , Replaced By: N304017010002
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW , Replaced By: N304017010050
999
SCREW , Replaced By: N000933008134
999
RIVET
999
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
999
WASHER , Replaced By: N000433013010
999
WASHER
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN STRAP TO CONSOLE
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
999
COTTER PIN LEVER TO ROD
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN
999
SCREW , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
SCREW PROTECTION PLATE TO BRACKET
999
SCREW , Replaced By: A0029903712
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
SCREW ,374026
999
UNION NUT LINE CONNECTION
999
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
ADHESIVE FOIL GUIDE SIGN
999
GROMMET LINE MOUNTING 19/13 MM
999
NUT FROM BRAKE SHAFT TO BRAKE LEVER
999
BRACKET , Replaced By: A3812711640
999
BRACKET DELIVERY AND SUCTION LINES
999
CLAMP FEED LINE TO THERMOSTAT
999
CLAMP LINE MOUNTING
999
WASHER ANTE-FREEZE DEVICE TO STRAP
999
SHIM BEARING BRACKET TO FRAME
999
CONSOLE SPRING LOAD ACCUMULATOR BRAKE CYLINDER
999
CLAMP , Replaced By: N916016008200
999
ANGLE WIRE CABLE TO ENGINE
999
SPACER TUBE , Replaced By: A3604270253
999
LEVER RIGHT,2 068748
999
LEVER , Replaced By: A3604260711
999
LEVER , Replaced By: A3604260611
999
LEVER AT BRACKET, 674067
999
BRAKE LEVER HAND BRAKE
999
REPAIR KIT , Replaced By: A3584200182
999
LOCK BRAKE SHOE ADJUSTMENT,1 239645
999
BRAKE ANCHOR PLATE RIGHT, UP TO CHASSIS 910369 ALSO INSTALLED ON 500000-501414 FROM CHASSIS 501456-599999 AND FROM CHASSIS 910370 SEE UNIT MICROFICHE 744.300
999
BRAKE ANCHOR PLATE , Replaced By: A3584200917
999
BRAKE ANCHOR PLATE
999
REPAIR KIT BRAKE SHOE MOUNTING BOLT
999
ROD REAR
999
SCREW , Replaced By: N900170012019, +001N913001012000
999
SCREW , Replaced By: A3029900804
999
SCREW , Replaced By: A3544230171
999
REPAIR KIT , Replaced By: A3124201178
999
BRAKE SHOE ,910369 EXCEPT FOR 501456-599999910370 ALSO INSTALLED ON 501456-599999, SEE SPARE PARTS LIST 731.3, Replaced By: A3534200019, +002A3534232810, +016A3079900197
999
BRAKE SHOE ,910369 EXCEPT FOR 501456-599999910370 ALSO INSTALLED ON 501456-599999, SEE SPARE PARTS LIST 731.3, Replaced By: A3524200019, +002A3534232710, +016A3079900197
999
BRAKE SHOE , Replaced By: A3534200019
999
BRAKE SHOE , Replaced By: A3534200819
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
ELBOW FITTING LOAD/NO-LOAD VALVE, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
NUT , Replaced By: A3589900051
999
PIPE LINE FROM BRAKE VALVE,CONNECTION "V1",TO PRESSURE GAUGE
999
ELECTRIC CABLE FROM FIRE WALL TO EMERGENCY RELEASE VALVE
999
SHIM , Replaced By: A3604750484
999
BRACKET , TO 001 429 60 44
999
BRACKET BRAKE MASTER CYLINDER
999
LEVER , Replaced By: A3524301323
999
BRACKET , Replaced By: A3524202486
999
LEVER , Replaced By: A3604260711
999
LEVER , Replaced By: A3604260611
999
LINE , Replaced By: A3404203529
999
LINE , Replaced By: A3404203929
999
BRACKET , 656999
999
LINE , Replaced By: A3404202429
999
LINE , Replaced By: A3404203929
999
LINE , Replaced By: A3404203929
999
LINE , Replaced By: A3404202429
999
BRAKE INTERMEDIATE SHAFT REAR
999
BEARING BRACKET , 656999
999
PLATE ,5 317650
999
SCREW , Replaced By: A3029900204
999
SCREW , Replaced By: A3029900804
999
REPAIR KIT , Replaced By: A3585860242
999
PIN
999
BRAKE SHOE , Replaced By: A3414200319
999
BRAKE SHOE , Replaced By: A3414200319
999
BRAKE SHOE , Replaced By: A3414200319
999
LINE FROM DISTRIBUTOR TO VALVE 3600 MM,4 478330
999
LINE FROM DISTRIBUTOR TO VALVE 3200 MM
999
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
