Поз.
Артикул
Описание

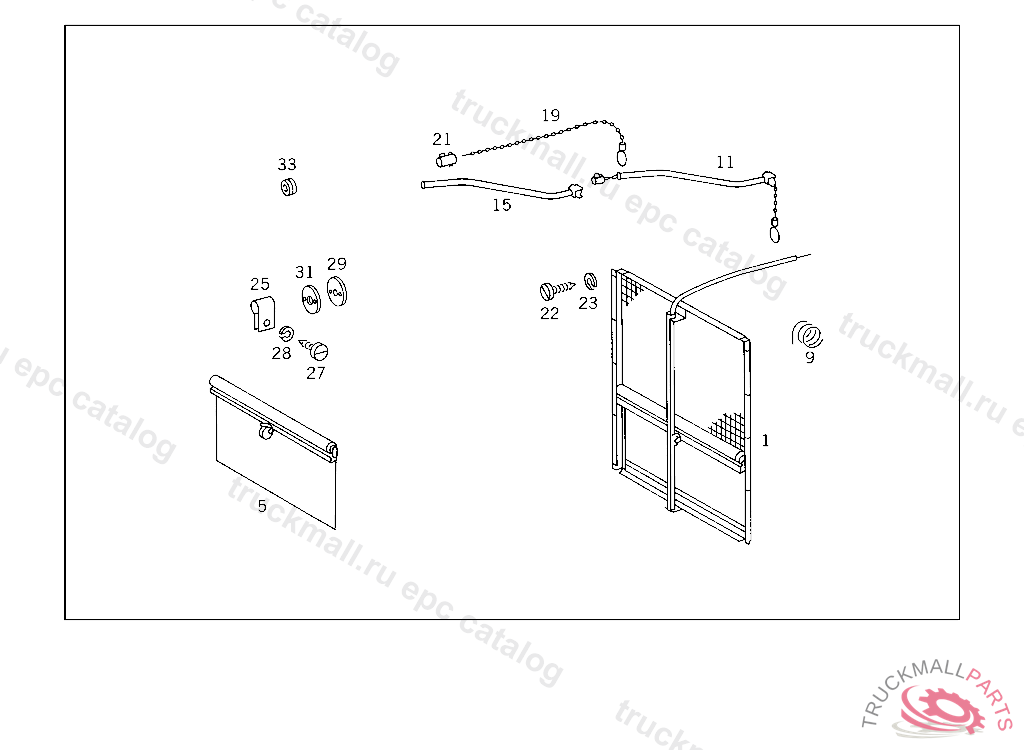

1
RADIATOR SHUTTER , 322 UP TO CHASSIS 060544
1
RADIATOR SHUTTER , 322 UP TO CHASSIS 060544
1
RADIATOR SHUTTER
1
RADIATOR SHUTTER , 322 FROM CHASSIS 060545
1
RADIATOR SHUTTER , 322 FROM CHASSIS 060545
5
RADIATOR SHUTTER , 322 UP TO CHASSIS 060544
5
RADIATOR SHUTTER , 322 FROM CHASSIS 060545
5
RADIATOR SHUTTER
9
WIRE CABLE RADIATOR SHUTTER CABLE 1200 MM
9
WIRE CABLE RADIATOR SHUTTER CABLE 1000 MM
11
CABLE PULL , 322 FROM CHASSIS 060545
11
CABLE PULL
11
CABLE PULL , 322 FROM CHASSIS 060545
15
GUIDE
15
GUIDE , 322 FROM CHASSIS 060545
15
GUIDE , 322 FROM CHASSIS 060545
19
CHAIN , 322 FROM CHASSIS 060545
21
FERRULE
22
SHEET METAL SCREW MOUNTING RAIL TO RADIATOR
23
LOCK WASHER LINE MOUNTING
25
BRACKET
27
SHEET METAL SCREW BUZZER TO CAB,4 374617
28
LOCK WASHER LINE MOUNTING
29
SEAL RING AT FIRE WALL
31
WASHER AT FIRE WALL
33
GROMMET GROUND CABLE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
TAPPING SCREW RELAY
999
SCREW , Replaced By: N304017008034
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
