Mercedes A0049901601 - Болт

OM 364 A 364.959

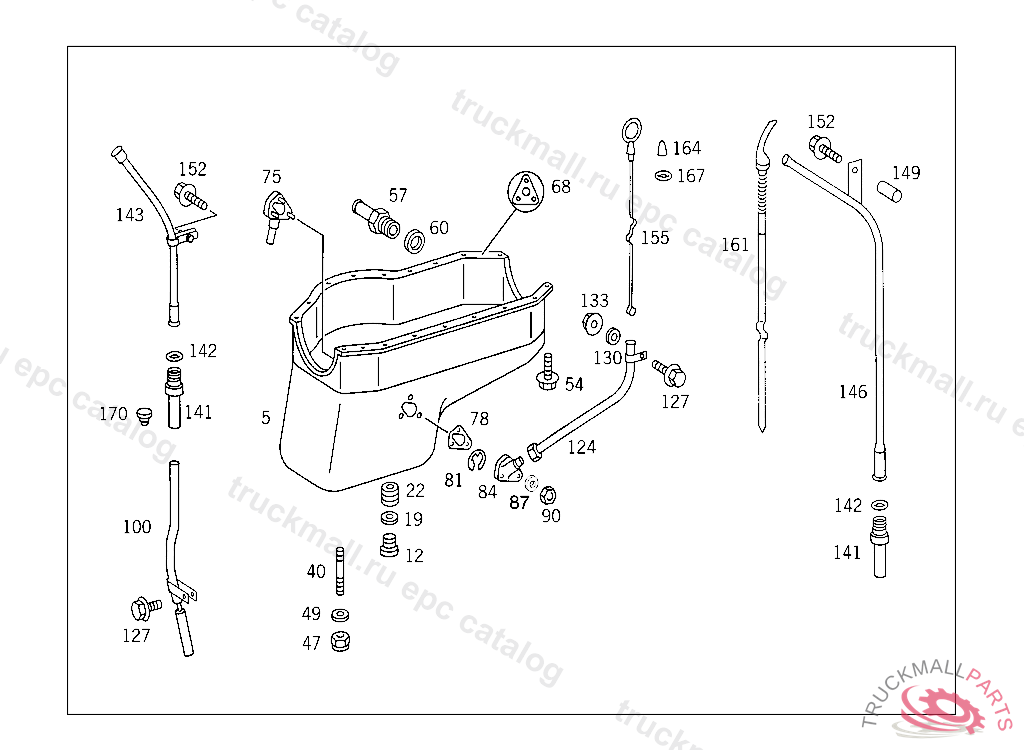

01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY

Поз.
Артикул
Описание
5
A3140101627
OIL PAN WITH SCREW PLUG
5
A3140101727
OIL PAN WITH SCREW PLUG
12
A4039970032
SCREW PLUG
19
N007603026109
SEAL RING OIL DRAIN 26X34 MM
40
N000939008143
STUD BOLTM 8X45, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
40
N000835008180
STUD OIL PAN TO CYLINDER CRANKCASE
47
N999900008004
NUT POWER CYLINDER
49
N007349008002
WASHER REAR FOGLAMP TO BRACKET
54
A0049901601
SCREW
68
A3640101280
GASKET KIT OIL PAN
141
A3640100077
FITTING GUIDE TUBE TO OIL PAN
142
N003770012000
ROUND SECTION SEAL RING GUIDE TUBE TO OIL PAN
146
A3640102266
GUIDE TUBE OIL DIPSTICK
149
A4415510253
SPACER TUBE GUIDE TUBE TO CYLINDER HEAD
152
N910105010021
SCREW , Replaced By: N910105010017
161
A3140106072
OIL DIPSTICK
