Поз.
Артикул
Описание

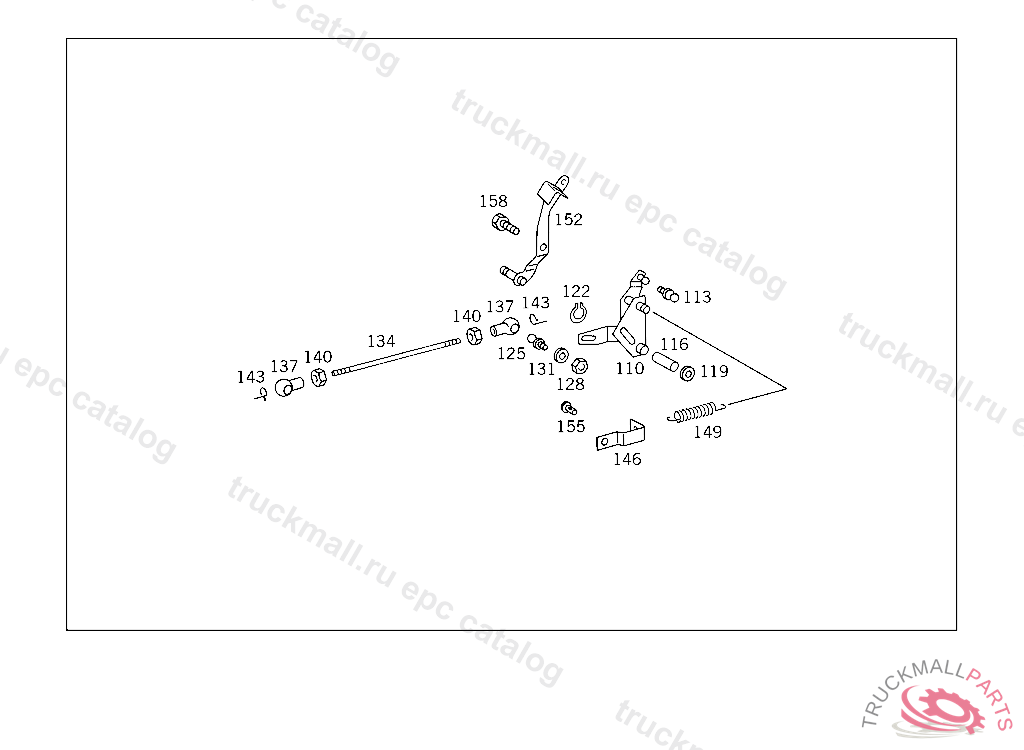

110
LEVER (CONTROL LEVER),INJECTION PUMP
113
BALL PIVOT LEVER
113
BALL PIVOT , Replaced By: A3129910120
116
BUSHING
119
FITTED WASHER AS REQUIRED 1.0 MM
122
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
125
BALL PIVOT ROD TO INJECTION PUMP LEVER
128
NUT SPRING-LOADED PUSH ROD
131
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
134
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
137
BALL SOCKET PULL ROD TO LEVER
137
BALL SOCKET ACCELERATOR CONTROL
140
NUT SPRING-LOADED PUSH ROD
140
NUT L.H. THREAD
143
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
146
BRACKET RELEASE SPRING
146
BRACKET , Replaced By: A3640722540
149
SPRING (RELEASE SPRING), UP TO ENGINE 425722 YEAR OF MANUFACTURE 1996
152
LEVER BOWDEN CABLE
155
GROOVED NAIL BEARING BRACKET TO CYLINDER CRANKCASE
158
SCREW CLAMP MOUNTING M 6X16
