Mercedes A0009907420 - БОЛТ М8

OM 366 A 366.960

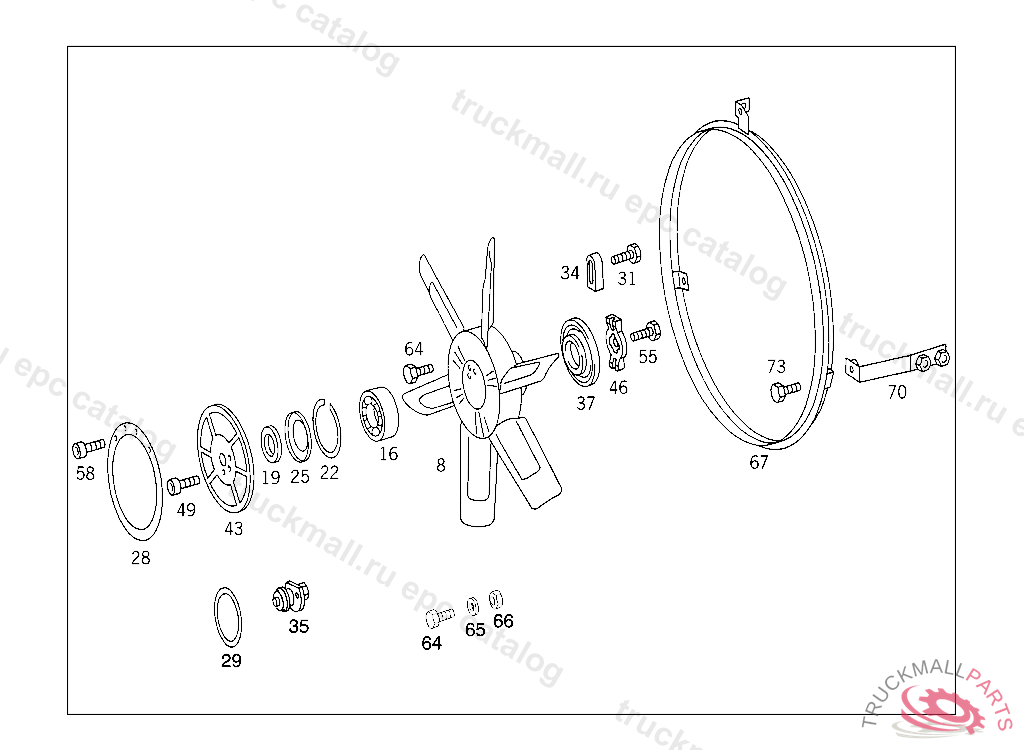

20 ENGINE COOLING SYSTEM - 030 FAN

Поз.
Артикул
Описание
8
A3662003923
FAN 6-BLADE,WITH FLEXIBLE FAN HUB, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
16
A0019816027
ANGULAR CONTACT BEARINGTO 001 205 95 06
16
A0039812825
BALL BEARING
19
A0002060251
SPACER RING
22
A0002050073
LOCK AS REQUIRED 2.0 MM
22
A0002050173
LOCK AS REQUIRED 2.1 MM
22
A0002050273
LOCK AS REQUIRED 2.2 MM
22
A0002050373
LOCK AS REQUIRED 2.3 MM
28
A0002060680
GASKET
29
A0002060380
GASKET
35
A0002000072
CLAMPING PIECE (SLIDE)
37
A0039979340
SEAL RING
43
A0002060128
PRIMARY CUP
49
A0009907420
SCREW
58
A0019900012
SCREW COVER TO FAN TO 001 205 95 06
64
N910105008011
SCREW STOP TO BATTERY CASE
999
A0005832235
RECEPTACLE SILICONE GREASE
999
A0005831835
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
