Mercedes A0009912422 - НАКОНЕЧНИК ТЯГИ

OM 366 372.930

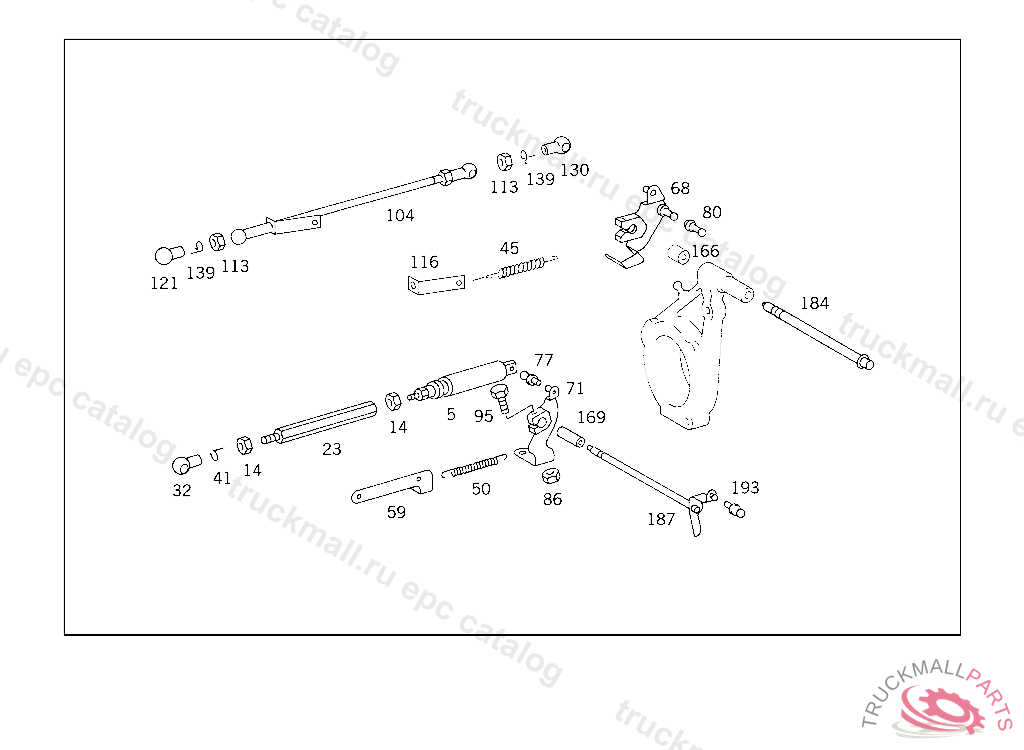

07 INJECTION PUMP - 135 MANUAL CONTROL

Поз.
Артикул
Описание
45
A3229930310
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
68
A3760701021
LEVER CONTROL LEVER
77
N071803010209
BALL PIVOT , Replaced By: A3129910120
95
N000933006061
SCREW LEVER TO THROTTLE VALVE SHAFT
104
A3723007115
PULL ROD
113
N000934006000
NUT , Replaced By: N304032006004
116
A3723017140
BRACKET RELEASE SPRING
121
N071805010203
BALL SOCKET CONTROL
130
A0009912422
BALL SOCKET PULL ROD TO LEVER
139
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
166
A3210720253
SPACER TUBE , Replaced By: A3210720053
166
A3210720053
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
184
A3720707123
SHAFT
999
A3449937010
SPRING
999
A3729937010
SPRING
