Поз.
Артикул
Описание

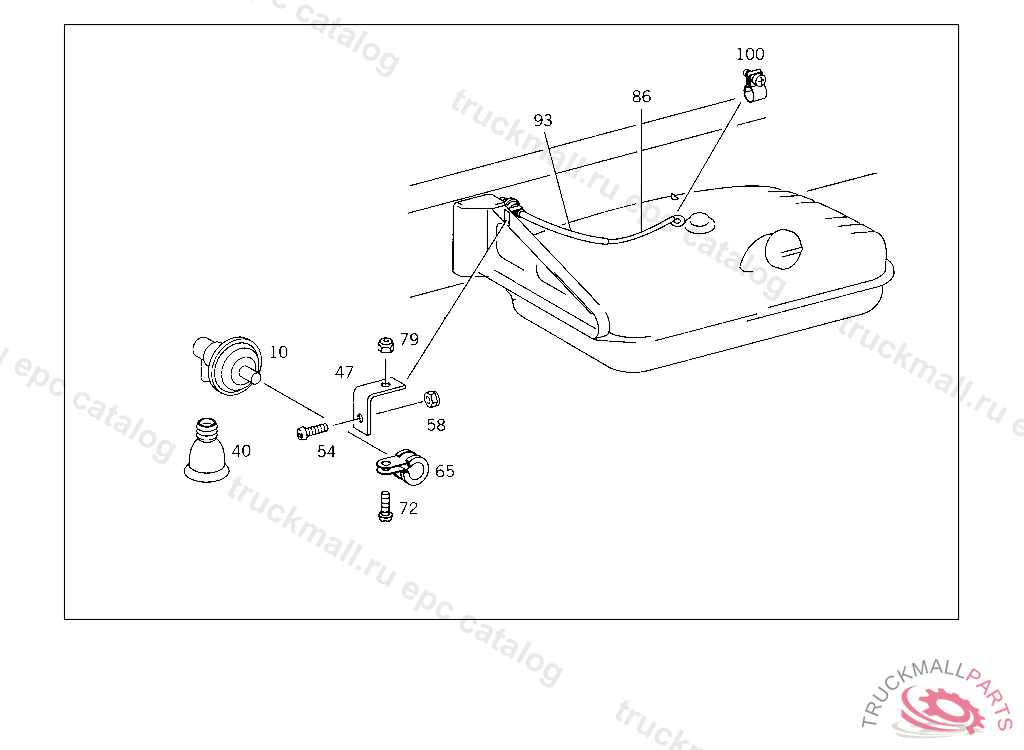

10
VALVE ,K 169122
10
VALVE , Replaced By: A1074700993
40
BOOT CHECK VALVE,K 169122
47
BRACKET VALVE, NOT USED
54
SCREW BRACKET TO COVERING
54
SCREW , Replaced By: N000000001145
58
NUT PUMP TO BRACKET
58
NUT , Replaced By: N913004006001
65
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
72
SCREW , Replaced By: N000000001145
72
SCREW BRACKET TO COVERING
79
NUT PUMP TO BRACKET
79
NUT , Replaced By: N913004006001
86
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
93
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
100
CLAMP RISING PIPE,5 4734955 909351
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004006001
999
NUT STRAP TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW COMPRESSED AIR LINE TO BRACKET
999
SCREW , Replaced By: N000000001146
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW CLAMP MOUNTING M 6X16
999
BRACKET FUEL LINE
999
BRACKET VALVE
999
BRACKET (VENT VALVE)
999
BRACKET , 309.100,126 FROM CHASSIS 014724,309.170,183 FROM CHASSIS 000788
