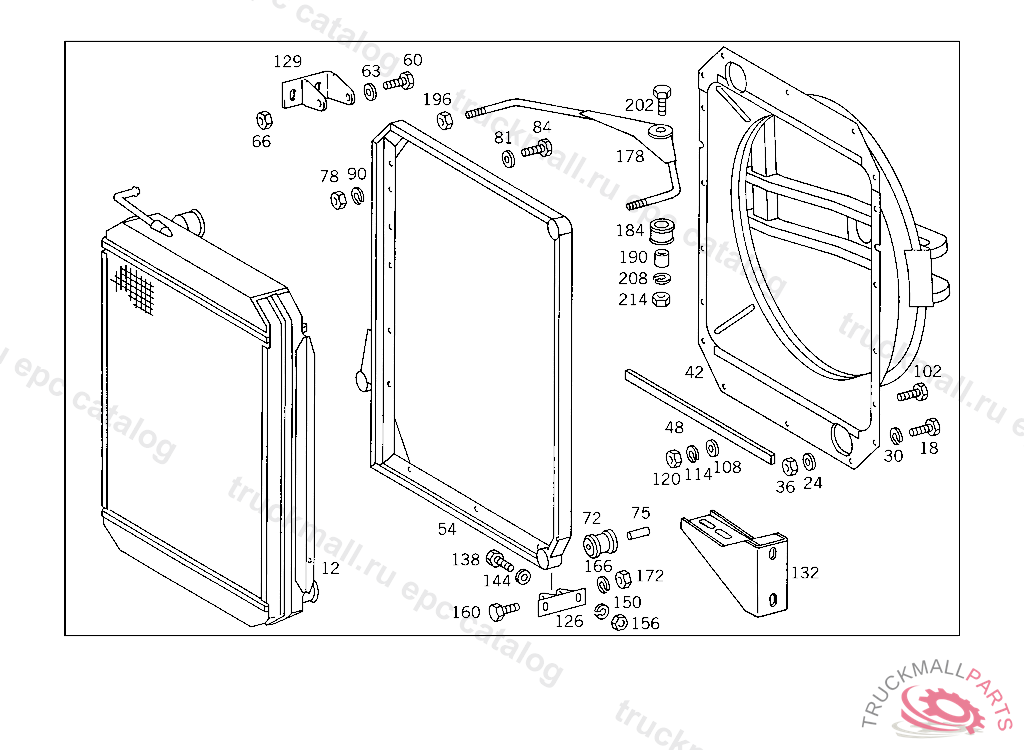

Поз.
Артикул
Описание
12
RADIATOR
18
SCREW , Replaced By: N304017008021
18
SCREW PIPE CLAMP
24
WASHER , Replaced By: N000125008443
30
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
36
NUT , Replaced By: N304032008006
42
SUPPORT RADIATOR
48
RUBBER STRIP
54
SUPPORT RADIATOR
72
MOUNTING
75
SLEEVE
78
NUT
78
NUT , Replaced By: N308675016001
78
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
78
NUT STRAP TO SUPPORT
81
WASHER SHOCK ABSORBER TO LOWER BEARING BRACKET
84
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
84
SCREW
90
LOCK WASHER BATTERY CABLE
102
SCREW , Replaced By: N304017008021
102
SCREW PIPE CLAMP
114
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
120
NUT , Replaced By: N304032008006
120
NUT , Replaced By: N913004008001
120
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
126
BRACKET
132
BRACKET
138
SCREW RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE TO HXB 373 610 09 30,
138
SCREW , Replaced By: N304017008034
138
SCREW END PIECE TO EXHAUST PIPE M 10X25
138
SCREW LEVER TO RELEASE SHAFT
138
SCREW BRACKET TO BUMPER,LEFT M 10X25
138
SCREW CLAMP TO EXHAUST PIPE
144
WASHER , Replaced By: N000125008443
144
WASHER , Replaced By: N000125010532
144
WASHER RADIATOR TO RUBBER MOUNTING
144
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
144
WASHER , Replaced By: N009021010209
144
WASHER BRACKET TO COVERING
150
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
150
LOCK WASHER , Replaced By: N912004010102
156
NUT , Replaced By: N304032008006
156
NUT , Replaced By: N910113010000
156
NUT BRACKET TO SUPPORT AND TO END PIECE
156
NUT BATTERY CABLE
160
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
160
SCREW
166
LOCK WASHER FITTING TO BRACKET
172
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
172
NUT SUPPORT TO SIDE MEMBER
178
STAY RADIATOR BASE FRAME
184
JOINT RUBBER BRACKET TO SUBSTRUCTURE
190
SPACER TUBE
196
NUT STRAP TO SUPPORT,5 149419
202
SCREW VIBRATION ABSORBER TO BRACKET M 12X1.5X85
208
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
214
NUT STRAP TO SUPPORT
999
999
999
999
999
SPACER WASHER BELT TIGHTENER 1.00 MM
