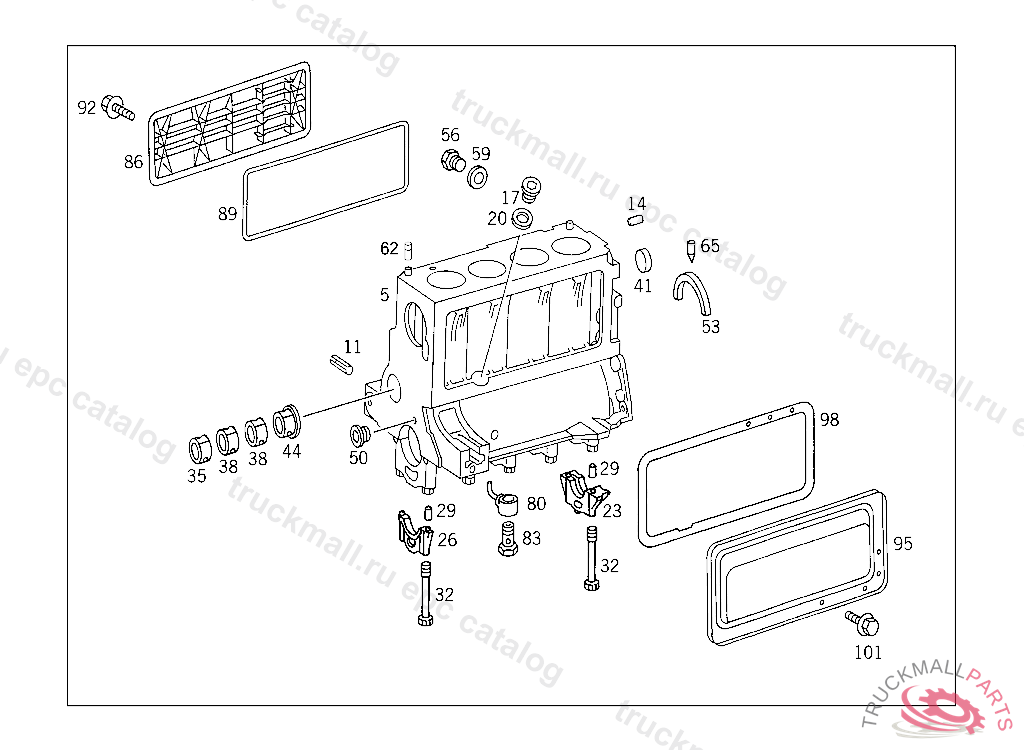

Поз.
Артикул
Описание
5
CRANKCASE
11
BUSHING
14
CYLINDRICAL PIN
17
SCREW PLUG
20
SEAL RING , 001778
23
BEARING CAPNO.5,A 003512
26
BEARING CAPNO.2
26
BEARING CAPNO.1,3,4
29
DOWEL PIN CRANKSHAFT BEARING CAP TO 366 010 03 23, 02 23, 03 23
32
SCREW CRANKSHAFT BEARING CAP TO CYLINDER CRANKCASE, WHEN INSTALLING MODIFIED CRANKSHAFT BEARING BOLT REPLACE ALL CRANKSHAFT BEARING BOLTS WITH THIS VERSION
35
CAMSHAFT BEARINGNO.1
38
CAMSHAFT BEARINGNO.2,NO.3
38
CAMSHAFT BEARINGNO.2,NO.3
41
EXPANSION PLUG P.T.O. HOUSING
44
EXPANSION PLUG
50
SCREW PLUG
53
SEAL RING , Replaced By: A0019974141
56
SCREW PLUG WATER DRAIN
59
SEAL RING VALVE TO VALVE,K 025179
62
CYLINDRICAL PIN CYLINDER HEAD TO CYLINDER CRANKCASE
65
SAFETY PIN. PIN ,A 003512
86
COVER PUSH ROD CHAMBER COVER,128243
89
SEAL RING PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE,128243
92
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
95
CYLINDER SIDE COVER
98
GASKET CYLINDER SIDE COVER
101
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
