Mercedes A0139900701 - Болт

OM 364 A - MTU 374.975

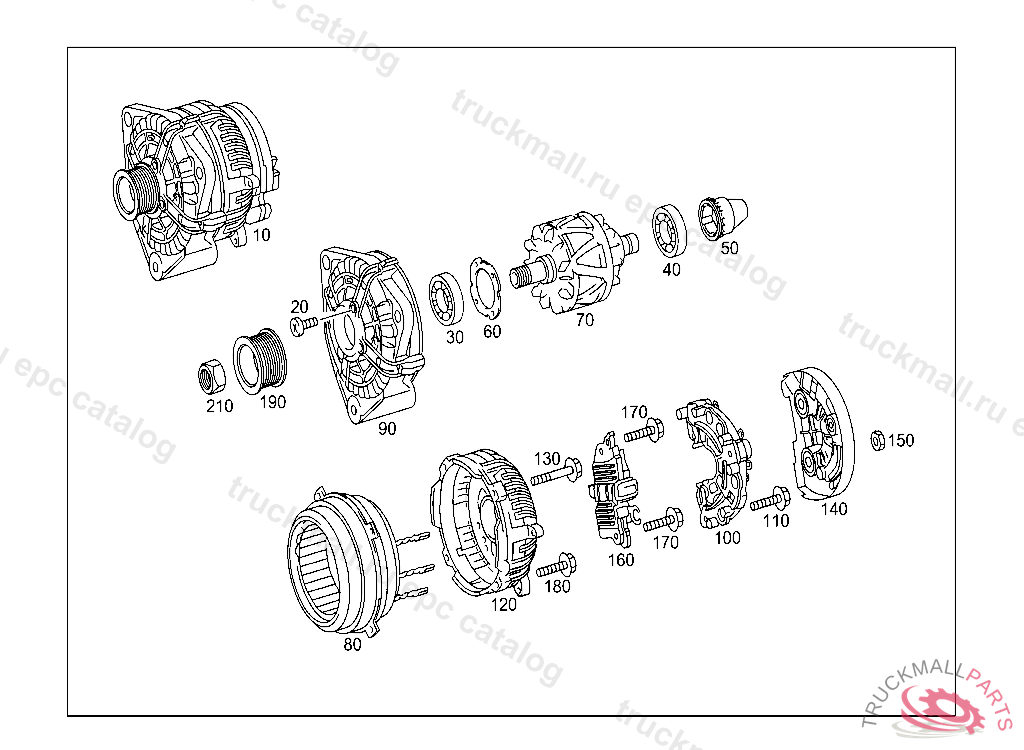

15 ELECTRICAL EQUIPMENT - 030 ALTERNATOR

Поз.
Артикул
Описание
10
A3761540302
ALTERNATOR WITH REGULATOR INCORPORATED AND PULLEY "BOSCH", 14V, 55A
20
A0009901206
SCREW
30
A0089818425
BALL BEARING
40
A0089818625
BALL BEARING REAR
50
A0001541257
RING
60
A0001540452
SPACER WASHER
70
A0001548315
ROTOR
80
A0001547625
COIL
90
A0001542649
BEARING
100
A0011544116
RECTIFIER
110
A0139900601
SCREW
120
A0001542749
BEARING
130
A0009902003
BOLT. SCREW
140
A0001561924
SUPPRESSOR CAP
150
A0059903651
NUT
160
A0001542905
REGULATOR
170
A0019906121
SCREW REGULATOR AND CUT-OUT
180
A0139900701
SCREW
190
A0011555015
PULLEY
210
A0009902250
NUT PULLEY TO ALTERNATOR
