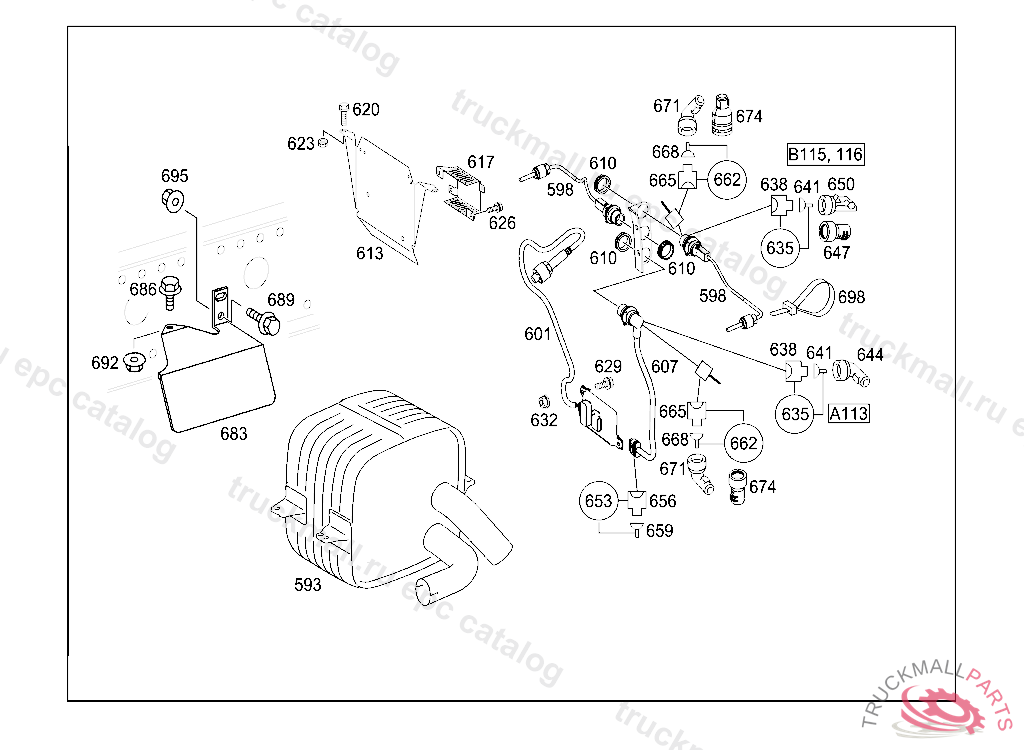

Поз.
Артикул
Описание
593
593
593
593
593
598
SENDER UNIT TEMPERATURE SENSOR,EXHAUST T2
601
CONTROL UNIT SENSOR NOX
607
ELECTRIC CABLE LINE EXTENSION "NOX"
607
ELECTRIC CABLE ADAPTER "NOX"
607
610
NUT. CLAMPING RING
613
BRACKET
617
COVER PLATE FASTENING, NOX SENSOR
620
HEXAGON HEAD BOLT AT BRACKET M8X20
623
NUT AT BRACKET M8
626
BOLT TO THREE-WAY CATALYTIC CONVERTER M8X16
629
HEXAGON HEAD BOLTM6X16,V 215932
632
NUT FASTENING, NOX SENSOR M6
635
PARTS KIT PLUG CONNECTION,TACHOGRAPH SENSOR X36, 4PIN, TO BE ADAPTED DURING ASSEMBLY
638
PLUG HOUSING 4-POLE
641
NUT. CLAMPING RING
641
CONTACT PIN0.5-1.0 MM2
641
WIRE SEAL GREY 0.5-1.0 MM2
641
GASKET. BLIND PLUG
641
CORE BUNDLE SEALING1.0-2.5 MM2
641
CONTACT PIN1.0-2.5 MM2
644
PLUG CAP
647
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
647
PLUG CAP
650
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
653
PARTS KIT FLAT PLUG 5 PIN,V 215932
656
CLUTCH. PLUG SOCKET5 PIN,V 215932
659
ADAPTER. SOCKET ,V 215932
659
SEAL. GASKET YELLOW,V 215932
659
BLIND PLUG ORANGE,V 215932
659
CRIMP RECEPTACLE CONTACT ,V 215932
662
PARTS KIT FUEL GAUGE SENDER UNIT, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLYK 171434
665
PLUG SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT
668
WIRE SEAL GREY 0.5-1.0 MM2
668
CORE BUNDLE SEALING1.0-2.5 MM2
668
GASKET. BLIND PLUG
668
CONTACT SPRING. CONTAKT SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT 1.0 - 2.5 MM2
668
ROUND PIN BUSHING0.5-1.0 MM2
671
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
671
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
674
BOOT 180 DEGREE OUTLET WITH VARIABLE CLAMPING
674
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
683
686
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
689
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
689
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
692
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
695
NUT BRACKET TO SIDE MEMBER M12X1.5
698
CABLE TIE. LOOM TIE378 X 7.6 MM
