Поз.
Артикул
Описание

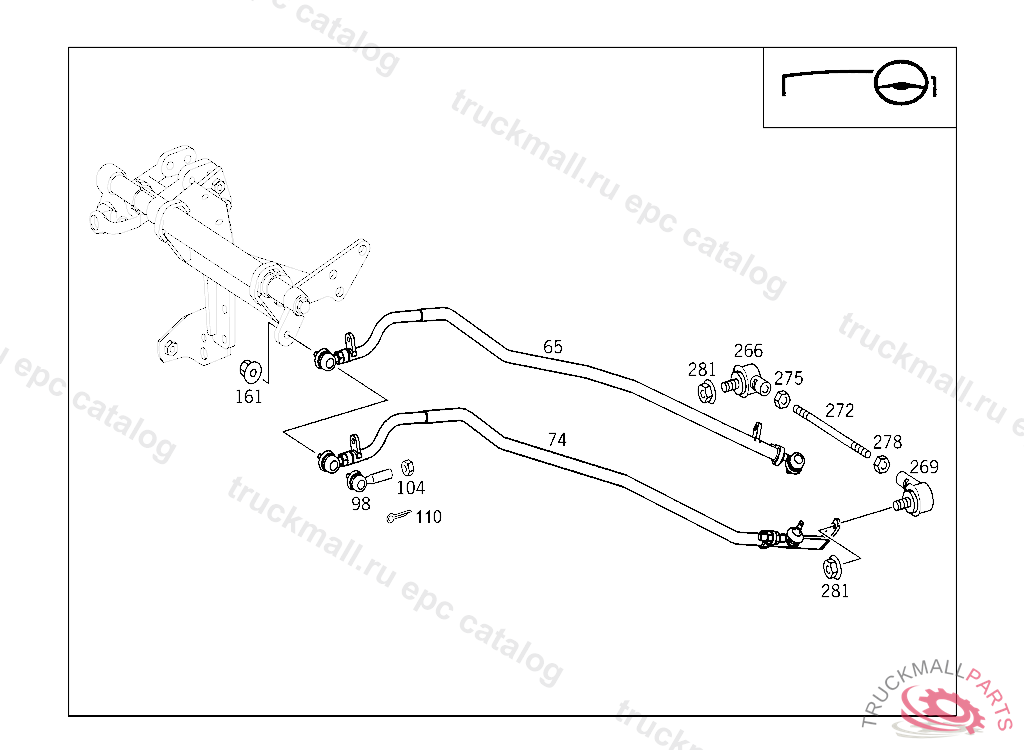

65
SHIFTING ROD
74
SHIFTING ROD
98
ARTICULATION PIECE
98
ARTICULATION PIECE , Replaced By: A0009967045
98
JOINT , Replaced By: A0009968545
98
ARTICULATION PIECE LEVER,K 131522
104
NUT JOINT TO SHIFTING ROD M 14X1.5
104
NUT RELEASE BEARING LUBRICATION
161
NUT EXHAUST PIPE TO SIDE MEMBER
266
ARTICULATION PIECE R.H. THREAD, Replaced By: A0019963045
269
ARTICULATION PIECE L.H. THREAD, Replaced By: A0019963145
272
PULL ROD90 MM, TO BE ADAPTED DURING ASSEMBLY
272
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLYK 142858
272
PULL ROD , Replaced By: N900331012339
272
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLY
275
NUT BRACKET TO FRAME
278
NUT L.H. THREAD
281
NUT EXHAUST PIPE TO SIDE MEMBER
281
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
