Поз.
Артикул
Описание

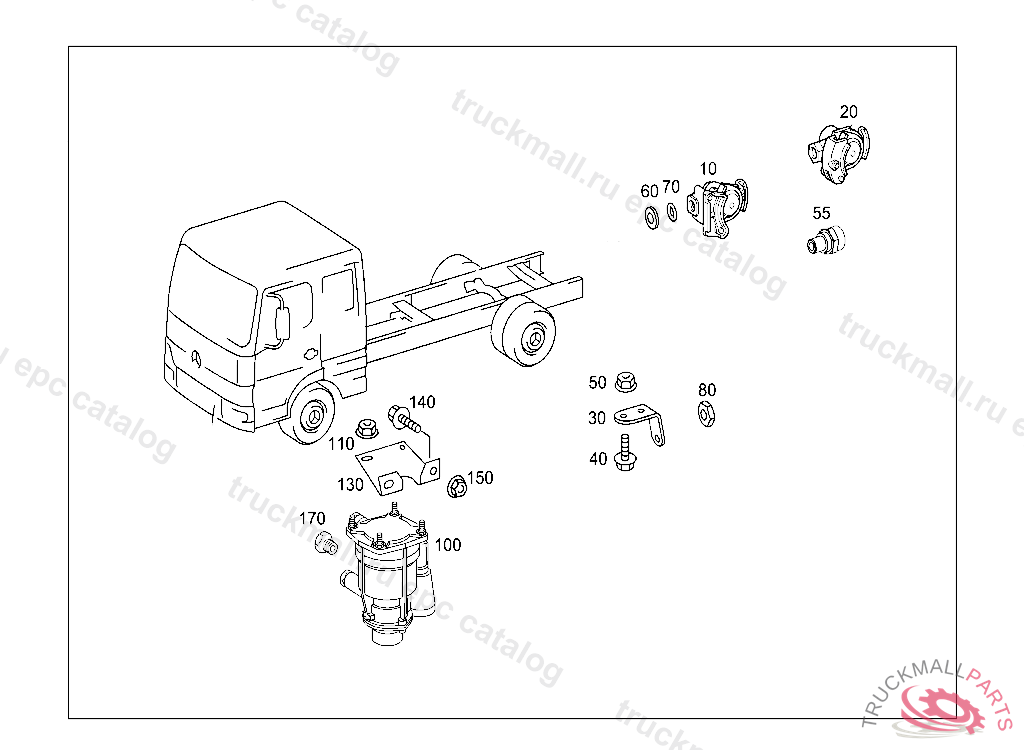

10
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
10
BRAKE LINE COUPLING SUPPLY, RED
10
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
20
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
20
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
30
BRACKET BRAKE LINE COUPLING TO REAR CROSS MEMBER
30
40
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
50
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
60
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
70
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
80
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
100
VALVE TRAILER CONTROL VALVE ABS,HALDEX, FOR COMPONENT PARTS SEE SPARE PARTS LIST
110
NUT HORN TO BRACKET M8
130
BRACKET RELAY VALVE
140
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
150
NUT BRACKET TO SIDE MEMBER M12X1.5
170
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
170
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
