Поз.
Артикул
Описание

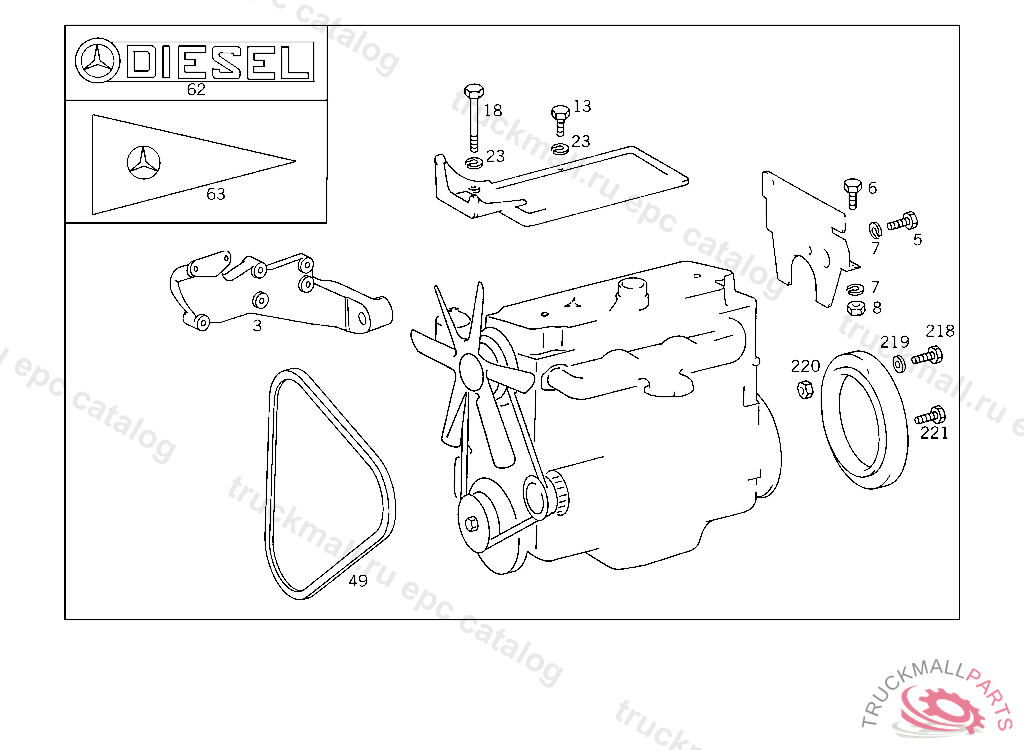

3
BRACKET ,352.900-009-000545
5
SCREW BEARING BRACKET TO SIDE MEMBER
6
SCREW BRACKET TO TRANSMISSION M 12X85
6
SCREW COVER TO TRANSMISSION CASE M 12X85
7
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
8
NUT SPRING BOLT
13
SCREW PLUG SOCKET TO FRAME
18
SCREW COVER TO STEERING BOX, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
23
LOCK WASHER RAIL TO BATTERY SUPPORT
49
V-BELT
49
V-BELT ,5 345185
49
V-BELT12.5X875,352.900-009-000545
49
V-BELT , Replaced By: A0039973392
49
V-BELT , Replaced By: A0049973592
49
NARROW V-BELT12.5X1325
62
MERCEDES STAR , OM 314 FROM ENGINE 067266,OM 352 FROM ENGINE 479536
63
FLAG
218
SCREW ENGINE SUPPORT TO CYLINDER CRANKCASE M14X1.5X90, FROM ENGINE 880886-999999 YEAR OF MANUFACTURE 1988-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990 UP TO ENGINE 923826 YEAR OF MANUFACTURE 1988
218
SCREW ,12/96
218
SCREW
219
WASHER
220
NUT BRACKET TO SIDE MEMBER
221
SCREW CLUTCH TO FLYWHEEL
999
VALVE. PRESSURE REGULATOR ,FB486597
999
NUT SWITCH TO APPARATUS PLATE
999
BUTTON ABS AND ASR
999
SWITCH ABS AND ASR
999
BANJO UNION , Replaced By: N915052008000
999
SENDER UNIT OIL PRESSURE
999
V-BELT , Replaced By: A0039972992
999
SWITCH,AUTOMATIC TEMPERATURE GAUGE SENDER UNIT
999
V-BELT
999
CONNECTOR
999
BOOT
999
BRACKET FOR TRANSPORT ONLY
999
LEVER
999
CYLINDER SIDE COVER
999
LINE
999
INTAKE PIPE
999
RUBBER PIECE TO LOCK INTAKE MANIFOLD,CYLINDER HEAD COVER
999
INTERMEDIATE PART FLYWHEEL HOUSING
999
INTERMEDIATE RING
999
LINE FROM HOSE TO FEED PUMP
999
COVER EXHAUST MANIFOLD
999
HOSE
999
RELAY , THE OLD PART MUST NO LONGER BE INSTALLED
999
RELAY
999
RUBBER PIECE OIL FILLER NECK TO OIL PAN
999
LOOM TIE. CLAMP
999
SENDER UNIT OIL PRESSURE
999
SWITCH,AUTOMATIC TEMPERATURE GAUGE SENDER UNIT
999
SWITCH,AUTOMATIC TEMPERATURE GAUGE SENDER UNIT
999
LOOM TIE ELECTRIC CABLE MOUNTING
999
ELBOW FITTING FUEL LINES TO FITTING CONEXAO ESPIGAO - "L"
999
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
999
GROUND CABLE FROM ALTERNATOR TO FRAME SIDE MEMBER, UP TO IDENT NO. 727921 EXCEPT FOR,500001-599999,FROM IDENT NO. SEE ENGINE MICROFICHE
999
RELAY
999
ELBOW FITTING FUEL RETURN LINE
999
HOSE LEAK FUEL LINE CONNECTION
999
BANJO UNION
999
LOOM TIE
999
UNION NUT FROM FUEL TANK TO THRU-WAY VALVE (FEED LINE)
999
CLAMP
