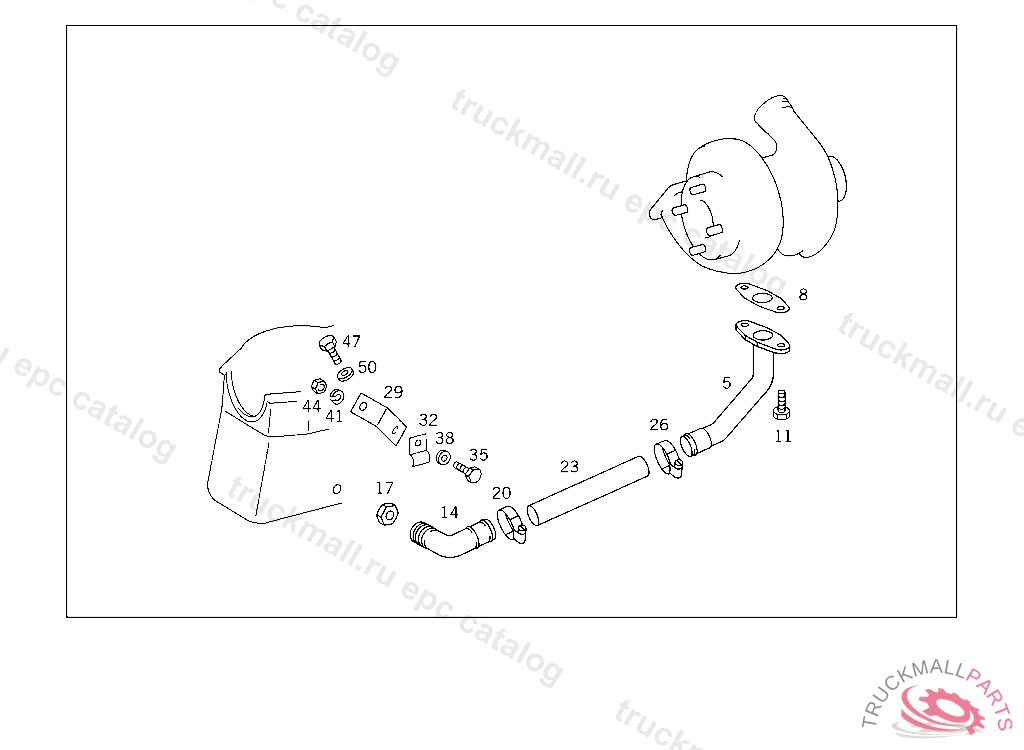

Поз.
Артикул
Описание
5
OIL LINE OIL RETURN LINE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
5
OIL LINE OIL RETURN LINE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
5
OIL LINE ,585511
5
OIL LINE OIL RETURN LINE
8
GASKET , Replaced By: A4421870080
8
GASKET OIL RETURN LINE TO TURBOCHARGER
8
GASKET OIL RETURN LINE TO TURBOCHARGER
11
SCREW BRACKET TO INTAKE MANIFOLD
11
SCREW LINES TO BRACKET
14
PIPE ELBOW , FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
14
PIPE BEND AT AIR COMPRESSOR
17
NUT , Replaced By: N080705026003
20
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
20
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
23
HOSE
23
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, UP TO ENGINE 230907 YEAR OF MANUFACTURE 1992 FROM ENGINE 432714 YEAR OF MANUFACTURE 1996
26
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
29
BRACKET OIL DELIVERY LINE
32
BEFESTIGUNGSSCHELLE. CLAMP LINES TO ENGINE
32
CLAMP OIL LINE TO BRACKET
35
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
35
SCREW BRACKET TO CONSOLE
38
WASHER PLUG SOCKET TO BRACKET
38
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
38
WASHER COVERING TO CAB
41
LOCK WASHER FUEL LINE TO BRACKET
41
LOCK WASHER CLAMP TO BRACKET
44
NUT
44
NUT , Replaced By: N304032006004
47
SCREW BRACKET TO SIDE MEMBER
50
WASHER GROUND CABLE
999
OIL LINE SUCTION LINE TO OIL PUMP
999
OIL LINE OIL RETURN LINE
999
OIL LINE OIL LINE TO TURBO-CHARGER TO 374 096 71 99
999
OIL LINE OIL LINE TO TURBO-CHARGER TO 374 096 72 99
999
FLANGE OIL LINE TO TURBO-CHARGER
999
OIL LINE TURBOCHARGER
999
BRACKET OIL DELIVERY LINE
999
HOSE TO CONNECT BOTH OIL PIPES TO EACH OTHER, ORDER BY THE METER
999
GASKET FLANGE TO TURBOCHARGER
999
WASHER , Replaced By: N000125008443
999
SCREW BRACKET TO PLATE
999
SCREW PULLEY
999
SEAL RING
999
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
999
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
999
SCREW AIR COMPRESSOR TO SUPPORT M 8X35
999
HOLLOW SCREW INJECTION PUMP
999
HOLLOW SCREW OIL LINE
999
HOLLOW SCREW POWER STEERING PUMP
