Поз.
Артикул
Описание

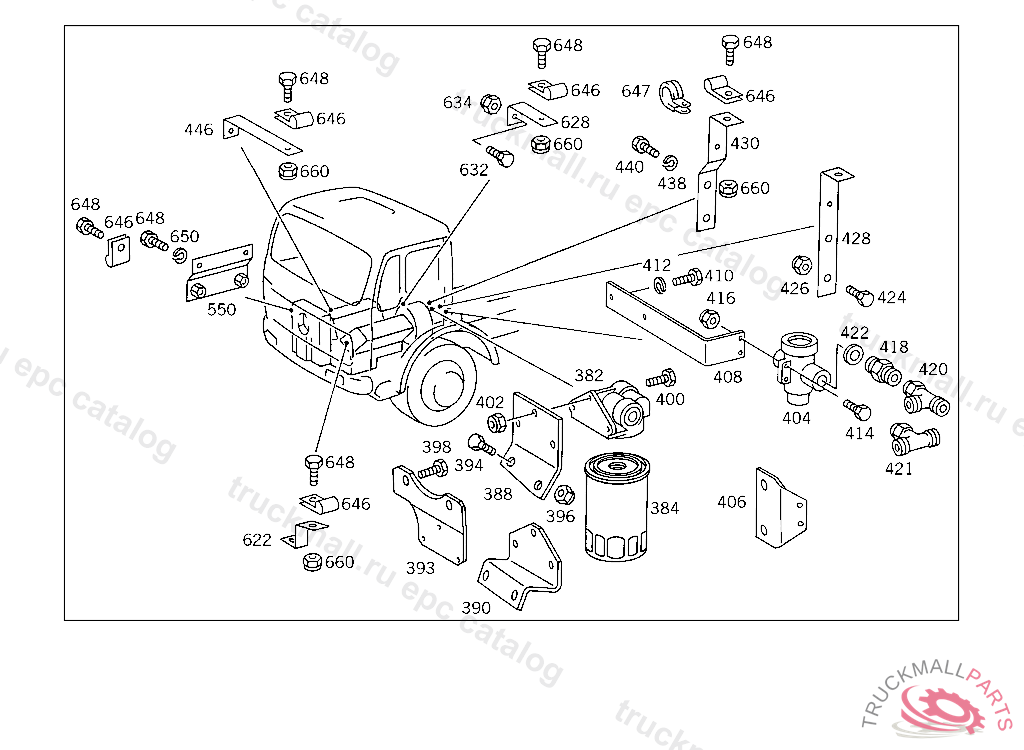

382
FILTER OIL FILTER
382
COVER , Replaced By: A3762700098
384
FILTER , Replaced By: A3762700498
388
BRACKET OIL FILTER
390
BRACKET OIL FILTER,5 042925
390
BRACKET OIL FILTER,5 360279
393
BRACKET OIL FILTER,5 360279
393
BRACKET OIL FILTER,5 360280
394
SCREW BRACKET TO FRAME SIDE MEMBER
396
NUT END PIECE TO EXHAUST PIPE
398
SCREW BRACKET TO TRANSMISSION,5 360280
400
SCREW , Replaced By: N304017008034
402
NUT , Replaced By: N913004008001
402
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
404
THERMOSTAT OIL COOLER
406
BRACKET GOVERNOR,5 360280
408
BRACKET GOVERNOR,5 360280
410
SCREW BRACKET TO TRANSMISSION
412
LOCK WASHER FITTING TO BRACKET
414
SCREW CAB FLOOR COVERING M 6X25
414
SCREW LICENSE PLATE TO BRACKET
414
SCREW , Replaced By: N304017006020
416
NUT , Replaced By: N913004006001
416
NUT PUMP TO BRACKET
418
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
420
FITTING BETWEEN THE LINES
421
FITTING OIL TEMPERATURE REGULATOR
422
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
424
SCREW COVER PLATE TO BRACKET
424
SCREW CAB FLOOR COVERING M 6X25
426
NUT PUMP TO BRACKET
426
NUT , Replaced By: N913004006001
428
BRACKET OIL LINE TO TRANSMISSION,4 404146
430
BRACKET OIL LINE TO TRANSMISSION,5 141771
438
LOCK WASHER FITTING TO BRACKET
440
SCREW BRACKET TO TRANSMISSION
440
SCREW BRACKET TO TRANSMISSION,5 360279
446
BRACKET OIL LINE TO FILTER
550
BRACKET OIL LINE TO RADIATOR
622
BRACKET OIL LINE TO ENGINE SUPPORT
628
BRACKET LINE TO CAB CONSOLE
632
SCREW PIPE CLAMP
632
SCREW , Replaced By: N304017008021
634
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
646
CLAMP LINE MOUNTING
646
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
646
CLAMP , Replaced By: N916016018202
646
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
646
CLAMP FEED LINE TO THERMOSTAT
647
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
647
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
647
CLAMP DELIVERY AND SUCTION LINES TO FRAME
647
CLAMP LINE MOUNTING,5 360280
648
SCREW CAB FLOOR COVERING M 6X25
648
SCREW COVER PLATE TO BRACKET
648
SCREW LICENSE PLATE TO BRACKET
648
SCREW PUMP TO BRACKET
648
SCREW , Replaced By: N304017006020
648
SCREW , Replaced By: N304017006016
650
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
660
NUT , Replaced By: N913004006001
660
NUT PUMP TO BRACKET
999
LINE , Replaced By: A0005516456
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
RADIATOR ,4 706542
999
CLAMP , Replaced By: N916017011000
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
RADIATOR OIL, NOT USED
999
SCREW PLUG , Replaced By: N007604014101
999
FITTING , Replaced By: A0029906171
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
BOOT FAN SHROUD TO FAN RING
999
CLAMP FAN SHROUD TO FAN RING
999
BRACKET , Replaced By: A3812700241
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3604293140
999
LINE , Replaced By: A3815001472
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
HOSE , Replaced By: A3819970682
999
BRACKET , Replaced By: A3832710140
999
BRACKET OIL LINES TO ENGINE
999
BRACKET OIL LINE TO CRANKCASE
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR
999
SUPPORT RADIATOR MOUNTING,4 428845
999
CONNECTOR , Replaced By: A6205010223
999
BRACKET CABLE HARNESS TO LEAK LINE
999
BRACKET OIL FILTER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PANELLING CIRCULATING AIR
999
FITTING OIL FILTER
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
BALL SOCKET ROD TO BALL PIVOT
999
LINE FEED, OIL COOLER
999
LINE RETURN, OIL COOLER
999
PIPE , Replaced By: A6152701396
999
PIPE , Replaced By: A6152701496
999
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
999
PIPE FROM OIL FILTER TO TRANSMISSION
999
BRACKET OIL COOLER TO RADIATOR
999
RADIATOR
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
BRACKET OIL LINES TO ENGINE
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
PIPE , Replaced By: A6172704996
999
LINE , Replaced By: A0005516156
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE HEATING PIPE TO RADIATOR
999
PIPE ELBOW , Replaced By: A6205010556
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CONNECTION FITTING , Replaced By: A0049971772
999
BALL SOCKET ROD TO BALL PIVOT
999
SECURING CLIP. CIRCLIP
999
NUT
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
