Поз.
Артикул
Описание

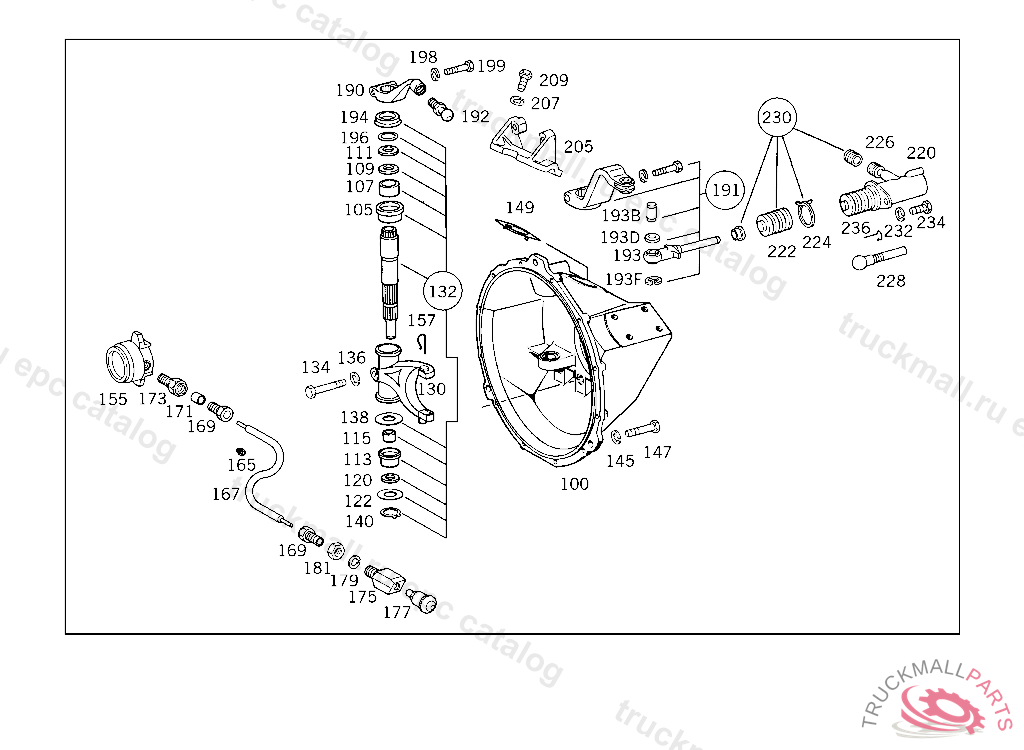

100
HOUSING BELL HOUSING WITH BUSHINGS
100
HOUSING ,5 285575, Replaced By: A6202501105, +001A6202500155
100
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 753305, Replaced By: A3972500405, +002A3852420905, +008N000961018019
100
HOUSING BELL HOUSING WITH BUSHINGS
100
HOUSING ,4 7439865 285575, Replaced By: A6202501205, +001A6202500155
100
HOUSING , THE OLD ENGINE SUPPORTS CAB STILL BE USED WHEN REBORTED FROM 17 MM TO 19 MM4 743985, Replaced By: A3972500305, +001A6202420601, +001A6202420701, +004N000960018027, +004N000960018107
105
BUSHING RELEASE SHAFT,TOP
105
BUSHING ,5 285575, Replaced By: A6202510050, +001A6202500155, +001A0099971547
105
BUSHING ,4 401411, Replaced By: A3852510450, +001A0119978846
107
BUSHING RELEASE SHAFT,TOP 35X39 MM
109
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
109
SEAL RING RELEASE SHAFT,TOP 40X52X7 MM
109
SEAL RING RELEASE SHAFT,TOP
109
SEAL RING RELEASE SHAFT,TOP
111
COVER PLATE RELEASE SHAFT,TOP
111
COVER PLATE RELEASE SHAFT,TOP
113
BUSHING RELEASE SHAFT,BOTTOM
115
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
120
SEAL RING BOTTOM
122
WASHER AS REQUIRED 1.3 MM
122
WASHER AS REQUIRED 1.20 MM
122
WASHER AS REQUIRED 1.10 MM
122
WASHER AS REQUIRED 1.00 MM
122
WASHER AS REQUIRED 0.90 MM
122
WASHER AS REQUIRED 0.80 MM
130
RELEASE LEVER CLUTCH ACTUATION
130
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A6202540108
132
SHAFT (PARTS KIT),RELEASE SHAFT
132
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
132
REPAIR KIT , Replaced By: A3892500014
134
SCREW , Replaced By: N304017012018
134
SCREW , Replaced By: N000933012102
136
LOCK WASHER FITTING TO BRACKET
138
SPACER WASHER RELEASE SHAFT,BOTTOM
140
LOCK RING RELEASE SHAFT,BOTTOM
145
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
147
SCREW RADIATOR M 10X45
149
COVER BELL HOUSING,4 743985
155
RELEASE BEARING CLUTCH ACTUATION
155
RELEASE BEARING CLUTCH ACTUATION
155
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
155
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 758189, Replaced By: A0002507415
157
SPRING RELEASE BEARING TO RELEASE LEVER
165
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
167
HOSE RELEASE COLLAR LUBRICATION 220 MM
169
UNION SCREW RELEASE COLLAR LUBRICATION
171
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
173
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
175
GREASE NIPPLE RELEASE COLLAR LUBRICATION
175
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
177
CAP RELEASE BEARING LUBRICATION
177
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
179
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
181
NUT RELEASE BEARING LUBRICATION
181
NUT , Replaced By: N308675014002
181
NUT , Replaced By: N308675014000
190
LEVER ,4 601609, Replaced By: A6202900534, +001A0009966440
191
LEVER (PARTS KIT),CLUTCH ACTUATION
192
BALL PIVOT CLUTCH ACTUATION,4 601609
193
ROD END CLUTCH ACTUATION
196
SEAL RING LEVER TO RELEASE SHAFT,5 285575
198
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
199
SCREW , Replaced By: N304017010053
205
BRACKET CLUTCH ACTUATION
205
BRACKET , Replaced By: A3072950840
207
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
209
SCREW BRACKET TO SIDE MEMBER
209
SCREW , Replaced By: N304017010002
220
SLAVE CYLINDER ,4 601609, Replaced By: A0012950307, +001A6202900534, +001A0009966440
222
BOOT , Replaced By: A0005863129
224
LOCK
226
PROTECTIVE CAP , Replaced By: A0004217187
226
PROTECTIVE CAP ,5 962906
226
PROTECTIVE CAP , Replaced By: A0004217187
226
PROTECTIVE CAP , Replaced By: A0004210887
226
PROTECTIVE CAP , Replaced By: A0004210887
228
PIN CLUTCH SLAVE CYLINDER
230
REPAIR KIT CLUTCH SLAVE CYLINDER
230
REPAIR KIT , Replaced By: A0002900911
232
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
234
SCREW BRACKET TO SIDE MEMBER
234
SCREW , Replaced By: N304017010002
236
SNAP RING CLUTCH SLAVE CYLINDER
236
SECURING CLIP , Replaced By: N073130019300
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
999
CLAMP , Replaced By: A0002523227
999
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
999
PRESSURE PLATE
999
RIVET LEAF SPRING TO CLUTCH DISC
999
VALVE , Replaced By: A3075530107
999
SLAVE CYLINDER , Replaced By: A0012955307
999
SLAVE CYLINDER CLUTCH ACTUATION
999
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
999
SEAL RING CLUTCH ACTUATION
999
SLAVE CYLINDER CLUTCH ACTUATION
999
PIN CLUTCH ACTUATION
999
LEVER CLUTCH ACTUATION,4 601610
999
VALVE CLUTCH SLAVE CYLINDER
999
PLUG BELL HOUSING
999
COVER PLATE , Replaced By: A3852510210
999
COVER PLATE , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3972510083, +002A0002510183
999
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
999
BRACKET , Replaced By: A3072950840
999
PLUG BELL HOUSING
999
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N308676018010
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SNAP RING LEVER TO RELEASE SHAFT,4 601609
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BELL HOUSING TO TRANSMISSION
