Поз.
Артикул
Описание

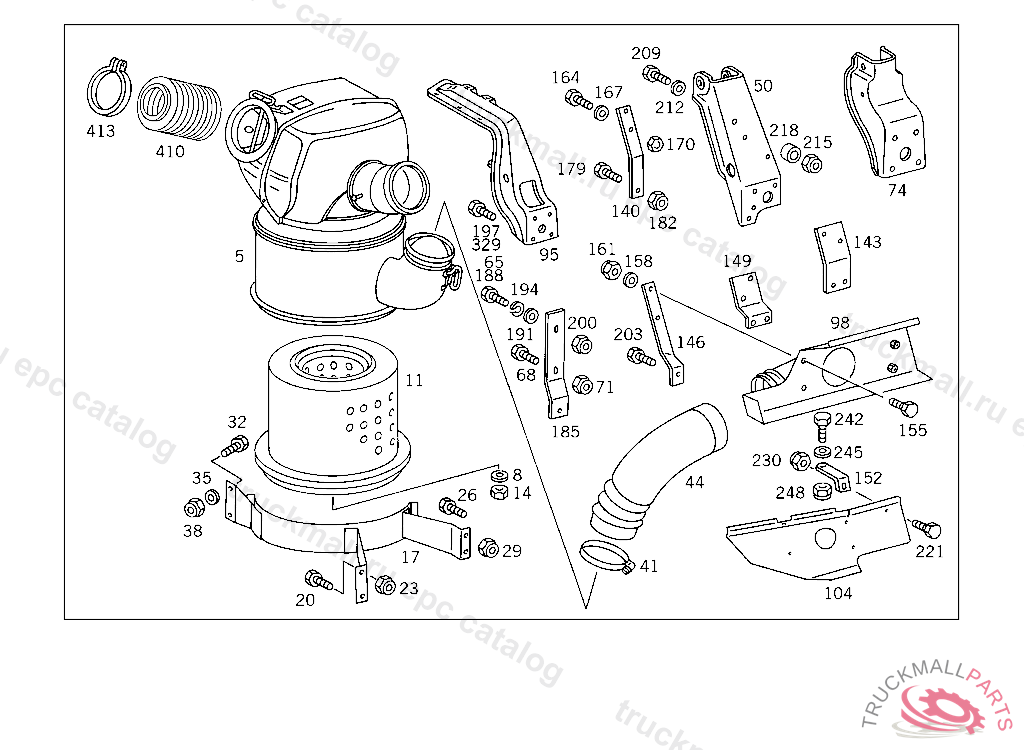

5
AIR CLEANER AIR INTAKE
5
AIR CLEANER AIR INTAKE
5
AIR CLEANER AIR INTAKE
5
AIR CLEANER AIR INTAKE
8
WASHER FELT
11
FILTER ELEMENT
11
FILTER ELEMENTT0 010 094 15 02
11
FILTER ELEMENT
11
FILTER ELEMENTT0 010 094 15 02
11
FILTER ELEMENT
11
FILTER ELEMENTT0 010 094 15 02
14
NUT
17
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
17
SUPPORT AIR CLEANER,K 000844
17
SUPPORT AIR CLEANER
20
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
20
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
20
SCREW , Replaced By: N308676014020
23
NUT COMBINATION CYLINDER TO BEARING BRACKET
23
NUT BRACKET TO SIDE MEMBER
23
NUT , Replaced By: N910113014001
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
26
SCREW , Replaced By: N308676012026
29
NUT SUPPORT TO SIDE MEMBER
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
35
WASHER RADIATOR TO RUBBER MOUNTING
35
WASHER , Replaced By: N000125010532
38
NUT STRAP TO BRACKET
38
NUT , Replaced By: N910113010000
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
41
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
44
HOSE FROM AIR CLEANER TO INTAKE PIPE
50
CONSOLE RIGHT SHOCK ABSORBER
65
SCREW BRACKET TO AIR INTAKE SCOOP
68
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
SCREW , Replaced By: N304017008016
71
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
NUT , Replaced By: N913004008001
74
BRACKET RIGHT SHOCK ABSORBER
74
BRACKET , Replaced By: A6243230340
74
BRACKET RIGHT SHOCK ABSORBER
74
BRACKET , Replaced By: A6203230040
95
BRACKET FENDER AND SHOCK ABSORBER,RIGHT
98
SCOOP RIGHT FRONT WHEEL ARCH
98
SCOOP AIR INTAKE
98
SCOOP AIR INTAKE
98
SCOOP AIR INTAKE
104
SCOOP AIR INTAKE
104
SCOOP AIR INTAKE
140
BRACKET CABLE TO TRANSMISSION
143
BRACKET INTAKE SCOOP
146
BRACKET INTAKE SCOOP
149
BRACKET INTAKE SCOOP
152
BRACKET INTAKE SCOOP
155
SCREW , Replaced By: N304017008021
155
SCREW PIPE CLAMP
158
WASHER BRACKET TO AIR INTAKE SCOOP
161
NUT , Replaced By: N913004008001
161
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
SCREW END PIECE TO EXHAUST PIPE M 10X25
164
SCREW END PIECE TO EXHAUST PIPE M 10X25
164
SCREW , Replaced By: N304017010002
164
SCREW BRACKET TO SIDE MEMBER
167
WASHER , Replaced By: N007349010007
167
WASHER STRUT TO CROSS MEMBER
170
NUT STRAP TO BRACKET
170
NUT , Replaced By: N910113010000
179
SCREW BRACKET TO LEFT SIDE MEMBER
182
NUT SUPPORT TO SIDE MEMBER
185
BRACKET INTAKE SCOOP, TO BE ADAPTED DURING ASSEMBLY
185
BRACKET OIL DIPSTICK GUIDE TUBE
185
BRACKET , Replaced By: A6555280940
185
BRACKET COMPRESSED AIR LINES,K 168169
185
BRACKET INTAKE SCOOP
185
BRACKET INTAKE SCOOP
185
BRACKET INTAKE SCOOP, TO BE ADAPTED DURING ASSEMBLY
188
SCREW PIPE CLAMP
188
SCREW PIPE CLAMP
188
SCREW PIPE CLAMP
188
SCREW , Replaced By: N304017008021
191
WASHER BRACKET TO LEFT SIDE MEMBER
191
WASHER , Replaced By: N009021008213
194
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
197
SCREW CONSOLE TO FRAME
197
SCREW , Replaced By: N308676016020
200
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
NUT , Replaced By: N913004008001
203
SCREW BRACKET TO FRAME M 12X35
209
SCREW PIPE CLAMP
209
SCREW , Replaced By: N304017008021
212
WASHER BRACKET TO AIR INTAKE SCOOP
215
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
215
NUT , Replaced By: N913004008001
218
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
218
SPACER TUBE , Replaced By: A3805410053
221
SCREW REAR EXHAUST PIPE TO MUFFLER
221
SCREW REAR EXHAUST PIPE TO MUFFLER
230
NUT STRAP TO BRACKET
230
NUT , Replaced By: N910113010000
242
SCREW BRACKET TO SIDE MEMBER
242
SCREW BRACKET TO SIDE MEMBER
242
SCREW , Replaced By: N304017010002
245
WASHER STRUT TO CROSS MEMBER
245
WASHER STRUT TO CROSS MEMBER
245
WASHER , Replaced By: N007349010007
248
NUT STRAP TO BRACKET
248
NUT STRAP TO BRACKET
248
NUT , Replaced By: N910113010000
329
SCREW CONSOLE TO FRAME
329
SCREW , Replaced By: N308676016020
410
BOOT AIR INTAKE
410
BOOT AIR INTAKE
413
CLAMP BOOT TO INTAKE PIPE
413
CLAMP BOOT TO INTAKE PIPE
999
HOSE
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
EDGE GUARD SECTION PROTECTION AGAINST SCORING, ORDER BY THE METER
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
999
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER
999
HOSE
999
AIR CLEANER ,4 716110
999
AIR CLEANER (INTAKE MUFFLER)
999
BRACKET MUFFLER TO SIDE MEMBER,4 716110
999
BRACKET MUFFLER TO SIDE MEMBER,4 716110
999
SPACER TUBE , Replaced By: A3953250053
999
AIR INTAKE PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6215280182
999
STRAP AIR CLEANER TO SUPPORT
999
BRACKET , Replaced By: A3875285940
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK
999
BRACKET , Replaced By: A3834929141
999
ANTINOISE CAPSULE RIGHT
999
BRACKET COVERING
999
BRACKET COVERING
999
BRACKET REAR
999
COVERING RIGHT
999
STRAP AIR CLEANER
999
BRACKET , Replaced By: A3434290940
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
LEDGE , Replaced By: A0019877625
999
LEDGE
999
STRAP INTAKE MUFFLER
999
BRACKET MUFFLER TO SIDE MEMBER
999
HOSE FROM MUFFLER TO AIR INTAKE PIPE
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
SCOOP AIR INTAKE, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
SCOOP AIR INTAKE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE AIR INTAKE
999
COVERING
999
BRACKET , Replaced By: A3464310440
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
BRACKET , Replaced By: A3875205841
999
HOSE FROM AIR CLEANER TO CLEAN AIR INTAKE PIPE
999
BRACKET , Replaced By: A6215280440
999
BOOT FROM AIR CLEANER TO INTAKE FITTING,5 946572
999
CLAMP BOOT TO INTAKE PIPE
999
BRACKET AIR CLEANER,REAR
999
BRACKET ,K 000843K 000844, Replaced By: A6555282340, +002N000961016009, +002N913004016004
999
BRACKET AIR CLEANER,REAR RIGHT
999
BOOT
999
ANTINOISE CAPSULE RIGHT FRONT
999
BRACKET ANTINOISE CAPSULE
999
SCOOP RIGHT FRONT WHEEL ARCH
999
SCOOP RIGHT FRONT WHEEL ARCH
999
ANTINOISE CAPSULE RIGHT FRONT
999
AIR INTAKE PIPE
999
ANTINOISE CAPSULE RIGHT CENTRAL
999
BRACKET ANTINOISE CAPSULE
999
ENGINE HOOD RIGHT CENTRAL
999
ANTINOISE CAPSULE , Replaced By: A6525200104
999
ANTINOISE CAPSULE RIGHT FRONT WHEEL ARCH
999
BRACKET ANTINOISE CAPSULE
999
BRACKET ANTINOISE CAPSULE,LEFT
999
BRACKET ANTINOISE CAPSULE, TO BE ADAPTED DURING ASSEMBLY
999
HOSE FROM AIR CLEANER TO INTAKE FITTING
999
BRACKET MUFFLER TO SIDE MEMBER
999
BRACKET MUFFLER TO SIDE MEMBER
999
MUFFLER AIR CLEANER
