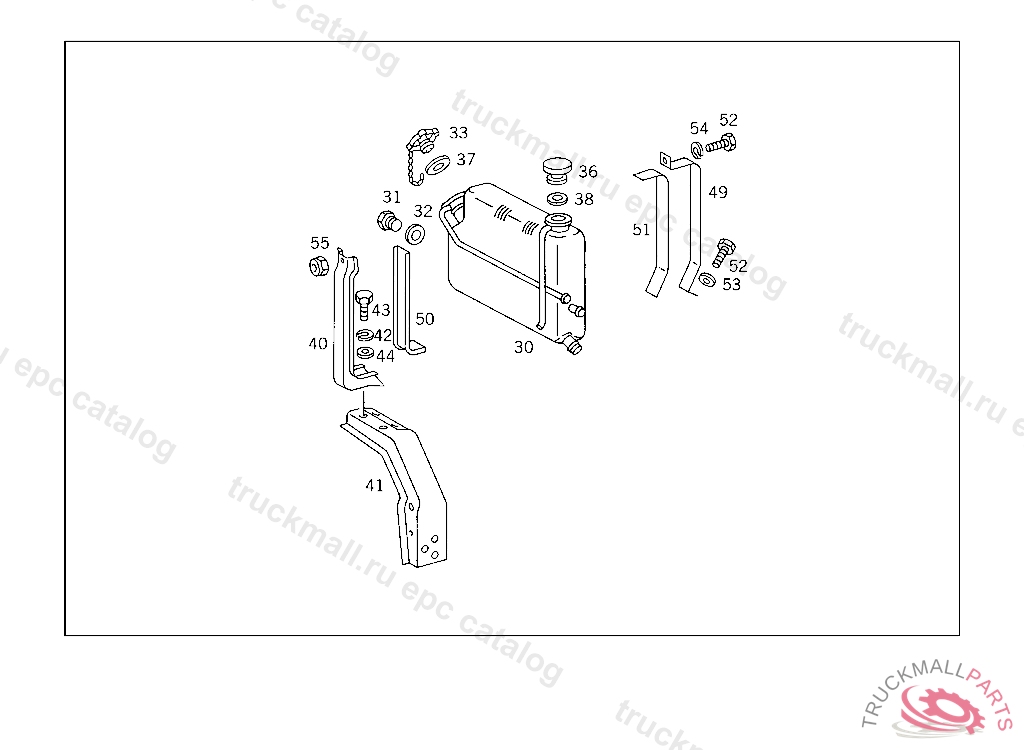

Поз.
Артикул
Описание
30
TANK
30
TANK , Replaced By: A3815000849
33
RADIATOR CAP FILLER NECK
33
RADIATOR CAP FILLER NECK
36
RADIATOR CAP
37
GASKET O.D., 52 MM
38
GASKET O.D., 37 MM
40
BRACKET EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
40
BRACKET EXPANSION TANK
40
BRACKET , Replaced By: A6155010020
42
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
43
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
43
SCREW , Replaced By: N304017010028
44
WASHER BRACKET TO RIGHT FENDER, 415 5 014668 416 5 000515 417 4 972023
49
BRACKET (STRAP), 415 5 014668 416 5 000515 417 4 972023
49
BRACKET EXPANSION TANK
49
BRACKET , Replaced By: A3815012720
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
50
PAD , Replaced By: A3634750220
51
SHIM STRAP, 415 5 014668 416 5 000515 417 4 972023
51
SHIM , Replaced By: A3815010495
51
SHIM , Replaced By: A3815010295
52
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
WASHER BRACKET TO RIGHT FENDER, 415 5 014668 416 5 000515 417 4 972023
54
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
55
NUT STRAP TO BRACKET
55
NUT , Replaced By: N910113010000
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A3609951201
999
CLAMP , Replaced By: A3609950601
999
SHIM RUBBER MOUNTING TO BRACKET
999
SUPPORT RADIATOR MOUNTING,4 242404
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET , Replaced By: A3855010220
999
BRACKET , Replaced By: A6454310740
999
BRACKET FUEL LINE TO BELL HOUSING
