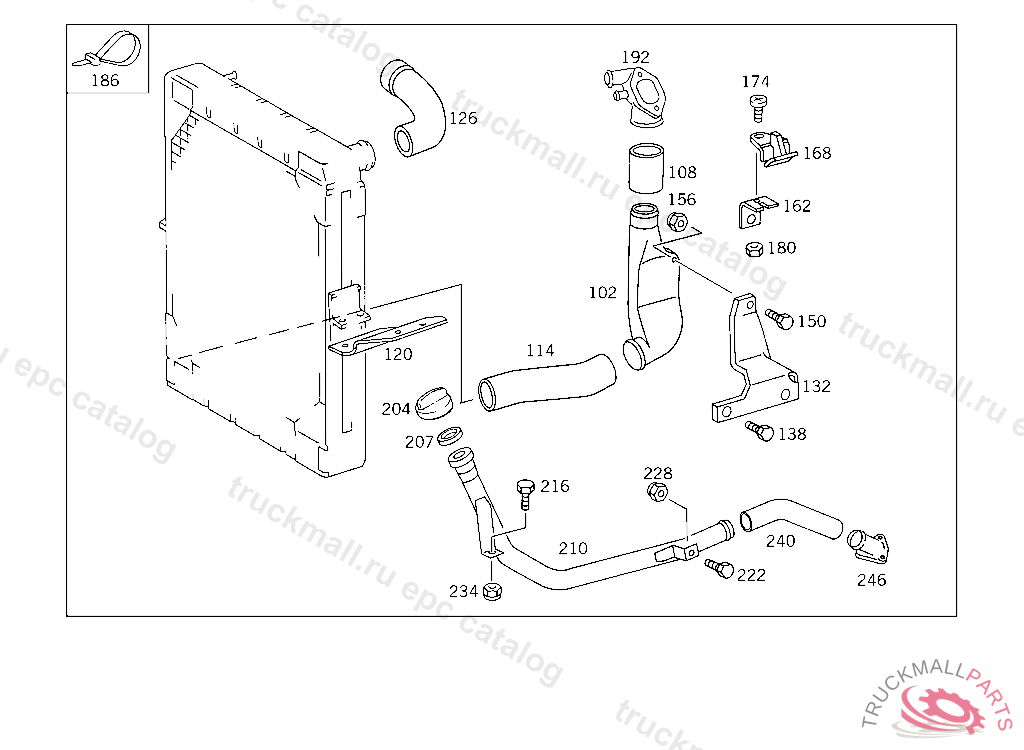

Поз.
Артикул
Описание
102
PIPE ELBOW AT WATER PUMP,5 193594
102
PIPE ELBOW , Replaced By: A6205010056
108
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
114
HOSE CONNECTOR TO WATER PUMP
114
HOSE CONNECTOR TO WATER PUMP
120
SUPPORT RADIATOR,LEFT,K 096749
120
SUPPORT RIGHT
126
HOSE FROM RADIATOR TO THERMOSTAT
132
BRACKET PIPE BEND TO CYLINDER CRANKCASE
138
SCREW BRACKET TO CAB MOUNTING CONSOLE
150
SCREW SUPPORT TO CROSS MEMBER M 10X28
150
SCREW PIPE BEND TO BRACKET
156
NUT STRAP TO BRACKET
156
NUT , Replaced By: N910113010000
162
BRACKET , Replaced By: A6205463543
162
BRACKET CABLE HARNESS MOUNTING
168
BRACKET , Replaced By: A0005462243
168
BRACKET CABLE HARNESS MOUNTING
174
SCREW CONTROL UNIT TO CAB
180
NUT TWO-WAY VALVE TO BRACKET
186
LOOM TIE LINE MOUNTING
192
CONNECTOR
192
CONNECTOR
192
CONNECTOR
204
CAP OIL REFILLING
204
CAP OIL REFILLING
204
CAP OIL REFILLING
207
GASKET
207
GASKET , Replaced By: A1020180380
210
PIPE ELBOW
216
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
222
SCREW , Replaced By: N308676012012
222
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
228
NUT SUPPORT TO SIDE MEMBER
234
NUT STRAP TO BRACKET
234
NUT , Replaced By: N910113010000
240
HOSE , Replaced By: A3875280582
240
HOSE FROM OIL FILLER NECK TO OIL PAN
246
OIL FILLER NECK
999
CLAMP , Replaced By: N916017011000
999
AIR BAFFLE
999
RADIATOR , Replaced By: A3855010401
999
PIPE ELBOW , Replaced By: A6205010056, +001A6205010020
999
BRACKET , Replaced By: A6205010020, +001A6205010156
999
AIR BAFFLE RADIATOR
999
AIR BAFFLE RADIATOR,4 367399 FOR USE WITH MERCEDES-BENZ CAB
999
AIR BAFFLE FAN SHROUD
999
AIR BAFFLE RADIATOR, 415 5 014668 416 5 000515 417 4 972023
999
AIR BAFFLE
