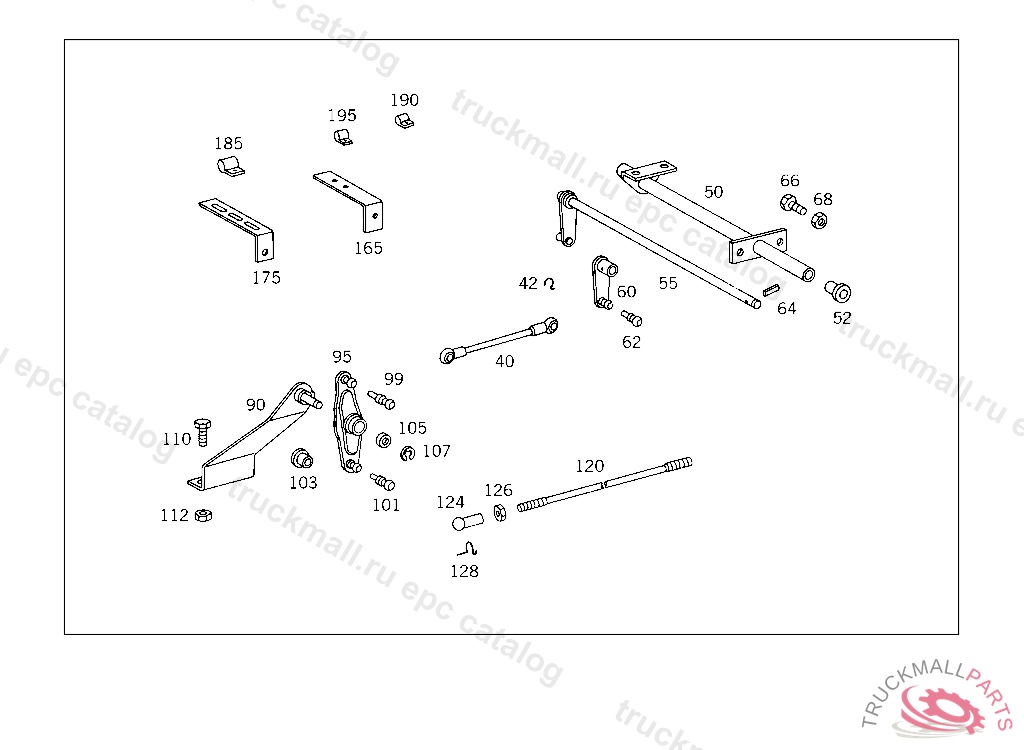

Поз.
Артикул
Описание
40
BALL SOCKET ROD TO ACCELERATOR PEDAL
42
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
50
BEARING TUBE CONTROL SHAFT,5 151594
50
BEARING TUBE ,5 151593, Replaced By: A6153000021, +001A6153000020
52
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
55
SHAFT CONTROL,5 151594
55
SHAFT ,5 151593, Replaced By: A6153000020, +001A6153000021
60
LEVER (CONTROL LEVER)
62
BALL PIVOT
64
CLAMPING SLEEVE , Replaced By: N308752004001
64
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
66
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
66
SCREW , Replaced By: N304017008016
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
NUT , Replaced By: N913004008001
90
BEARING BRACKET ,5 290094, Replaced By: A6203000436, +002A6153010088
90
BEARING BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A6203000336
90
BEARING BRACKET INTERMEDIATE LEVER
90
BEARING BRACKET INTERMEDIATE BEARING
95
LEVER , Replaced By: A3813000728
95
LEVER , Replaced By: A6153000628
95
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
95
LEVER INTERMEDIATE BEARING
95
LEVER , Replaced By: A6203000928, +002A6153010088
95
LEVER (INTERMEDIATE LEVER)
99
BALL PIVOT , Replaced By: A3129910120
99
BALL PIVOT LEVER
101
BALL PIVOT BOTTOM B13X5 MM
103
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
105
COVERING , Replaced By: A6153010088
105
COVERING INTERMEDIATE BEARING
105
SEAL WASHER , Replaced By: A3813010388
107
LOCK PLATE INTERMEDIATE BEARING
110
SCREW END PIECE TO EXHAUST PIPE M 10X25
112
NUT , Replaced By: N910113010000
112
NUT STRAP TO BRACKET
120
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
120
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
124
BALL SOCKET ROD TO BALL PIVOT
124
BALL SOCKET ROD TO BALL PIVOT
126
NUT
128
SECURING CLIP. CIRCLIP
165
BRACKET , Replaced By: A3833020840
165
BRACKET CABLE,4 345193
165
BRACKET WIRE CABLE TO FIRE WALL, 415 5 014668 416 5 000515 417 4 972023
165
BRACKET , Replaced By: A3833020840
175
BRACKET , Replaced By: A3833020540
175
BRACKET CABLE HARNESS MOUNTING
175
BRACKET FROM AIR COMPRESSOR TO PRESSURE REGULATOR
185
CLAMP LINE MOUNTING
185
CLAMP DELIVERY AND SUCTION LINES TO STEERING
185
CLAMP , Replaced By: A6739950001
190
CLAMP , Replaced By: A3604300143
190
CLAMP , Replaced By: N916016008200
190
CLAMP ,K 147121, Replaced By: N000000000319
195
CLAMP , Replaced By: N916016008200
195
CLAMP , Replaced By: A3604300143
195
CLAMP ,K 147121, Replaced By: N000000000319
999
GROMMET
999
ACCELERATOR PEDAL , Replaced By: A3813000104
999
LEVER , Replaced By: A3813000104
999
GUIDE MANUAL CONTROL
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014668 416 5 000515 417 4 972023
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N304017006020
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
999
SHEET METAL SCREW , Replaced By: N914031005208
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW LICENSE PLATE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
